Istec VibSys® – Vibration Monitoring & Cloud Gateway
Bring continuous machine-condition data into your maintenance workflow with the Istec VibSys A01. This compact, four-channel system connects vibration sensors with local monitoring and Istec Sphere analysis, helping industrial maintenance teams identify developing problems and plan intervention with better evidence.
Key Benefits
- Continuous insight: Follow changes in machine behaviour under operating conditions to support predictive maintenance.
- Compact installation: Position the DIN-rail module close to the asset to reduce sensor cabling.
- Local and connected monitoring: Use local interfaces and Modbus TCP for plant integration, with a direct connection to Istec Sphere for analysis.
- Scalable coverage: Interconnect units as the number of monitored measurement points grows.
Applications
The A01 datasheet identifies balance-of-plant equipment, pumps, compressors and fans as current applications. Select sensors and installation arrangements for the machine and measurement task.
Technical Specifications – A01
| Vibration inputs | 4 channels; direct connection of 2-wire IEPE accelerometers, 100 mV/g |
|---|---|
| Acquisition | 24-bit A/D; 48 kHz sampling; 0.2 Hz–20 kHz input bandwidth |
| Data processing | Up to 32 predefined extractions per channel |
| Additional inputs | 2 analogue inputs (4–20 mA or 0–30 V); 1 speed input and 1 status/reset input |
| Outputs | 2 SPST relays; 4 active 4–20 mA outputs |
| Connectivity | Dual RJ45 Ethernet; Modbus TCP; HTTPS; Istec Sphere connection |
| Power | 24 VDC nominal (18–31.2 VDC), or PoE; consumption ≤10 W |
| Mounting / dimensions | 35 mm DIN rail; 45 × 127 × 114 mm |
| Environment | IP20; −20 to +60 °C operating temperature; indoor installation or protective enclosure |
First Edition A01 & Firmware Expansion
This listing covers VibSys First Edition (A01). Istec states that A01 provides the core hardware and feature set so users can start now and expand capability through firmware updates without hardware replacement. Additional firmware features will extend onboard data processing and automation capabilities over time.
Functions marked future in the current A01 datasheet are not represented as available today. Examples include the second speed input, external API connections, MQTTS and CAN-bus. M40 is shown separately in Istec roadmap/application material and should not be interpreted as the hardware supplied with this A01 listing.
Ordering Information
Sales unit: 1 VibSys A01 unit. Confirm the manufacturer order code, supply availability and delivery schedule with OEM NORDIC before ordering. Sensor selection, accessories, commissioning and any Istec Sphere subscription or licence requirements must be agreed for the application; inclusion of these items is not specified.
Official Documentation

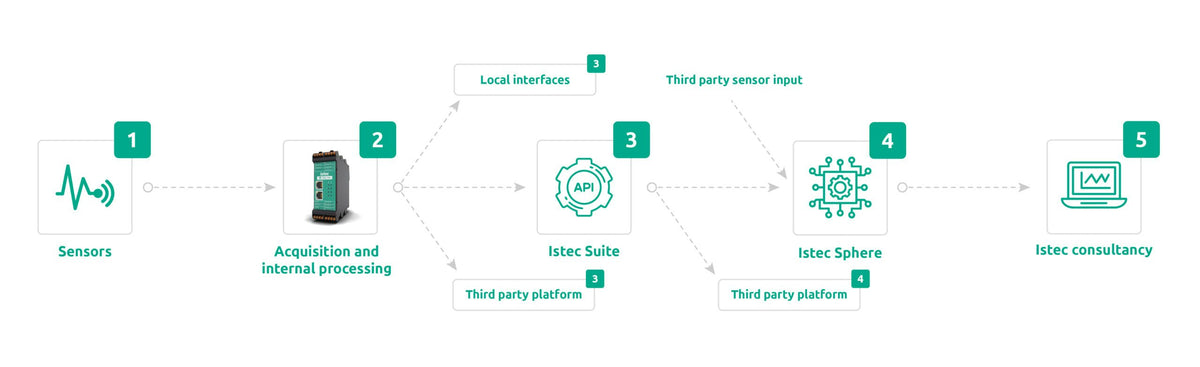

How your VibSys A01 system connects
This diagram covers First Edition A01. Eddy-current inputs and other future M40 functions are not shown as current A01 capabilities. Check Istec’s release roadmap.
