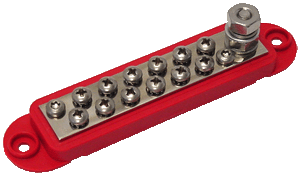

VTE 12-point busbars provide a compact distribution point for marine, vehicle and industrial DC systems. Both configurations offer twelve branch connections and a 180 A continuous rating at 12 V DC. Choose the bare busbar for installations with separate protection, or the complete kit when a cover and terminal insulator should be included.
Compare the 12-point options
Series
Configuration
Included protection
Colours
7712
12-point busbar
None
Red or black
71225
12-point busbar kit
312 Series cover and 218 Series terminal insulator
Red or black
Shared electrical ratings
180 A maximum continuous at 12 V DC
15 A continuous per branch connection
20 A intermittent per connection for less than one minute
48 V DC maximum
Twelve #8-32 stainless-steel screw connections
One 1/4-inch stainless-steel main terminal post
Selection guidance
Select the 7712 Series when the installation already provides suitable terminal protection or when access must remain open. Select the 71225 Series kit for an integrated covered assembly. Red and black versions are colour choices of the same electrical configuration; the exact VTE part number is shown in every product option.
