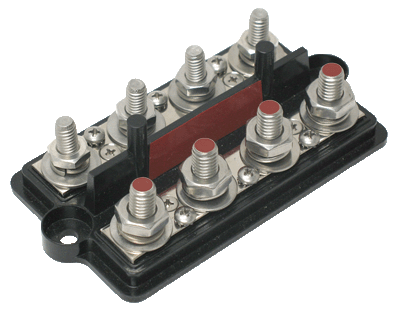

Dual 4-point busbars place positive and negative distribution points on one compact base. They are useful where several high-current cables and smaller branch connections must be organized while keeping the two polarities clearly separated.
Available configuration
| Part number |
Positive posts |
Negative posts |
Rating |
| 738834N0N14 |
3/8 in |
5/16 in |
250 A total at 12 V DC |
Key features
- Separate positive and negative nickel-plated brass contact plates
- Three additional 15 A screw connections per side
- 48 V DC maximum system voltage
- Black glass-filled nylon base
- 4.9-inch mounting centres
Selection guidance
The stocked 738834N0N14 model follows VTE’s recommended mixed-post arrangement: 3/8-inch positive posts and 5/16-inch negative posts. The optional 738N3P05 cover is sold separately and is not included with the busbar.
