VTE 7712 Series 12-Point 180 A DC Busbar
We accept a variety of trusted payment methods.
No se ha podido cargar la disponibilidad de recogida
Got questions?
Feel free to get in touch
...or just ask an expert!
The VTE 7712 Series is a compact 12-point DC busbar for organized low-voltage power distribution. It provides twelve #8-32 stainless-steel screw connections and one 1/4-inch main terminal post on a glass-filled nylon base.
Choose the correct model
| Colour | Manufacturer part number |
|---|---|

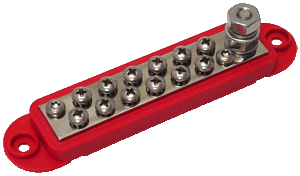

| Red | 7712N0N02 |

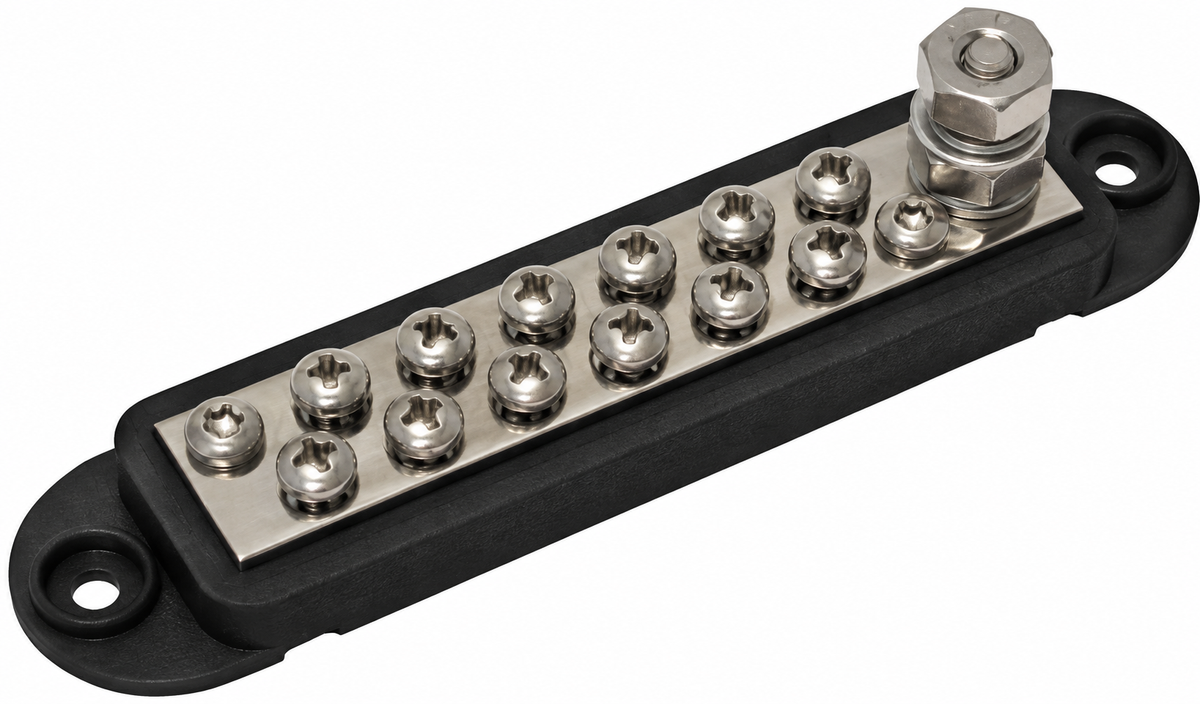

| Black | 7712N0N14 |
Technical specifications
- 12 connection points with #8-32 stainless-steel screws
- 180 A maximum continuous at 12 V DC
- 15 A continuous per connection
- 20 A intermittent per connection for less than one minute
- 48 V DC maximum
- One 1/4-inch stainless-steel terminal post
- Stainless-steel nuts and lock washer
- Glass-filled nylon base
- 4.66-inch mounting centres
- #10 mounting screws are not included
This version is supplied without a cover or terminal insulator. Choose the VTE 71225 Series kit when those protective parts should be included.
Supplier lead time is typically 5–8 working days when available from stock; replenishment can take up to 8 weeks. Contact OEM Nordic to confirm availability.
