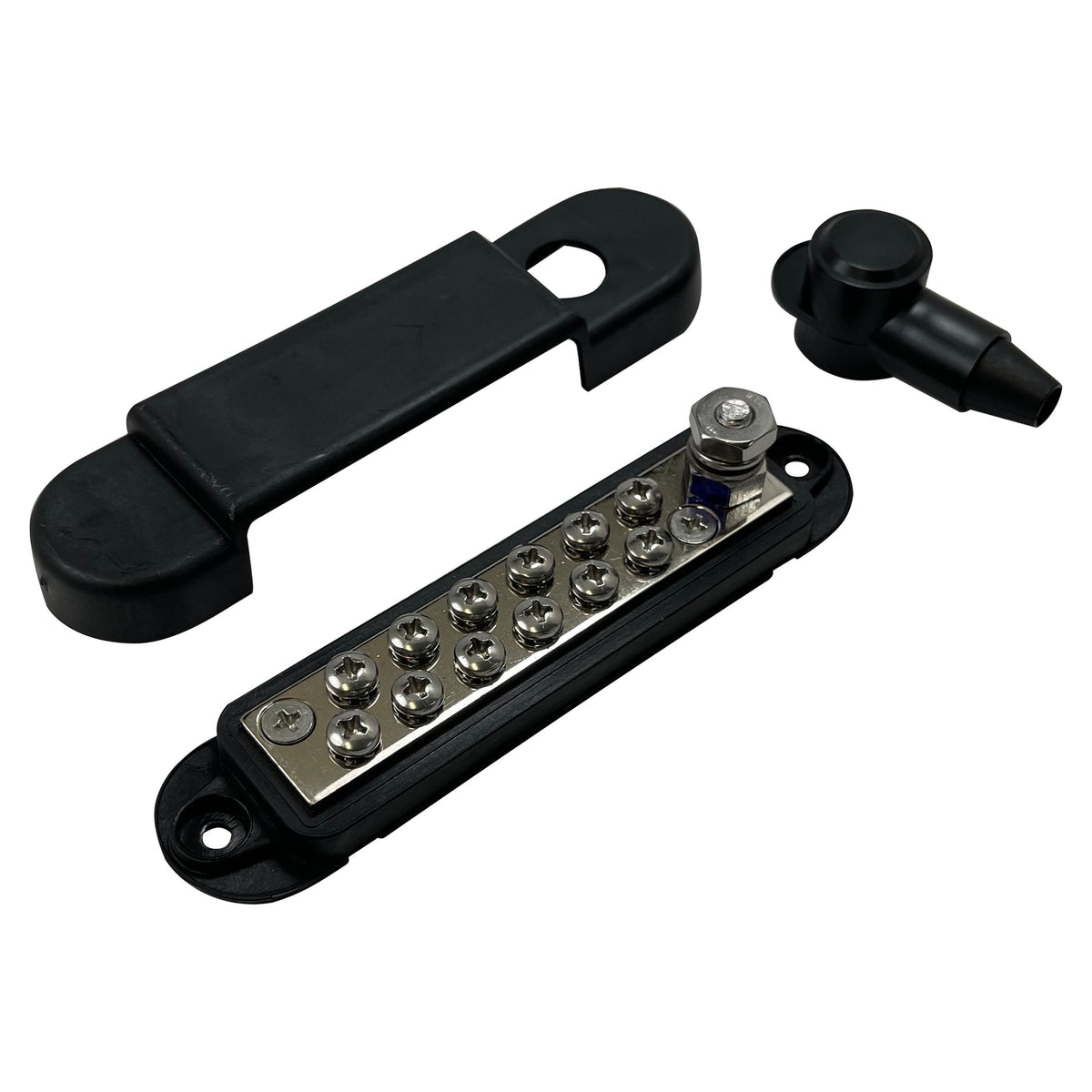

VTE 71225 Series 12-Point 180 A Busbar Kit with Cover & Insulator
We accept a variety of trusted payment methods.
No se ha podido cargar la disponibilidad de recogida
Got questions?
Feel free to get in touch
...or just ask an expert!
The VTE 71225 Series kit combines a 12-point DC busbar with a 312 Series protective cover and a 218 Series terminal insulator. It is suited to installations where an organized distribution point and included terminal protection are required.
Choose the correct model
| Colour | Manufacturer part number |
|---|---|
| Red | 71225N02 |
| Black | 71225N14 |
Technical specifications
- 12 connection points with #8-32 stainless-steel screws
- 180 A maximum continuous at 12 V DC
- 15 A continuous per connection
- 20 A intermittent per connection for less than one minute
- 48 V DC maximum
- One 1/4-inch stainless-steel terminal post
- Stainless-steel nuts and lock washer
- Glass-filled nylon base
- 4.66-inch mounting centres
- #10 mounting screws are not included
Included in the kit
- 7712 Series 12-point busbar
- 218 Series terminal insulator
- 312 Series protective cover
When installed with its insulator, the assembly is designed to support the manufacturer’s cited USCG 33 CFR Subpart I, SAE J2120 section 8.5 and ABYC E-9.4 H requirements. Confirm suitability for the complete installation.
Supplier lead time is typically 5–8 working days when available from stock; replenishment can take up to 8 weeks. Contact OEM Nordic to confirm availability.
