VTE 74008N1 Large 4-Point 225 A Busbar, M8, with Cover

The VTE 74008N1 Large 4 Point busbar is built for secure high-current DC distribution with M8 stainless-steel connection posts. It is rated to 225 A at 12 V DC and 48 V DC maximum. This version includes the matching VTE 723 Series protective cover and retaining nuts.

Technical features

• Four M8 stainless-steel connection posts
• 225 A maximum at 12 V DC
• 48 V DC maximum system voltage
• Nickel-plated brass contact plate for conductivity and corrosion resistance
• Stainless-steel nuts and washers
• 16% glass-filled nylon base
• 5.7-inch mounting centres
• #10 mounting screws required; screws are not included

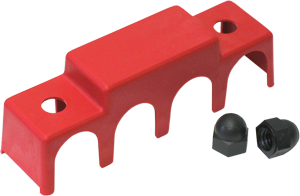

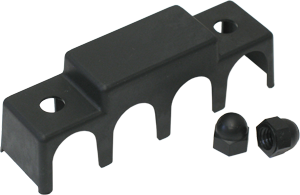

• Matching 723 Series protective cover and retaining nuts included

Available models

Selection guide

Choose this model when the cable lugs require M8 posts and the installation needs a 225 A rating at 12 V DC. The included cover helps protect conductive areas from accidental contact. Product photos show the shared Large 4 Point form; use the manufacturer drawing to confirm the exact stud dimensions.

Supplier lead time is typically 5–8 working days when available from stock; replenishment can take up to 8 weeks. Contact OEM Nordic to confirm availability.

View manufacturer family information
