VTE 74008N0 Large 4-Point 225 A Busbar, M8
We accept a variety of trusted payment methods.
No se ha podido cargar la disponibilidad de recogida
Got questions?
Feel free to get in touch
...or just ask an expert!
The VTE 74008N0 Large 4 Point busbar is built for secure high-current DC distribution with M8 stainless-steel connection posts. It is rated to 225 A at 12 V DC and 48 V DC maximum. The protective cover is optional and sold separately.
Technical features
- Four M8 stainless-steel connection posts
- 225 A maximum at 12 V DC
- 48 V DC maximum system voltage
- Nickel-plated brass contact plate for conductivity and corrosion resistance
- Stainless-steel nuts and washers
- 16% glass-filled nylon base
- 5.7-inch mounting centres
- #10 mounting screws required; screws are not included
- Optional 723 Series cover available separately
Available models
| Colour | VTE part number | Drawing |
|---|---|---|

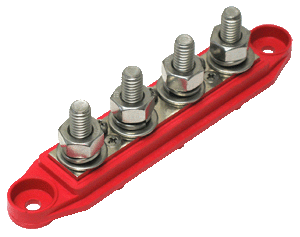

| Red | 74008N0N02 | |

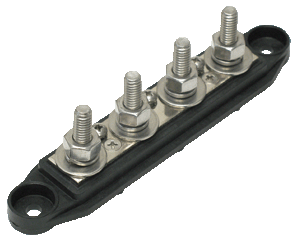

| Black | 74008N0N14 |
Selection guide
Choose this model when the cable lugs require M8 posts and the installation needs a 225 A rating at 12 V DC. Select the covered version when the installation requires additional protection over the live connections. Product photos show the shared Large 4 Point form; use the manufacturer drawing to confirm the exact stud dimensions.
Supplier lead time is typically 5–8 working days when available from stock; replenishment can take up to 8 weeks. Contact OEM Nordic to confirm availability.
