SpeedSys T11 1-channel speed monitor and switch, with display (Jaquet T411 replacement)

En existencia
MPN / Barcode:: ISTSSYT111
€949,99 EUR

..or just ask one of our experts

Chat Correo electrónico +358 45 490 4545

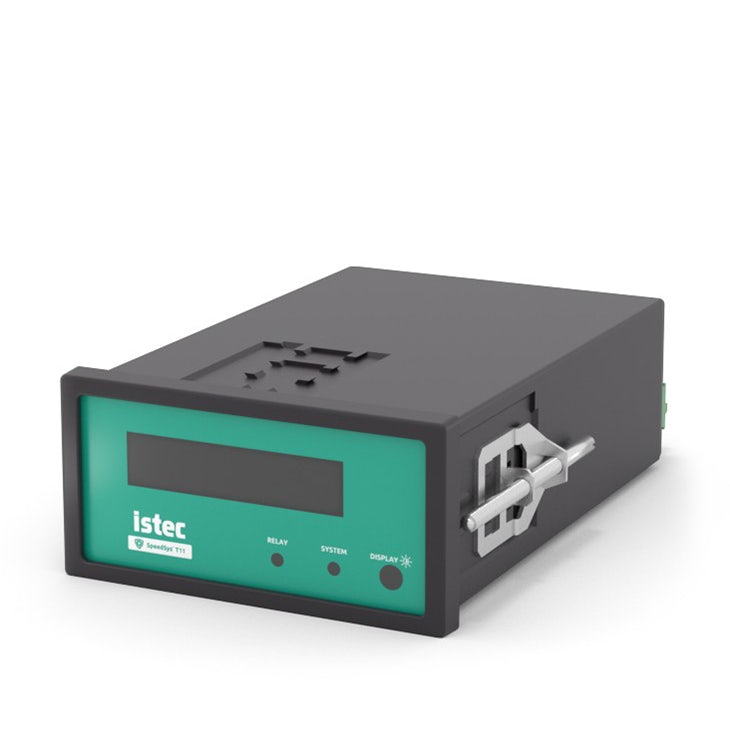

SpeedSys T11 – 1‑Channel Speed Monitor and Switch with Display

Functional replacement for Jaquet T411 and T412

The SpeedSys T11 is a modern, single‑channel speed monitoring and switching device designed to replace legacy Jaquet T411/T412 units. It provides accurate speed measurement, relay output for switching or alarm functions, and an integrated display for local monitoring.

Key Features

  • 1‑Channel Speed Monitoring – Measures rotational speed from a single sensor input.

  • Integrated Display – Real‑time speed readout for local monitoring and verification.

  • Sensor Compatibility – Works with 2‑wire passive (VR/MPU) and 3‑wire active (Hall‑effect/proximity) sensors.

  • Analog Output – High‑accuracy 4–20 mA output for PLC or control system integration.

  • Relay Output – 1× SPDT relay for overspeed/underspeed or alarm indication, fast response under 4 ms.

  • Diagnostic Functions – Monitors sensor health, detects open‑ or short‑circuits, and provides status indication.

  • Modern Configuration – Fully adjustable limits and parameters using onboard controls or digital interface.

  • Compact Industrial Design – Rugged housing for panel mounting, low power consumption, and wide operating temperature range.



Technical Summary

Specification

SpeedSys T11

Measurement Channels

1 (single‑channel)

Speed Range

Approx. 0.025 Hz to 35 kHz

Measurement Accuracy

±0.05 % for relay switching, ±0.1 % for analog output

Analog Output

4–20 mA, 16‑bit resolution

Relay Output

1× SPDT, fast response <4 ms

Supply Voltage

24 V DC (18–31 V), reverse‑polarity protected

Operating Temperature

−20 °C to +60 °C

Mounting

Panel‑mount or DIN‑rail compatible

Typical Applications

Turbines, compressors, motors, marine equipment, industrial automation





Benefits

  • Drop‑in replacement for Jaquet T411/T412 with modern electronics.

  • Fast, precise speed switching with integrated display.

  • Improved reliability and diagnostics for industrial and marine use.

  • Compact design for easy retrofit and integration.
