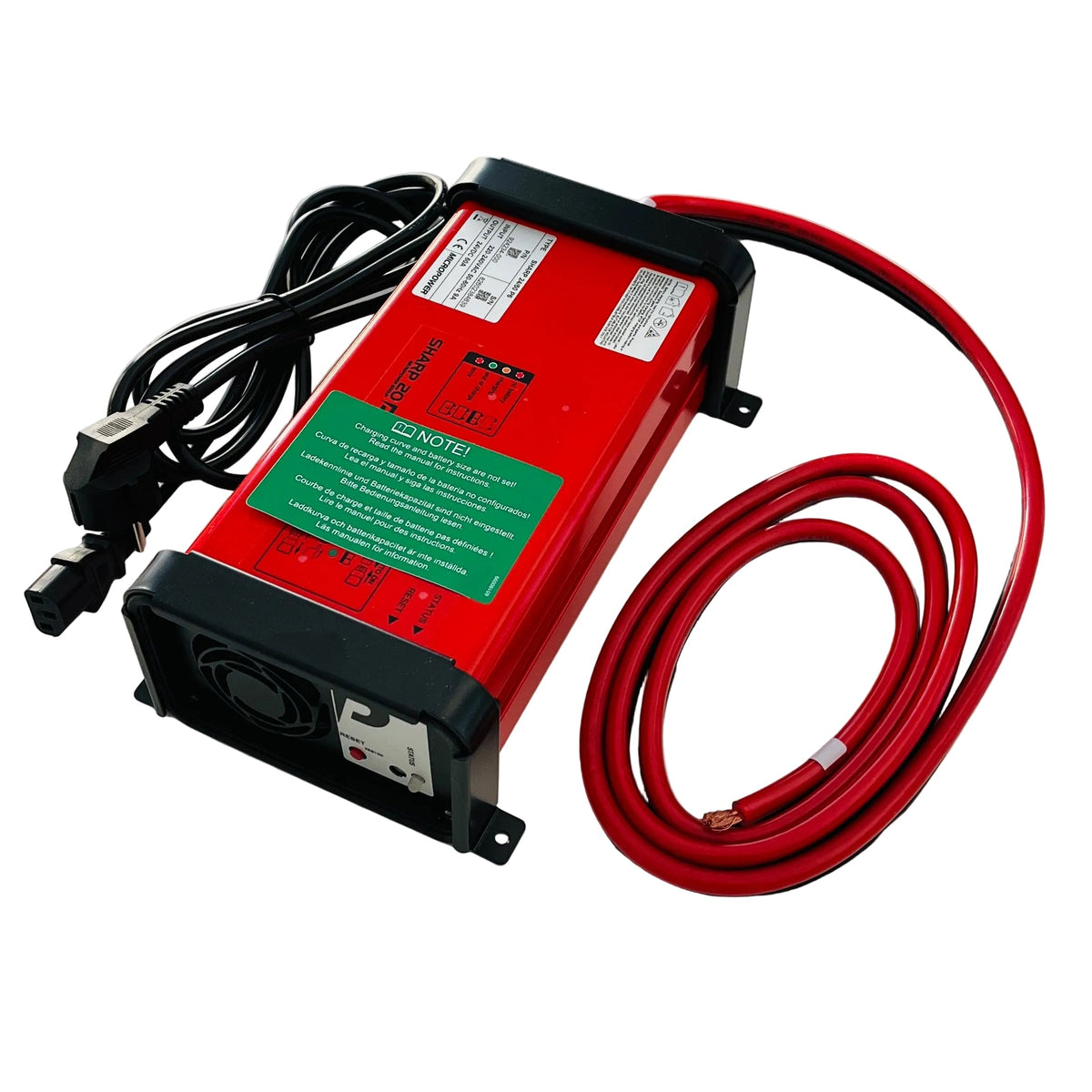

Micropower Sharp 20 24V/30A is a compact single-phase industrial battery charger designed for reliable charging in material handling, industrial vehicles and other professional battery applications. Its compact P4 enclosure is suitable for onboard installation.
Key features
- 24 V DC charging output
- 30 A output current
- 220–240 V AC, single-phase input
- IP20 enclosure
- Microprocessor-controlled charging
- Electronic protection against incorrect connection and short circuit
- Soft-start and automatic output limitation if cooling is insufficient
- Suitable for onboard installation
Technical specifications
| Manufacturer | Micropower |
| Series | Sharp 20 |
| Manufacturer part number | 924227 |
| Output voltage | 24 V DC |
| Output current | 30 A |
| Input voltage | 220–240 V AC |
| Phases | 1 |
| Input current at nominal voltage | 4.4 A |
| Recommended supply fuse | 10 A |
| Power consumption | 992 W |
| Ingress protection | IP20 |
| Shipping weight | 2 kg |
| Cabinet | P4 |
| Output cable | 2 × 6 mm², 2 m |
| Typical mains connector | 10 A Schuko |
Charging and safety
The integrated microcomputer controls the charging process using charging curves designed for industrial batteries. Charging status is indicated by LED: orange while charging, green when fully charged and flashing red if an error occurs. The charger requires battery counter-voltage to start and includes electronic protection against incorrect connection and short circuits.
Manufacturer documentation
Technical data, user documentation and available 3D models for the Sharp 20 series are available from Micropower.
