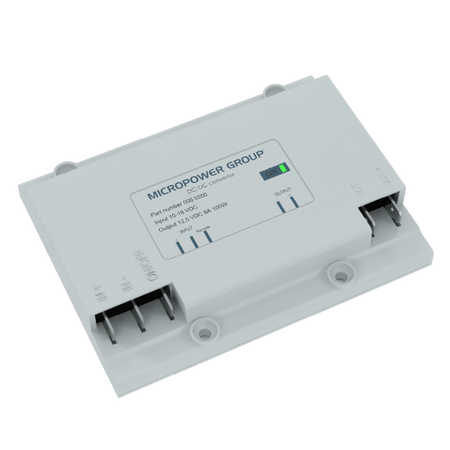

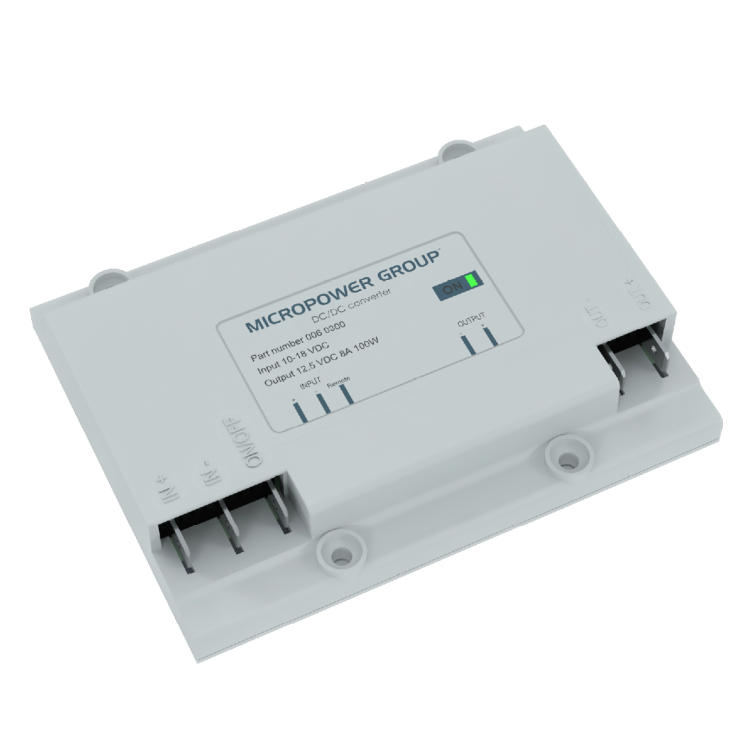

DC-DC Converter Non-Isolated 24 V to 12 V
This non-isolated DC-DC converter from Micropower Group is designed to step down a 24 V DC input to a stable 12 V DC output with high efficiency. It uses the latest switching technology to deliver excellent performance in industrial, mobile, and automotive environments with minimal power loss.
Key Specifications
-
Input Voltage: 18–36 V DC
-
Output Voltage: 12.5 V nominal (≈13.7 V actual)
-
Output Power: 400 W
-
Efficiency: >96 %
-
Ingress Protection: IP21 standard enclosure
-
Connections: 6.3 mm Fast-on terminals
-
Dimensions: 116 × 88 × 18 mm
-
Weight: ~0.2 kg
Main Features
-
High Efficiency: Designed with advanced switching technology for very high efficiency, resulting in cool operation and minimal power loss.
-
Non-Isolated Design: Efficient step-down conversion without isolation, suited for systems where isolation is not required.
-
Robust Protection: Internal protection against wrong polarity and short circuits to prevent damage from misuse.
-
Compact & Lightweight: Small footprint and light weight ideal for integration in tight spaces.
Protection Functions
- Reverse polarity protection to prevent damage on incorrect connection.
- Short-circuit protection for enhanced reliability.
- Overload protection under high load conditions.
Typical Applications
- Industrial automation power supplies
- Vehicle and mobile power systems
- Battery-powered machinery and equipment
- Telecommunications and remote power units
- Control panel and machine power conversion
Installation & Integration
- Fast-on terminal connections for straightforward installation.
- Compact size integrates easily into panels and mobile systems.
- Designed for reliable performance in industrial environments.
Note: This non-isolated DC-DC converter provides efficient and reliable 12 V DC power from a 24 V DC source with high efficiency and built-in protection — suitable for a wide range of industrial and automotive applications.
