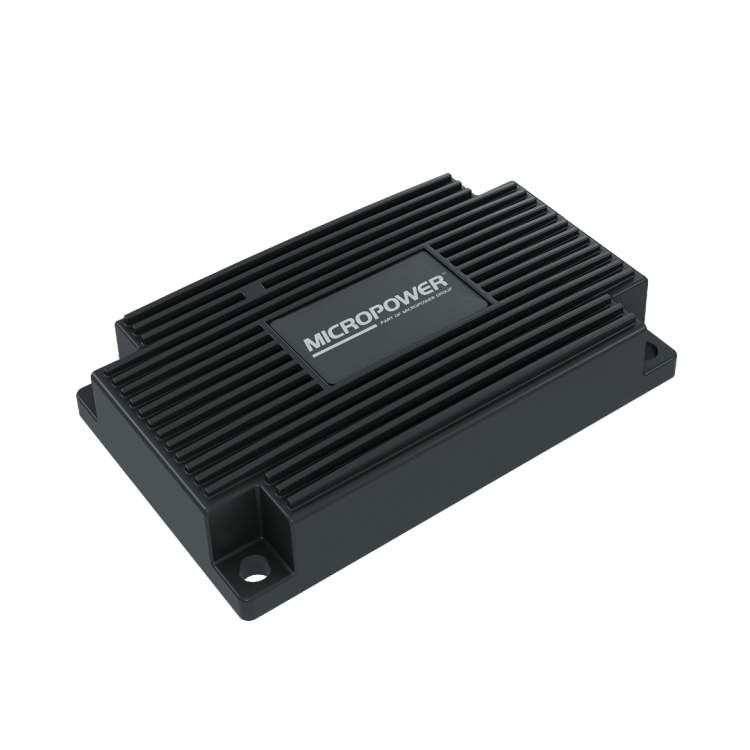

DC-DC Charger 24 V / 8 A (IP67)
This robust DC-DC charger from Micropower Group is designed to convert a wide DC input voltage into a stable 24 V DC output for battery charging and power applications. Built with high-efficiency technology and a fully sealed IP67 housing, it is suitable for automotive, industrial and outdoor use where reliable charging is required.
Key Specifications
- Input Voltage: 18–32 V DC (for 24 V systems)
- Output Voltage: 24 V DC
- Charging Current: 8 A
- Output Power: ~200 W
- Efficiency: >96 % typical
- Ingress Protection: IP67 waterproof enclosure
- Isolation: Galvanically isolated input to output
- Connections: Pre-wired cables (loose end)
- Dimensions: 150 × 93 × 31 mm
- Weight: Approximately 0.2 kg
Main Features
- IP67 Waterproof Housing: Fully sealed enclosure protects against dust and water ingress for demanding environments.
- High Efficiency: Advanced switching design reduces heat and maximizes efficiency above 96 %.
- Optimized Charging: Provides a controlled charging current ideal for 24 V lead-acid batteries including Standard, GEL/AGM, and Calcium types.
- Galvanic Isolation: Electrical separation between input and output for safety and reduced noise.
- Compact & Durable: Rugged aluminum housing built for industrial and mobile installations.
Protection & Safety
- Reverse Polarity Protection: Prevents damage if the input is connected incorrectly.
- Short-Circuit Protection: Enhances reliability under fault conditions.
- Overload Protection: Helps limit current under excessive load.
Typical Applications
- Automotive dual-battery charging systems
- Mobile and outdoor equipment power solutions
- Industrial battery charging and auxiliary power
- Caravans, campers, and trailers
- Backup power applications and off-grid systems
Installation & Integration
- Pre-wired input and output cables for quick and straightforward installation.
- Suitable for panel, chassis, or vehicle mounting where waterproof performance is needed.
- Compatible with various 24 V lead-acid battery types using correct charging profile.
Note: This IP67 DC-DC charger delivers a dependable 8 A charging current for 24 V battery systems with high efficiency and rugged protection — suitable for automotive, industrial, and outdoor applications.
