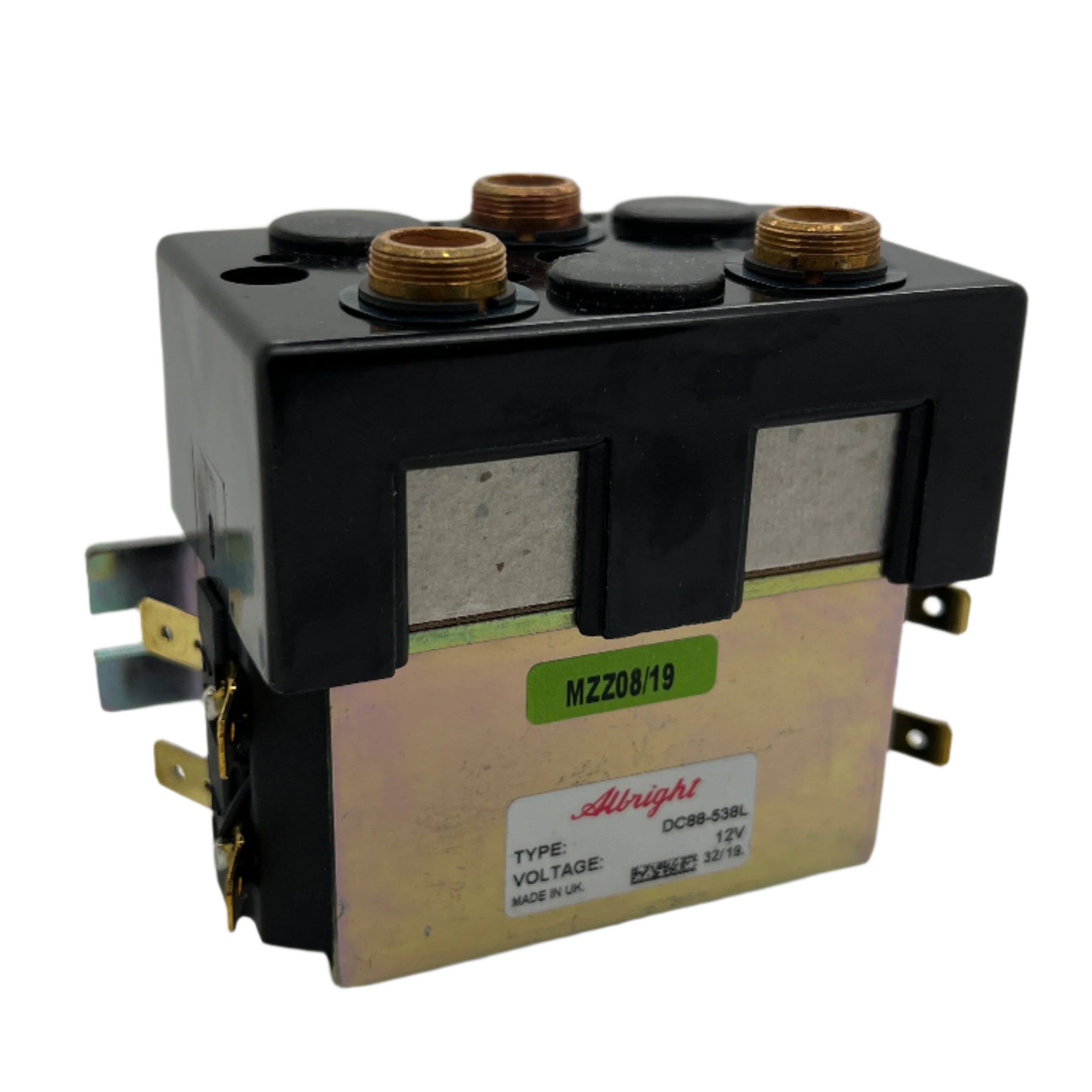

DC88-538L Albright 100A 12V DC Motor Reversing Solenoid Contactor INT (Identical to DC88-454L for example)

MPN: DC88-538L
(0)
€305,50
En existencia
Ships within 2 hours
Original Albright product

This is a genuine Albright product. All items sold are brand new and delivered in the manufacturer’s original, unopened packaging.

Free shipping available
100% secure payments
Industry leading quality

Got questions? Need a Quotation?

Feel free to get in touch

Ask an expert!

Correo electrónico +358 (0) 45 490 4545

About the DC88-538L Motor Reversing Solenoid Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.

The main contact circuit, designed for motor reversing, has a built-in failsafe, so that if both coils are energized simultaneously the contact arrangement is open circuit. Coil connections are by means of 6.3mm spades and mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards.

The unit has an integral bracket with no tapped holes. The top cover is reversed with the T contact and positive contact next to the bracket.
Bar contact is on the right.

Alternative of DC88-454L, which is identical
  • MPN DC88-538L
