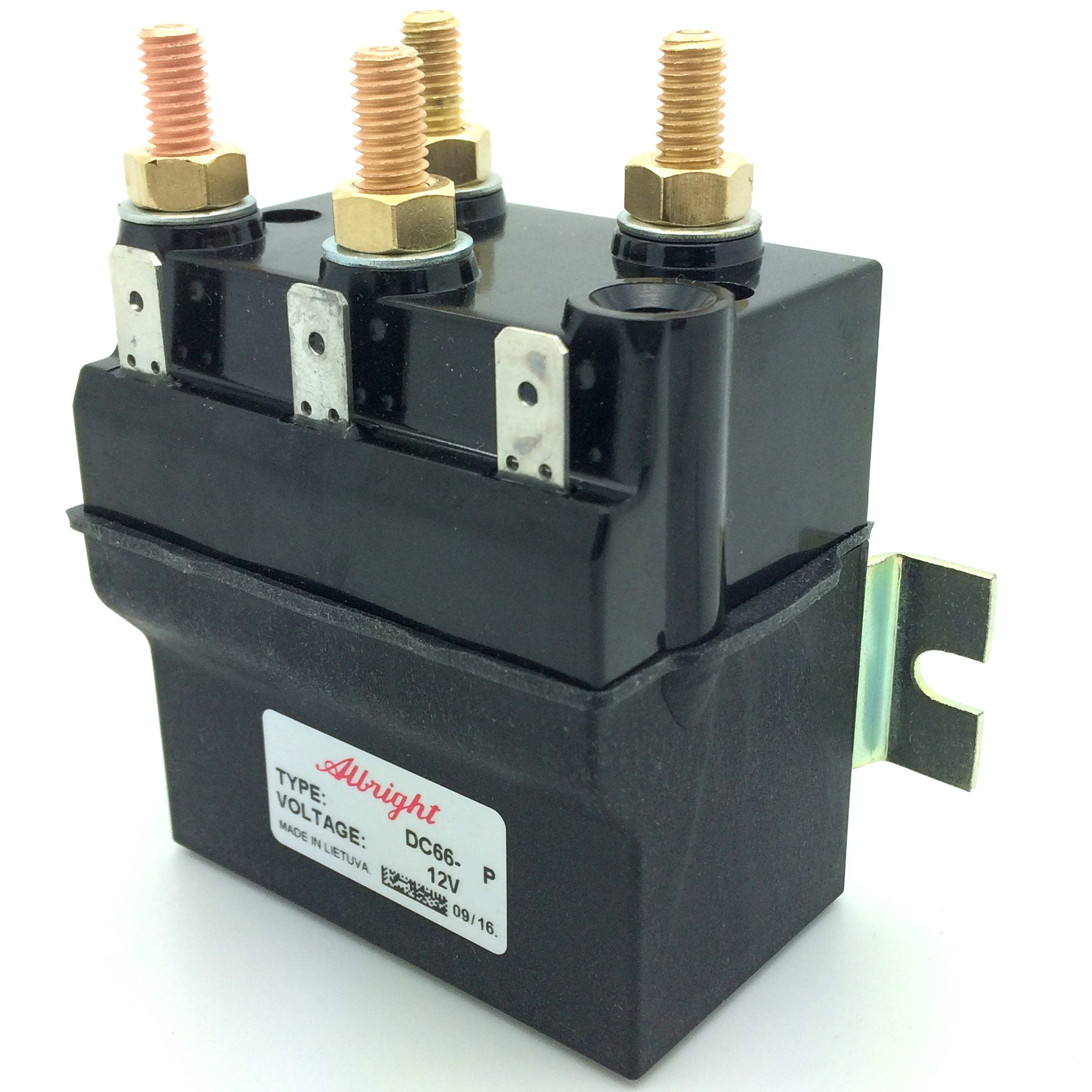

DC66-19P Albright 80A 12V DC Reversing Solenoid Very INT IP66
No se pudo cargar la disponibilidad para recoger
Current lead time is approximately weeks. We have incoming stock on the way for this item. You can reserve your quantity by placing a PRE-ORDER. We will contact you with the lead time after we receive your order and you have a chance to confirm or cancel order.
Additional Information
Very Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break much quicker than continuous solenoids and are not recommended for prolonged contact periods.
The main contact circuit has a built-in fail-safe, so that if both coils are energised simultaneously the contact arrangement is open circuit. The DC66P has double breaking main contacts with silver alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The DC66P has M6 main stud terminals and coil connections are by means of 6.3mm spades.
DC66-19P — Key Specifications
| Type | DC66-19P |
|---|---|
| Coil voltage | 12 INT DC |
| Coil resistance | 5.5 Ω |
| Pull-in voltage | ≤ 9.0 V |
| Drop-out voltage | ≤ 3.0 V |
| Coil power dissipation | 26.18 W |
| Additional features | Very intermittent coil, 10% duty cycle. |
| Reference temperature | All figures stated at 20 °C |
