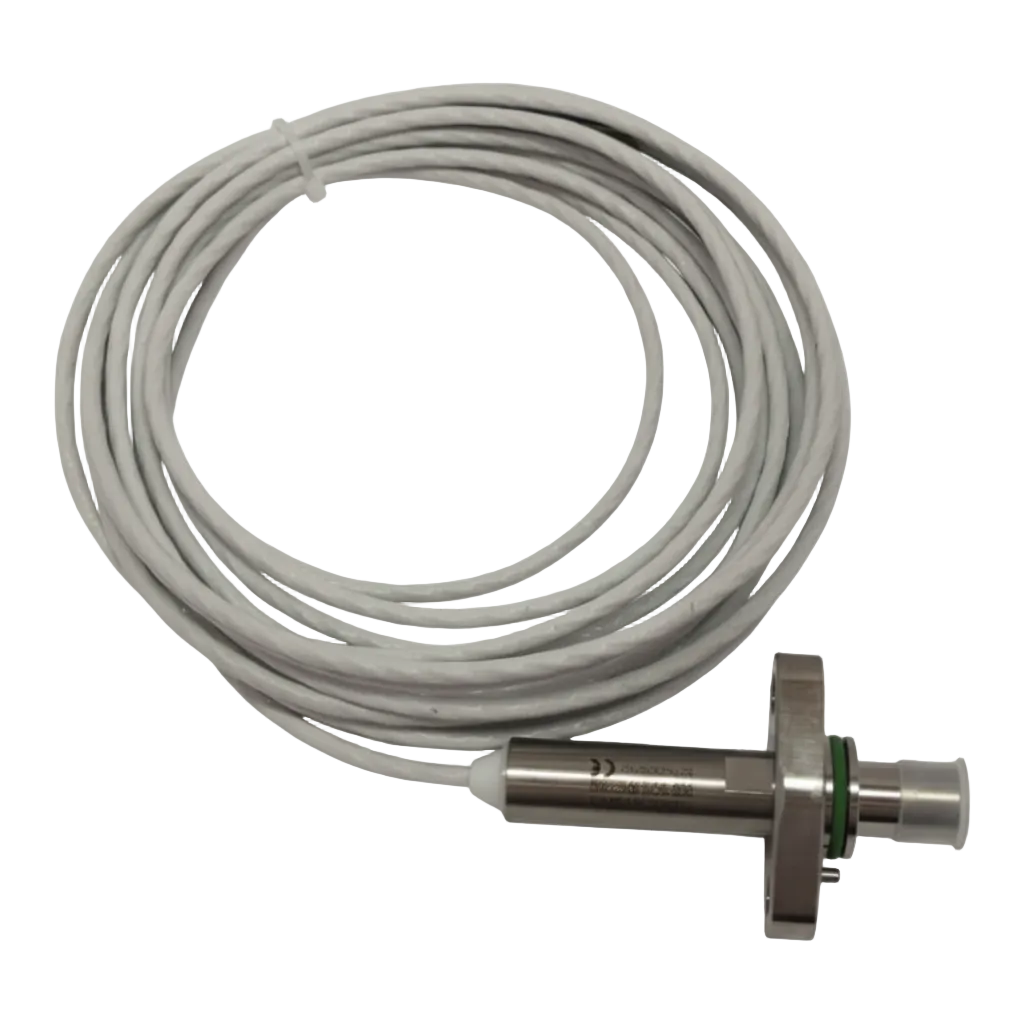

Genuine TE Connectivity / Jaquet DSD 1820.19 S22HW Differential Hall Effect Speed Sensor, manufacturer part number 3742608632. This rugged dual-channel sensor is designed for precise, contact-free rotational speed detection from a ferromagnetic pole wheel in demanding industrial and transportation applications.
The sensor produces two phase-shifted square-wave signals with a frequency proportional to rotational speed. Its static Hall-effect operating principle supports pulse generation down to 0 Hz, while the two output channels can also provide direction-related phase information to compatible control and monitoring equipment.
| Manufacturer | TE Connectivity / Jaquet |
|---|---|
| Model | DSD 1820.19 S22HW |
| MPN / product number | 3742608632 |
| Sensor type | Dual-channel differential Hall-effect speed sensor |
| Supply voltage | 9-30 VDC, with reverse-polarity and transient-overvoltage protection |
| Current consumption | Maximum 30 mA without load |
| Signal output | 2 phase-shifted push-pull square-wave signals |
| Output current | Maximum ±20 mA |
| Frequency range | 0 Hz to 20 kHz |
| Minimum phase shift | 20° with the specified involute gear wheel |
| Recommended pole wheel | Magnetically permeable involute gear, module 2 |
| Recommended air gap | 0.1-1.5 mm |
| Housing material | Stainless steel 1.4305 |
| Protection class | IP68 sensor head; IP67 cable outlet |
| Operating temperature | -40°C to +125°C |
| Cable | Jaquet 824L-36222, 6 m, screened white FEP, 4-wire (white conductor not connected) |
| Cable conductor size | 0.6 mm² / AWG 20 |
| Cable outside diameter | Maximum 4.7 mm |
| Minimum cable bend radius | 24 mm |
| Cable temperature range | -60°C to +150°C |
| Electrical insulation | Housing and electronics galvanically separated; 500 V / 50 Hz / 1 min |
| Vibration immunity | EN 61373 Category 3; 300 gn peak, 5-500 Hz random noise, 5 hours per axis |
| Shock immunity | EN 61373 Category 3; 100 g for 6 ms |
| Drawing number | 120404 |
The DSD 1820.19 S22HW is an oriented dual-channel sensor and must be installed in the correct position relative to the pole wheel. For best performance, use a magnetically permeable involute gear wheel with module 2, tooth width greater than 10 mm, side offset below 0.2 mm and eccentricity below 0.2 mm. Maintain an air gap of 0.1-1.5 mm and use a solid, vibration-free mounting.
Route the screened sensor cable away from power cables and large electrical machines. Electrical connection must follow the applicable sensor drawing. Installation should be performed by qualified personnel.
Please verify the full model number and MPN before ordering: DSD 1820.19 S22HW / 3742608632.
