Large four-point busbars provide robust DC power distribution for heavier cables and higher current loads. The VTE range uses a nickel-plated brass contact plate, stainless-steel hardware and a glass-filled nylon base for marine, vehicle, battery and industrial installations.
Compare the available models
| Series |
Post size |
Maximum at 12 V DC |
Cover |
| 74008N0 |
M8 |
225 A |
Not included |
| 74008N1 |
M8 |
225 A |
Included |
| 74010N0 |
M10 |
250 A |
Not included |
| 74010N1 |
M10 |
250 A |
Included |
Every model is available in red and black. The covered versions include the matching VTE 723 Series cover and retaining nuts.
Shared construction
- 48 V DC maximum system voltage
- Nickel-plated brass contact plate
- Stainless-steel connection posts, nuts and washers
- 16% glass-filled nylon base
- 5.7-inch mounting centres
- #10 mounting screws required; screws are not included
How to choose

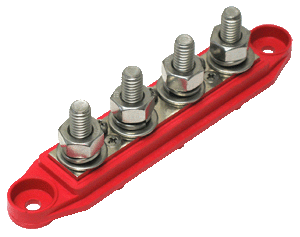

Match the post size to the cable lug first, then select the required current rating and whether the installation needs an included cover. Finally choose red or black and confirm the exact VTE part number on the product page. Product photos show the shared family form; the linked manufacturer drawing gives exact stud dimensions for each model.
