OEM NORDIC - Quality Parts Distribution

PUR/PP C Plus Signal Cable - Grey (4x0,34) ST UL/CSA

MPN: 40355564
(0)
€17,00
€17,00 m
In stock
We also have incoming stock of this OEM NORDIC - Quality Parts Distribution part in the next 7 days.
Original OEM NORDIC - Quality Parts Distribution product

This is a genuine OEM NORDIC - Quality Parts Distribution product. All items sold are brand new and delivered in the manufacturer’s original, unopened packaging.

Free shipping available
100% secure payments
Industry leading quality

Got questions? Need a Quotation?

Feel free to get in touch

Ask an expert!

Email +358 (0) 45 490 4545

High Quality Signal Cable (suitable for fixed and chain system installations)
4 wires, 0,34mm

For Indoor & Outdoor use

The PUR/PP C Plus Signal Cable is a high-quality multi-core signal cable designed for demanding industrial environments. With a robust PUR (polyurethane) outer sheath and PP (polypropylene) insulation, it provides excellent resistance against abrasion, oils, chemicals, and mechanical stress.

These cables are widely used as sensor and signal transmission cables in automation, robotics, and machinery. Thanks to their flexibility and durability, they are also suitable for control systems, measurement equipment, conveyor technology, production lines, and applications with continuous movement.

Engineered for reliability, the PUR/PP C Plus Signal Cable ensures secure data and signal transmission even in harsh conditions, making it an ideal choice for factory automation, sensor integration, and dynamic cable chains.

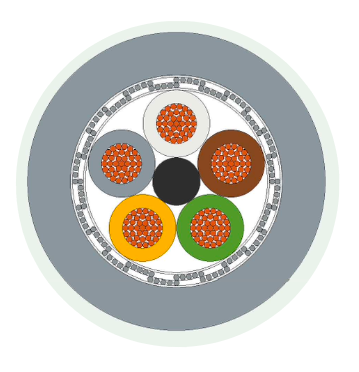

PUR/PP C Plus Signal TSP Cable – Product Data



  • Conductor: Fine stranded bare copper, Class 5

  • Cross-sections available: 0.25 mm², 0.34 mm², 0.50 mm², 0.75 mm²

  • Core insulation: Polypropylene (PP)

  • Core design: Twisted signal pairs for reduced interference

  • Shielding: Aluminum/polyester foil with drain wire for EMC protection

  • Outer sheath: Polyurethane (PUR), halogen-free, highly abrasion resistant

  • Sheath color: Typically gray or black

  • Nominal voltage: 300/500 V

  • Test voltage: 1500 V

  • Temperature range: –50 °C to +90 °C

  • Bending radius:

    • Fixed installation: 5 × outer diameter

    • Flexible installation: 10 × outer diameter



  • Flame resistance: IEC 60332-1-2 compliant

  • Special properties:

    • Excellent resistance to oils, greases, and chemicals

    • UV and ozone resistant

    • High flexibility, drag chain compatible

    • Halogen-free with low smoke emission



  • Typical applications:

    • Sensor and signal transmission

    • Industrial automation and robotics

    • Measurement and control circuits

    • Conveyor and handling systems

    • Machine tools in harsh environments
  • Type Signal Cable
  • MPN 40355564

Documentation Availability
Full technical documentation including detailed product datasheets, 3D STEP files, dimensional drawings, declarations of conformity and other certificates is available upon request.

Please contact our technical sales department at sales@oemnordic.com.
Certain controlled documents are provided directly to customers and are not distributed publicly online.
