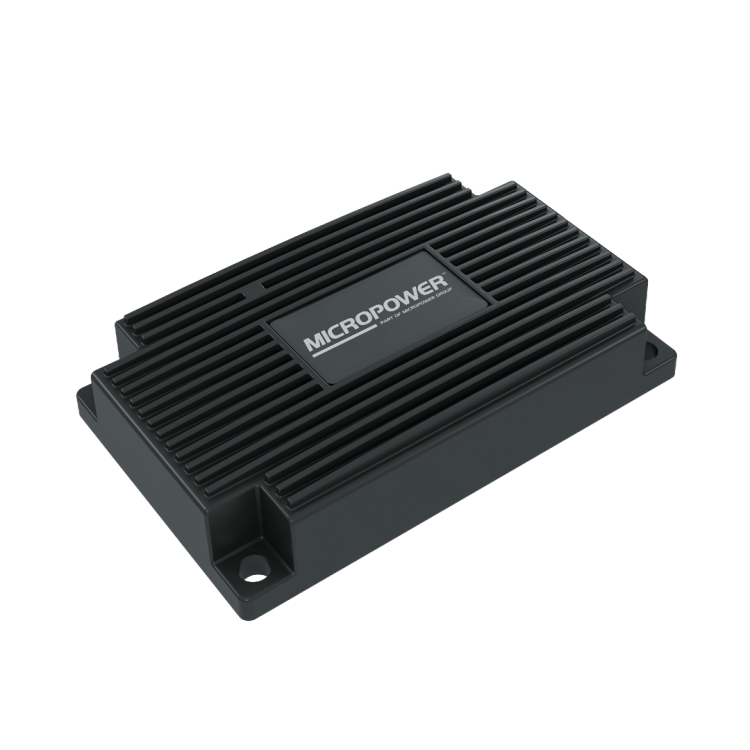

DC-DC Converter Isolated 48 V to 12 V (IP67)
This isolated DC-DC converter from Micropower Group is engineered to convert a wide DC input range (33–65 V) into a stable 12 V output with high efficiency and robust protection. Designed with advanced switching technology and a waterproof housing, it delivers reliable performance in harsh industrial and mobile environments.
Key Specifications
-
Input Voltage: 33–65 V DC
-
Output Voltage: 12 V DC (nominal)
-
Output Power: 400 W
-
Efficiency: >96 %
-
Isolation: Galvanically isolated
-
Ingress Protection: IP67 waterproof enclosure
-
Connections: Cable, loose end
-
Dimensions: 150 × 93 × 31 mm
-
Weight: ~0.82 kg
Main Features
-
Wide Input Range: Designed to operate across 33–65 V DC for flexible system design.
-
High Efficiency: Advanced switching technology with efficiency above 96 % minimizes heat and energy loss.
-
Galvanic Isolation: Improves electrical safety and immunity to noise for sensitive systems.
-
IP67 Protection: Fully sealed enclosure protects against dust and water ingress for outdoor use.
-
Rugged Construction: Durable aluminum housing for long service life even in harsh environments.
Protection Functions
- Reverse polarity protection
- Short-circuit protection
- Overload protection
Typical Applications
- Industrial automation and control systems
- Mobile and vehicle power systems
- Battery-powered equipment
- Telecommunications power supplies
- Control panel power conversion
Installation & Integration
- Pre-wired cable connections for straightforward setup
- Suitable for panel and cabinet installation
- Reliable and robust power conversion for industrial use
Note: This isolated DC-DC converter is ideal for applications requiring wide input tolerance, galvanic isolation, and high-efficiency 12 V power conversion in demanding industrial and mobile environments.
