The VTE 7753 Series is a compact three-point busbar for distributing high current from one supply cable to two high-draw devices. It accepts cables up to 4/0 AWG and is well suited to marine bow thrusters, winches and other demanding DC power systems.
Key advantages
- Three high-current connection points in a compact footprint
- Up to 700 A at 12 V DC
- Maximum system voltage: 48 V DC
- Nickel-plated brass conductor plate for conductivity and corrosion resistance
- Stainless-steel connection posts, nuts and washers
- Glass-filled nylon base available in red or black
Technical specifications
| Connection points | 3 |
|---|---|
| Maximum cable size | 4/0 AWG |
| Maximum current | 700 A at 12 V DC |
| Maximum voltage | 48 V DC |
| Conductor plate | Nickel-plated brass |
| Base | Glass-filled nylon |
| Connection posts and hardware | Stainless steel |
Available models
| VTE part number | Colour | Performance | Manufacturer drawing |
|---|---|---|---|
| 7753N7N02 | Red | 700 A at 12 V DC | PDF drawing |

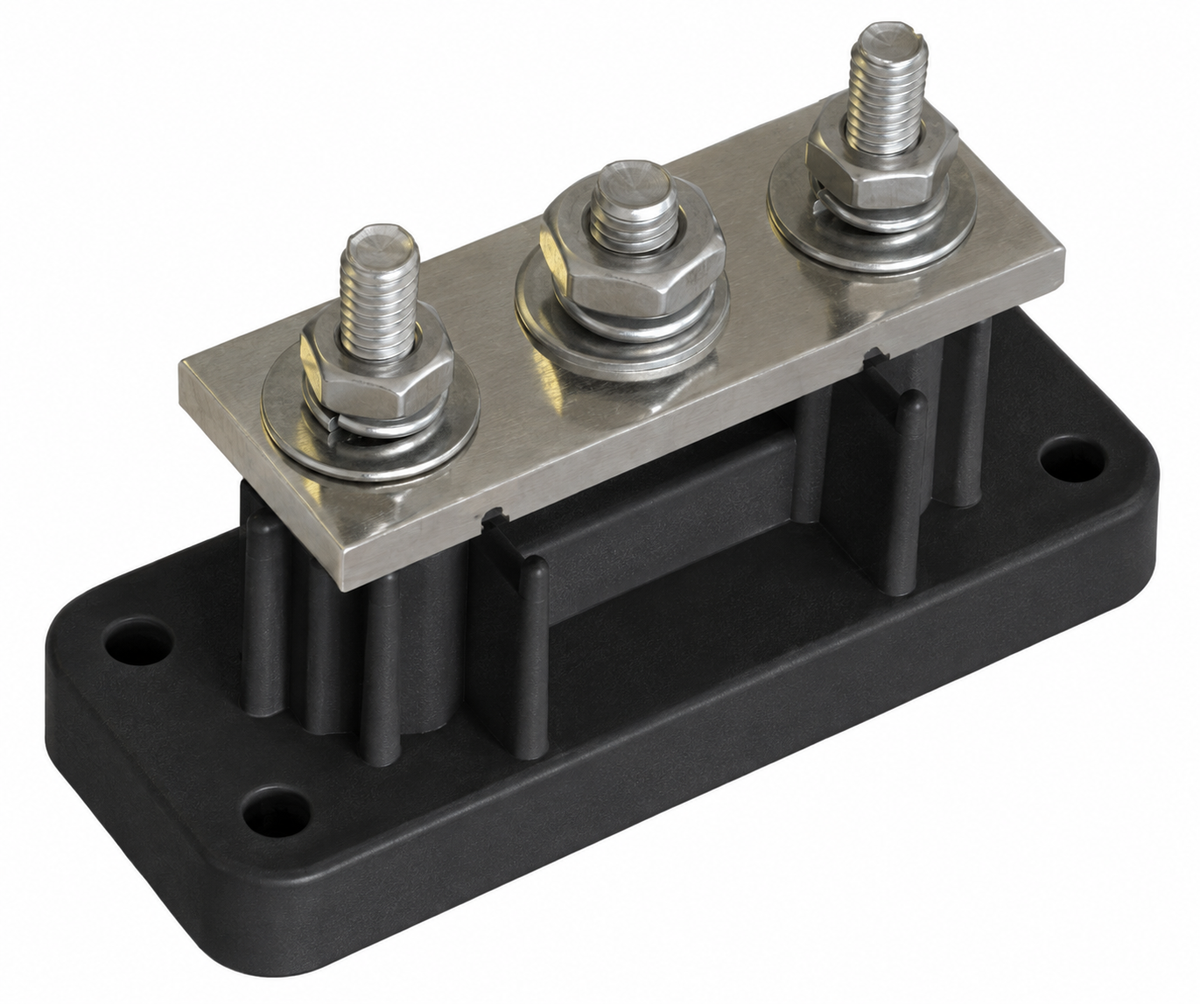

| 7753N7N14 | Black | 700 A at 12 V DC | PDF drawing |
Selecting the correct model
Choose the red base for positive-circuit identification and the black base for negative or neutral identification. Both versions have the same electrical performance and mounting geometry. Select the required colour and part number above before adding the product to your cart.
An optional terminal insulator can help protect exposed connections from accidental shorts. Terminal sleeves should be finished with suitable heat-shrink where the installation standard requires complete coverage.
Supplier lead time is typically 5–8 working days when available from stock; replenishment can take up to 8 weeks. Contact OEM Nordic to confirm availability for project quantities.
