The VTE 771025 Series 10-point busbar distributes low-voltage power or ground to ten screw connections from two 1/4-inch terminal posts. It is designed for compact multi-circuit DC wiring in marine, vehicle, battery and industrial equipment.
Electrical ratings
- 150 A maximum continuous load at 12 V DC
- 15 A continuous per connection
- 20 A intermittent per connection for less than one minute
- 48 V DC maximum system voltage
Construction and installation
- Ten #8-32 stainless-steel connection screws
- Two 1/4-inch stainless-steel terminal posts
- Stainless-steel hex nuts and lock washers
- Glass-filled nylon base in red or black
- 4.66-inch mounting centres
- #10 mounting screws required; screws are not included
Available models
| Colour | VTE part number | Manufacturer drawing |
|---|---|---|

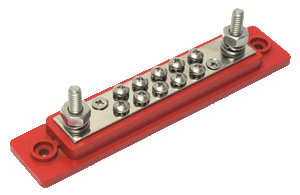

| Red | 771025N0N02 | |

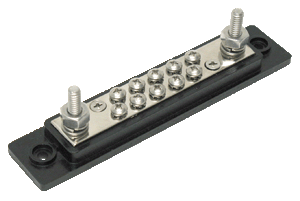

| Black | 771025N0N14 |
Cover options
The busbar is supplied without a cover. Compatible VTE 724 Series covers are available separately in red (724N3P02), yellow with blue retainers (724N3P05) and black (724N3P14). When used with the specified insulation, the assembly is designed to meet the cited USCG 33 CFR Subpart I, SAE J2120 8.5 and ABYC E-9.4 H requirements.
Supplier lead time is typically 5–8 working days when available from stock; replenishment can take up to 8 weeks. Contact OEM Nordic to confirm availability.
