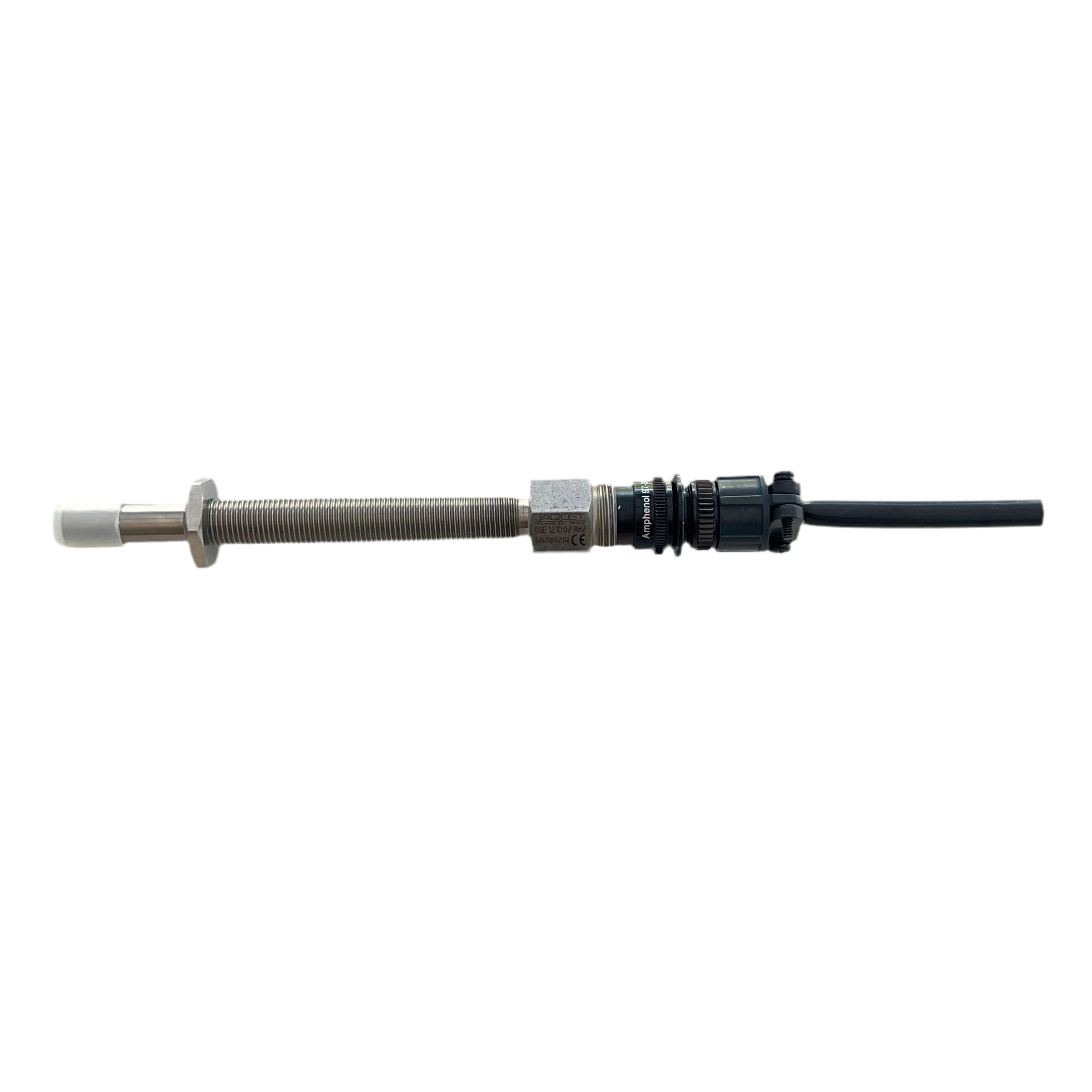

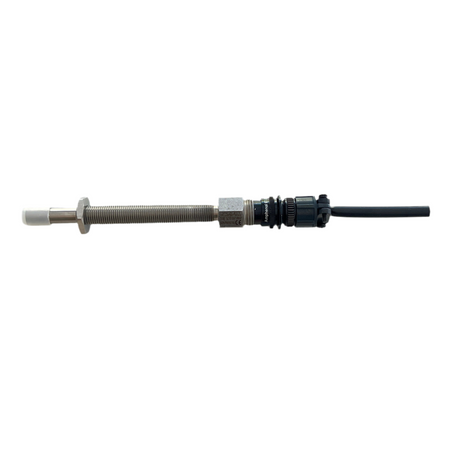

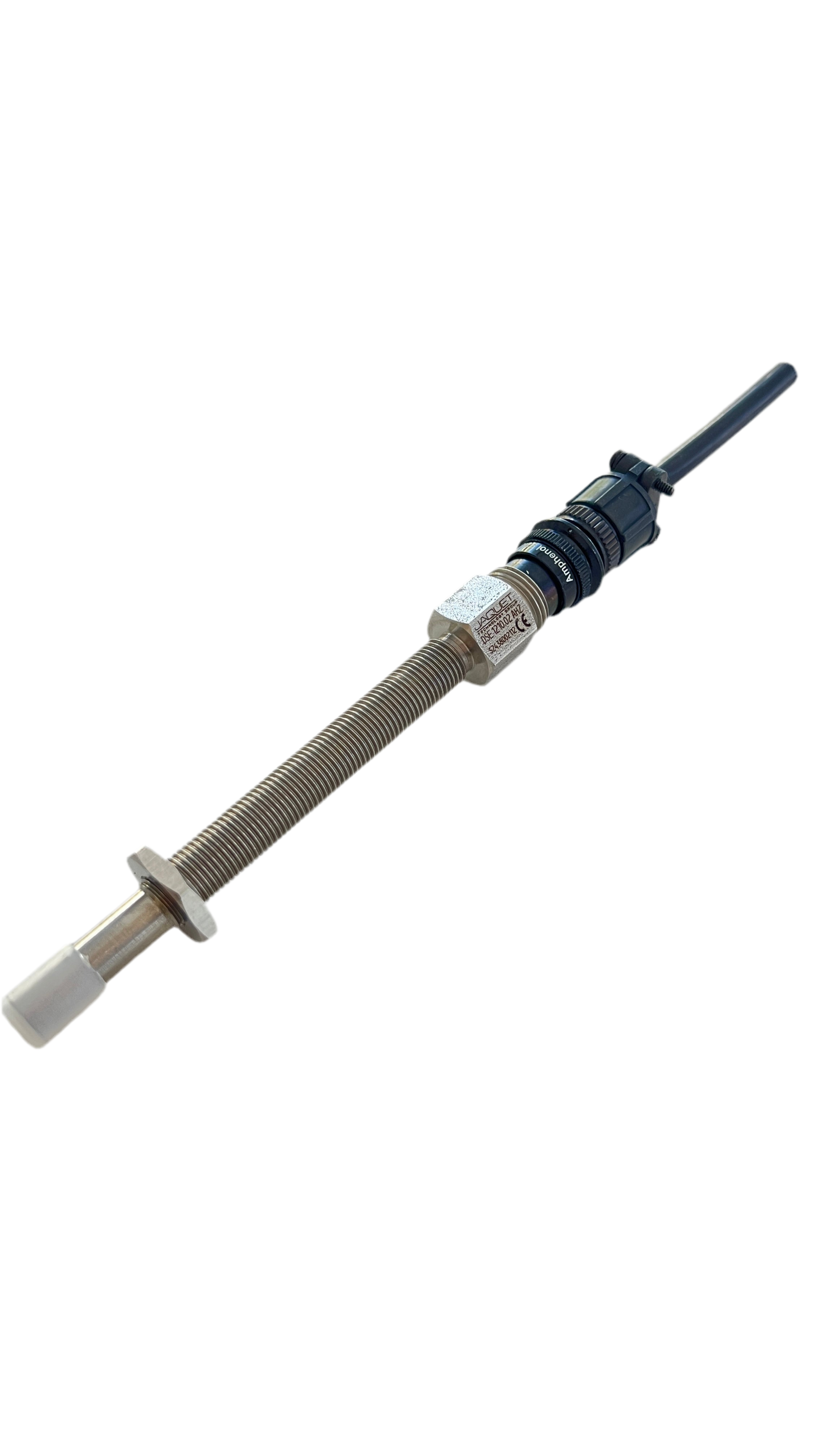

TE / Jaquet Speed Sensor DSE 1210.02 AHZ MPN: 304Z-03109
Couldn't load pickup availability
This is a genuine Jaquet product. All items sold are brand new and delivered in the manufacturer’s original, unopened packaging.
Got questions? Need a Quotation?
Feel free to get in touch
Ask an expert!

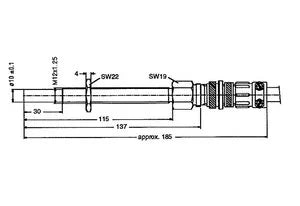

Jaquet DSE 1210.02 AHZ
The sensor DSE 1210.02 AHZ (mpn: 304Z-03109) has a socket connection type Jaquet 820E-31142

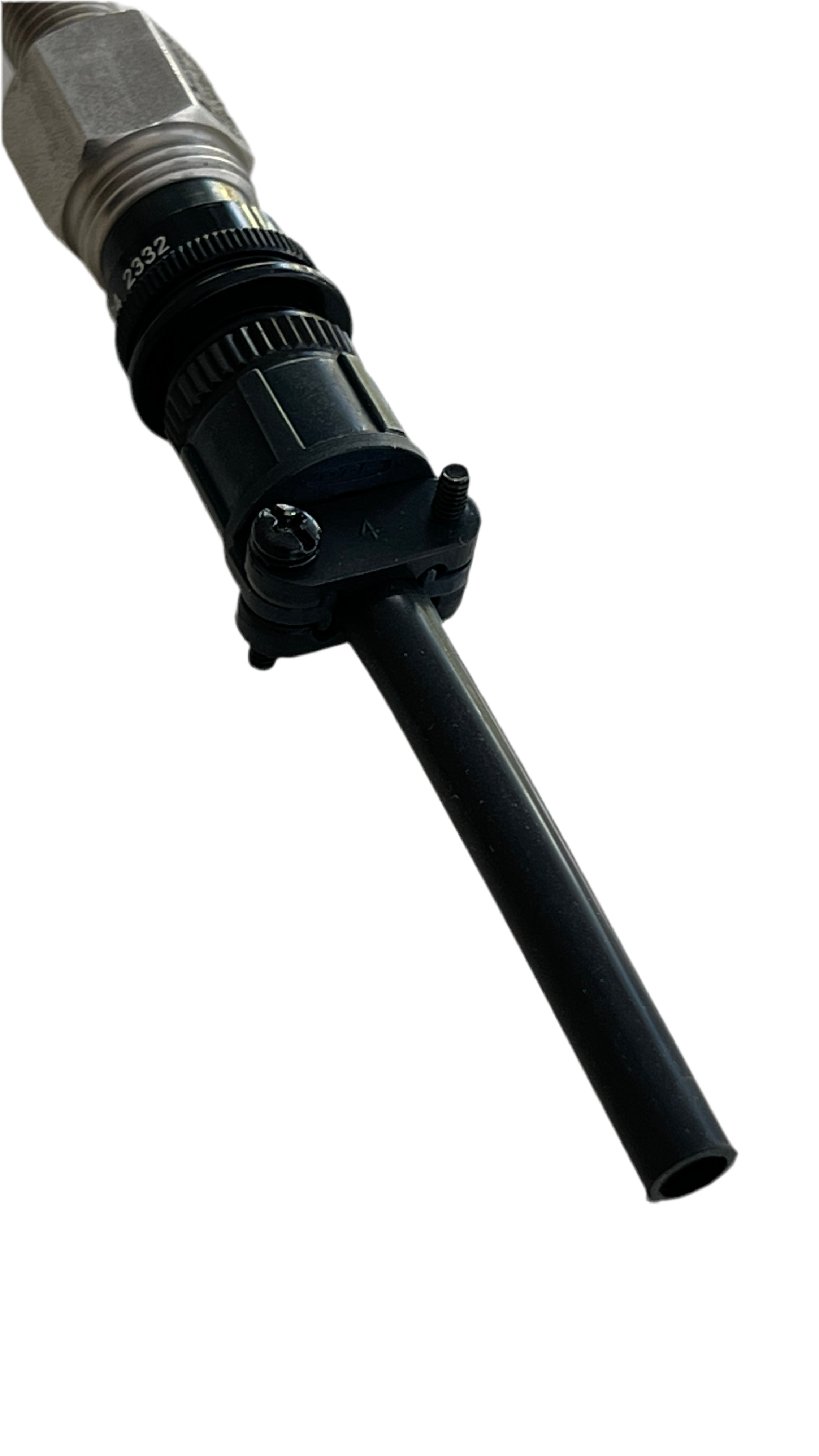

Jaquet 820E-31142 Socket connection
is the same as Amphenol Industrial MS3102A-10SL-3P/H 097
Operating temperature: -55°C to +125°C Plug-and-socket connection: IP67
Suitble Plug to connect a cable on this sensor
If you connect a cable on this sensor, you need a cable with Jaquet type 820E-31141 which is same as Amphenol Industrial MS3106A-10SL-3P
Documentation Availability
Full technical documentation including detailed product datasheets, 3D STEP files, dimensional drawings, declarations of conformity and other certificates is available upon request.
Please contact our technical sales department at sales@oemnordic.com.
Certain controlled documents are provided directly to customers and are not distributed publicly online.
