TE / Jaquet Speed Sensor DSE 1210.01 ATZ (MPN: 304Z-03106)

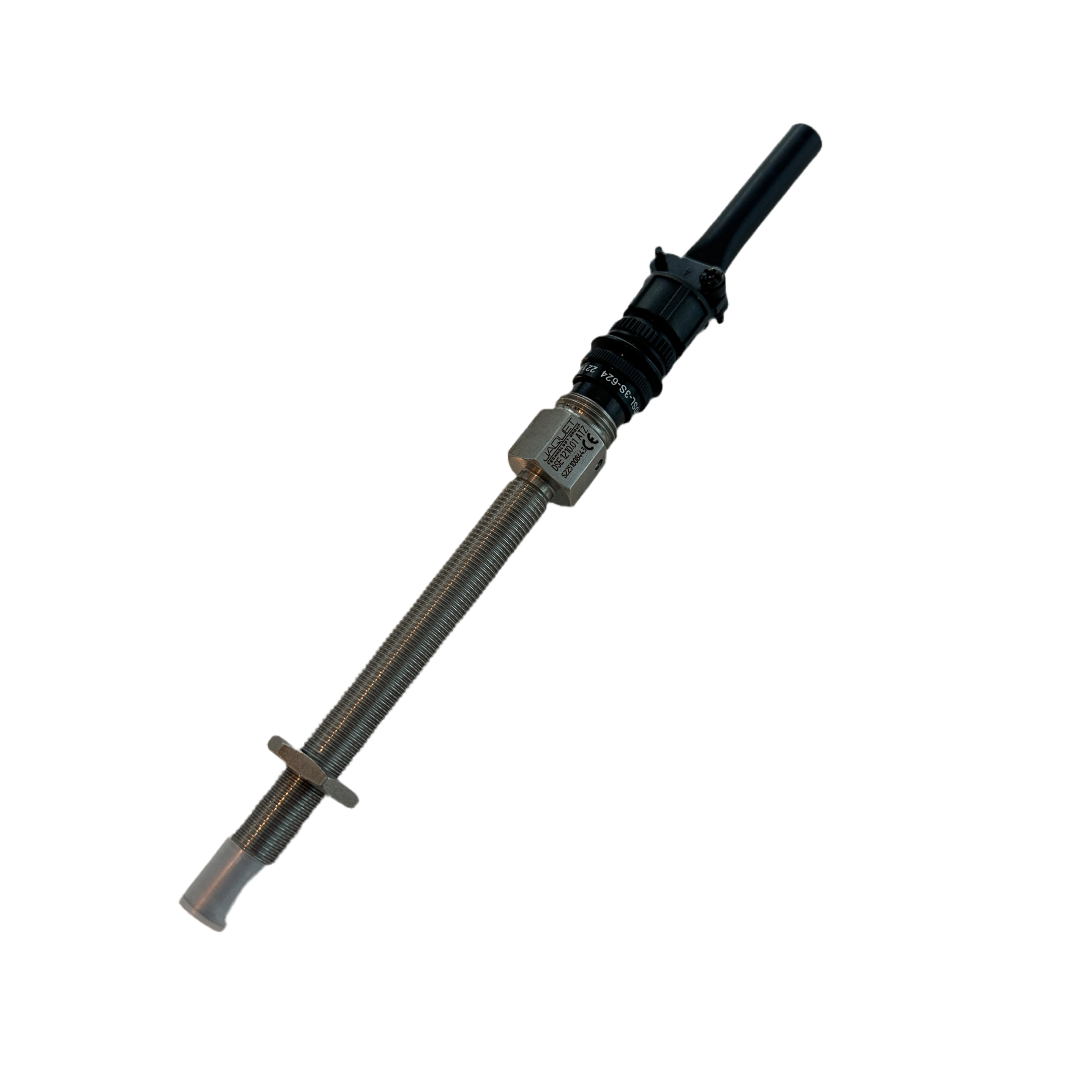

Jaquet Speed Sensor DSE 1210.01 ATZ

Type Part Nr.: DSE 1210.01 ATZ 304Z-03106
Connection: Connector

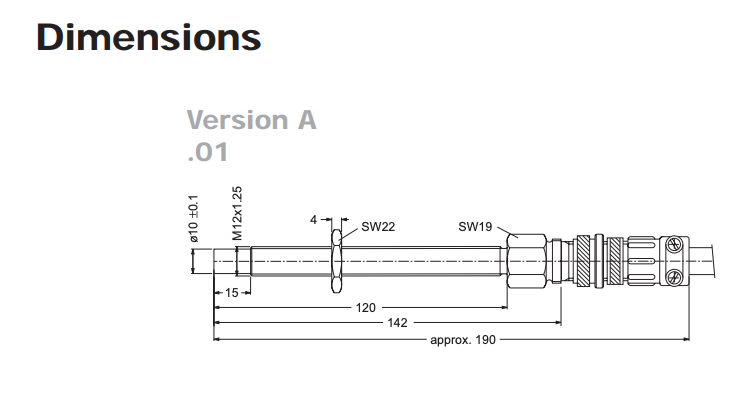

Housing thread: M12x1.25
Weight: 150 [g]
Operating temperature: -20…+85 [°C]
Notes: previously FTG 232 A

(MPN: 304Z-03106) is a high-precision speed sensor designed for various applications, including turbocharger speed measurement in commercial and off-highway vehicles. This sensor is part of the DSE 1210.01 ATZ series and is known for its robust construction and reliable performance in demanding environments.

Here are some key features and details:

1. Purpose: Designed for accurate turbocharger speed measurement, making it suitable for high-volume commercial vehicle applications
2. Specifications: The sensor is designed to generate square wave signals proportional to the rotary speed when used with a pole wheel.
3. Construction: Built to withstand harsh conditions, making it ideal for use in both commercial and off-highway vehicles
