Jaquet DSD 1810.01 PHW - Differential Ferrostat Speed Sensor

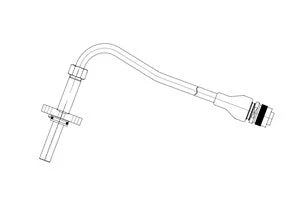

The Jaquet DSD 1810.01 PHW (374Z-04909) is a differential Hall-effect speed sensor designed for both static and dynamic speed measurement applications. Featuring an M18x1 housing and integral armored cable terminated with an ITT Cannon connector (L=0.825m), this rugged sensor provides quadrature output signals for precise speed and direction detection in demanding industrial environments.

Technical Specifications

  • Model: DSD 1810.01 PHW
  • Part Number: 374Z-04909
  • Housing: M18x1 thread, stainless steel 1.4305
  • Sensing Technology: Differential Hall-effect with dual sensing elements
  • Supply Voltage: 9-30 VDC (reverse polarity and transient protection)
  • Current Consumption: Max 30 mA (without load)
  • Frequency Range: 0 Hz to 20 kHz (static and dynamic measurement)
  • Temperature Range: -40°C to +125°C (Version H)
  • Weight: Approximately 360 grams

Output Signals

  • Signal Type: Two phase-shifted rectangular signals (quadrature output)
  • Phase Shift: Minimum 20° between S1 and S2 edges
  • Signal Coupling: DC-coupled with supply source (negative pole = reference potential)
  • Maximum Load Current: 25 mA per channel
  • Output Voltage HIGH: Supply voltage - 2.5V at I = 20 mA
  • Output Voltage LOW: < 1.5V at I = 20 mA
  • Protection: Short-circuit proof, reverse polarity and transient protected

Cable & Connection

  • Cable Type: Armored cable (Art. No. 824L-36622)
  • Cable Length: 0.825 meters
  • Conductors: 6-core, 6 x 0.6 mm² (AWG 20)
  • Cable Shielding: Metal braid (isolated from housing), black outer jacket
  • Cable Diameter: Max 13 mm outer diameter
  • Minimum Bend Radius: 30 mm
  • Connector Type: ITT Cannon round connector KPSE06E 14-5S-DZ-BM221-A233
  • Connector Finish: Zinc-cobalt green surface protection

Target Wheel Requirements

  • Material: Ferromagnetic material (e.g., USt 37-2)
  • Tooth Profile: Involute gear teeth, radial sensing
  • Minimum Module: 1.0 (smallest detectable structure)
  • Minimum Tooth Width: 10 mm
  • Sensing Distance: 0.1 to 0.6 mm for Module 1.0
  • Runout Tolerance: < 0.2 mm
  • Lateral Offset: < 0.2 mm

Environmental & EMC Protection

  • Protection Class: IP68 (sensor head), IP67 (connector)
  • Housing Seal: Hermetically sealed front face
  • Chemical Resistance: Resistant to splash water, oil, conductive carbon/iron dust, and salt spray
  • Vibration Resistance: 20 gn, 10-500 Hz, random noise
  • Shock Resistance: 30 gn, 6 ms (IEC 68-2-27)
  • Electrical Isolation: Housing and electronics galvanically separated (500V/50Hz/1 min)
  • ESD Protection: Up to ±4 kV peak (IEC/EN 61000-4-2)
  • EMI Immunity: Up to 30 V/m, 50% AM, 1 kHz (1 MHz to 1000 MHz, IEC/EN 61000-4-3)
  • Fast Transients: Up to ±4 kV peak (IEC 61000-4-4)

Key Features

  • Quadrature Output: Two phase-shifted signals enable direction detection and enhanced resolution
  • High Temperature Rating: Operates reliably from -40°C to +125°C
  • Zero-Speed Capability: 0 Hz operation for static position detection
  • Differential Hall Technology: Dual sensing elements provide superior noise immunity
  • Compact M18x1 Design: Easy installation in standard mounting configurations
  • Rugged Construction: Potted electronics and armored cable for harsh environments

Applications

Ideal for speed and position monitoring in demanding industrial environments including:

  • Turbomachinery speed monitoring
  • Motor and generator speed control
  • Industrial gearbox monitoring
  • Process machinery control systems
  • Conveyor and material handling systems
  • Automotive and heavy equipment applications
  • Marine propulsion systems

Installation Notes

  • Critical Alignment: Sensor must be aligned with respect to the target wheel plane according to installation drawing
  • Alignment Pin: Note the alignment pin in the flange during installation
  • Shield Connection: Cable shield must be connected to 0V on the equipment side
  • Reference Documentation: See drawings 3-112.503/1 and 3-112.503A/1 for installation details

Note: The DSD 1810.01 PHW contains differential Hall elements and requires proper alignment relative to the target wheel plane. Incorrect positioning will impair sensor function. Electronic components are fully potted with chemically resistant, aging-resistant compound. Operating instructions reference: 374D-64267.
