SW200A-24 Albright 250A Single Acting Solenoid Contactor 110V CO
Couldn't load pickup availability
This is a genuine Albright product. All items sold are brand new and delivered in the manufacturer’s original, unopened packaging.
Got questions? Need a Quotation?
Feel free to get in touch
Ask an expert!

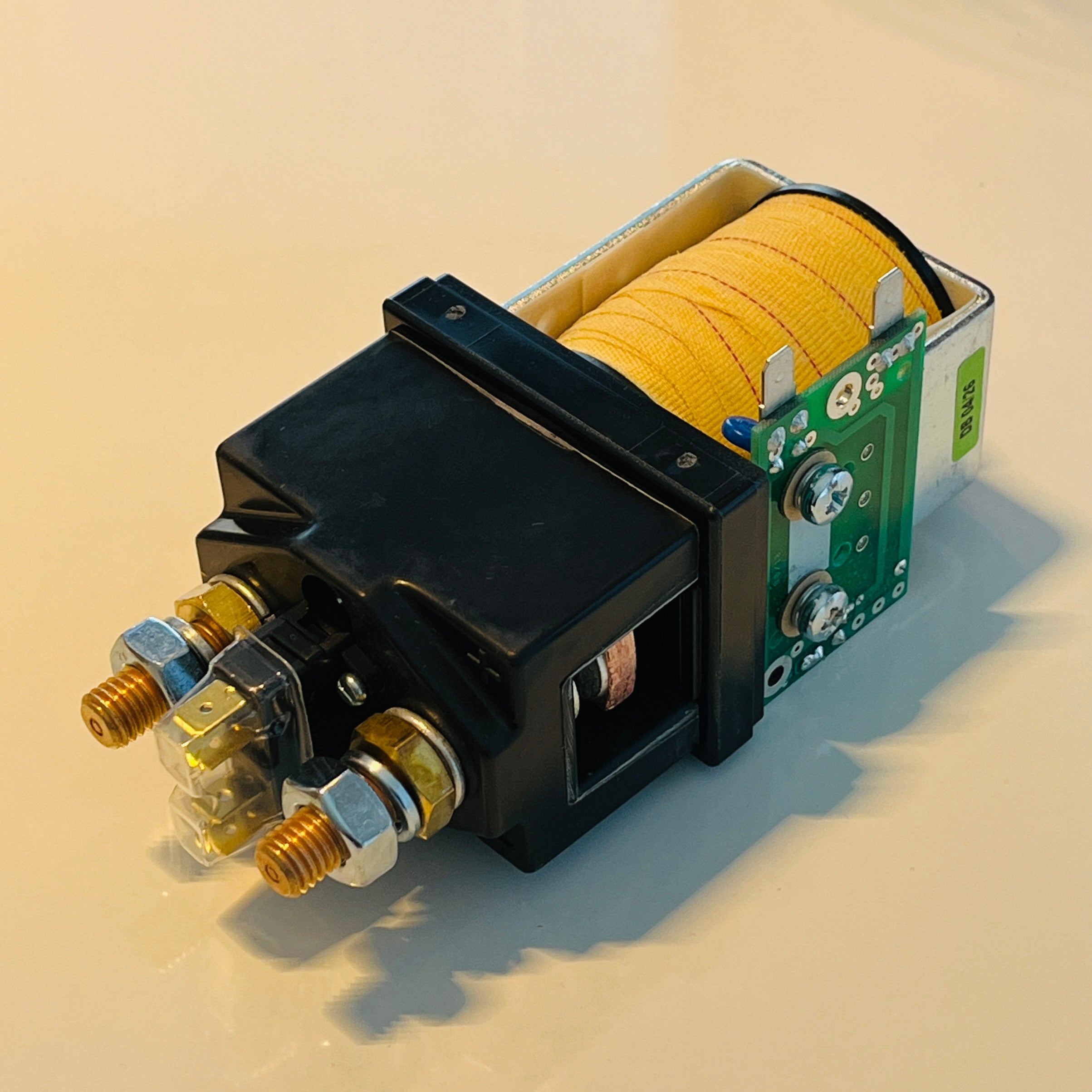

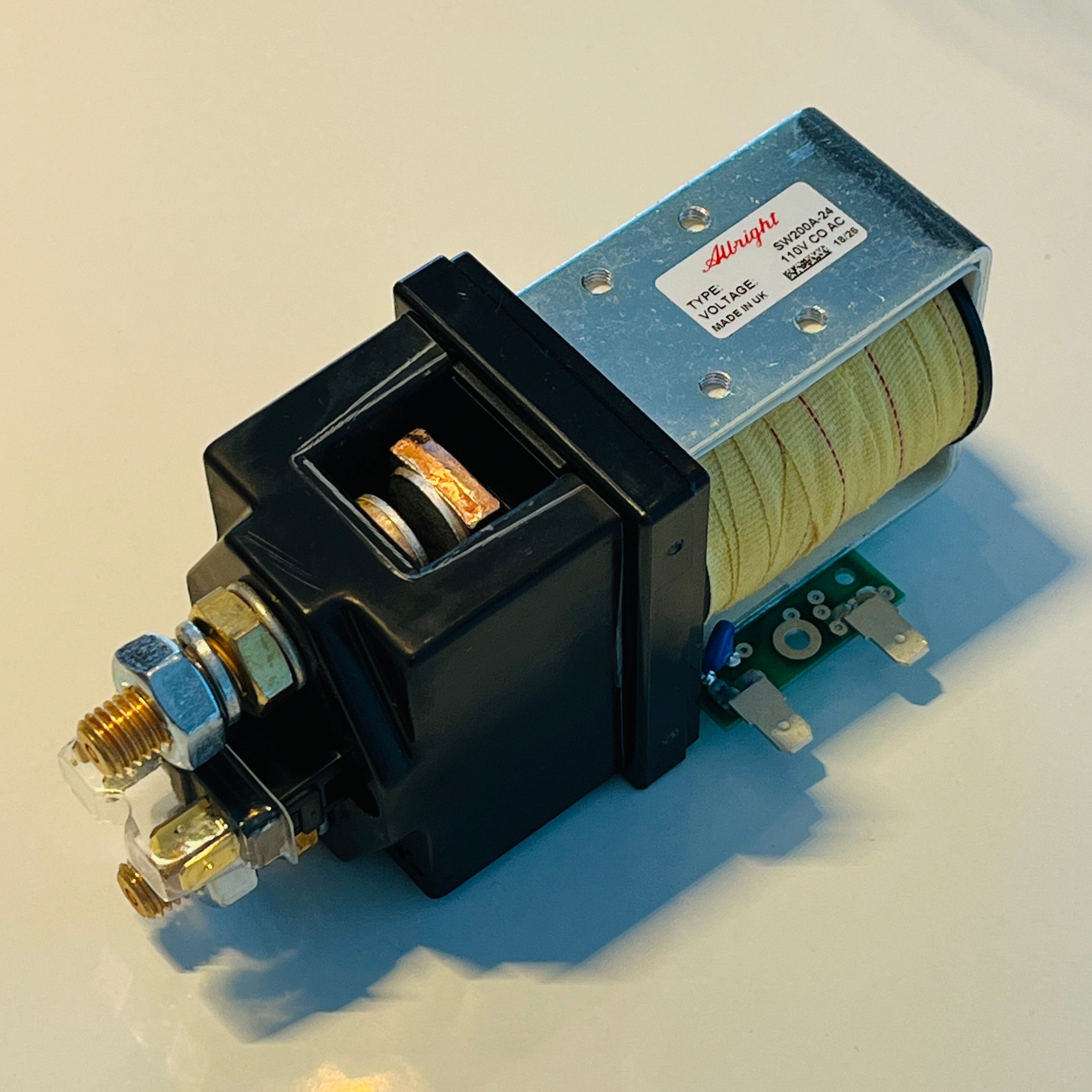

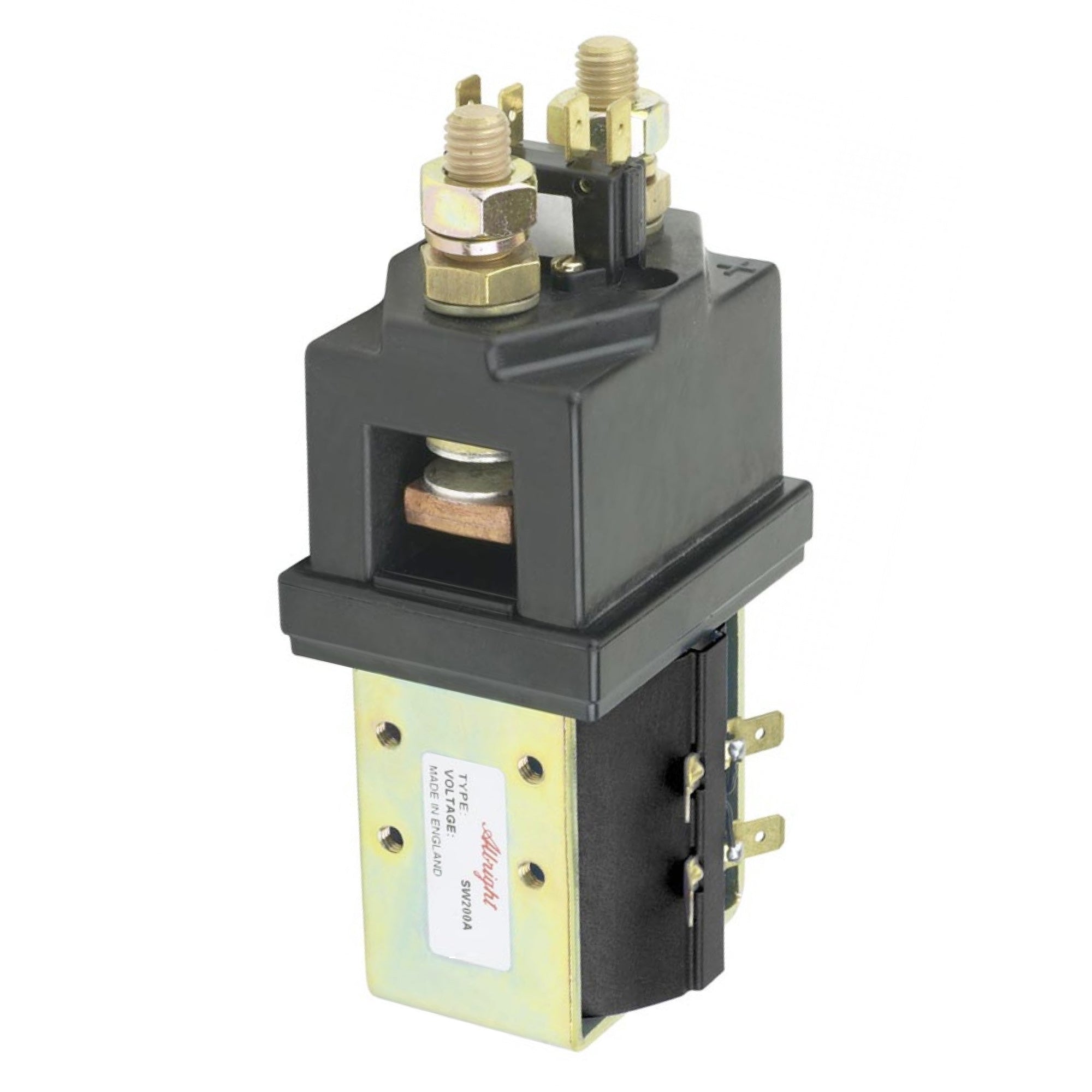

SW200A-24 110 VDC Continuous contactors by design are predominantly used for drive functions on vehicles, they make and break slower than intermittent solenoids and are recommended for prolonged contact periods. Fitted with Auxiliary contacts (A).
The SW200 has been designed for direct current loads, including motors as used on electric vehicles such as industrial trucks. Developed for both interrupted and uninterrupted loads, the SW200 is suitable for switching Resistive, Capacitive and Inductive loads.
The SW200 features single pole single throw, double breaking main contacts with silver alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The SW200 has M10 stud main terminals and 6.3mm spade coil connections. It can be mounted via M5 tapped holes or steel mounting brackets - supplied as separate items). Mounting can be horizontal or vertical, when vertical the M10 contact studs should point upwards.
- Type Contactor / Solenoid
Documentation Availability
Full technical documentation including detailed product datasheets, 3D STEP files, dimensional drawings, declarations of conformity and other certificates is available upon request.
Please contact our technical sales department at sales@oemnordic.com.
Certain controlled documents are provided directly to customers and are not distributed publicly online.
Orders are processed within the same day. We do use air express service with carriers FedEx, DHL, UPS so that you can get your order delivered on time with tracking included in every parcel sent out.
Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
