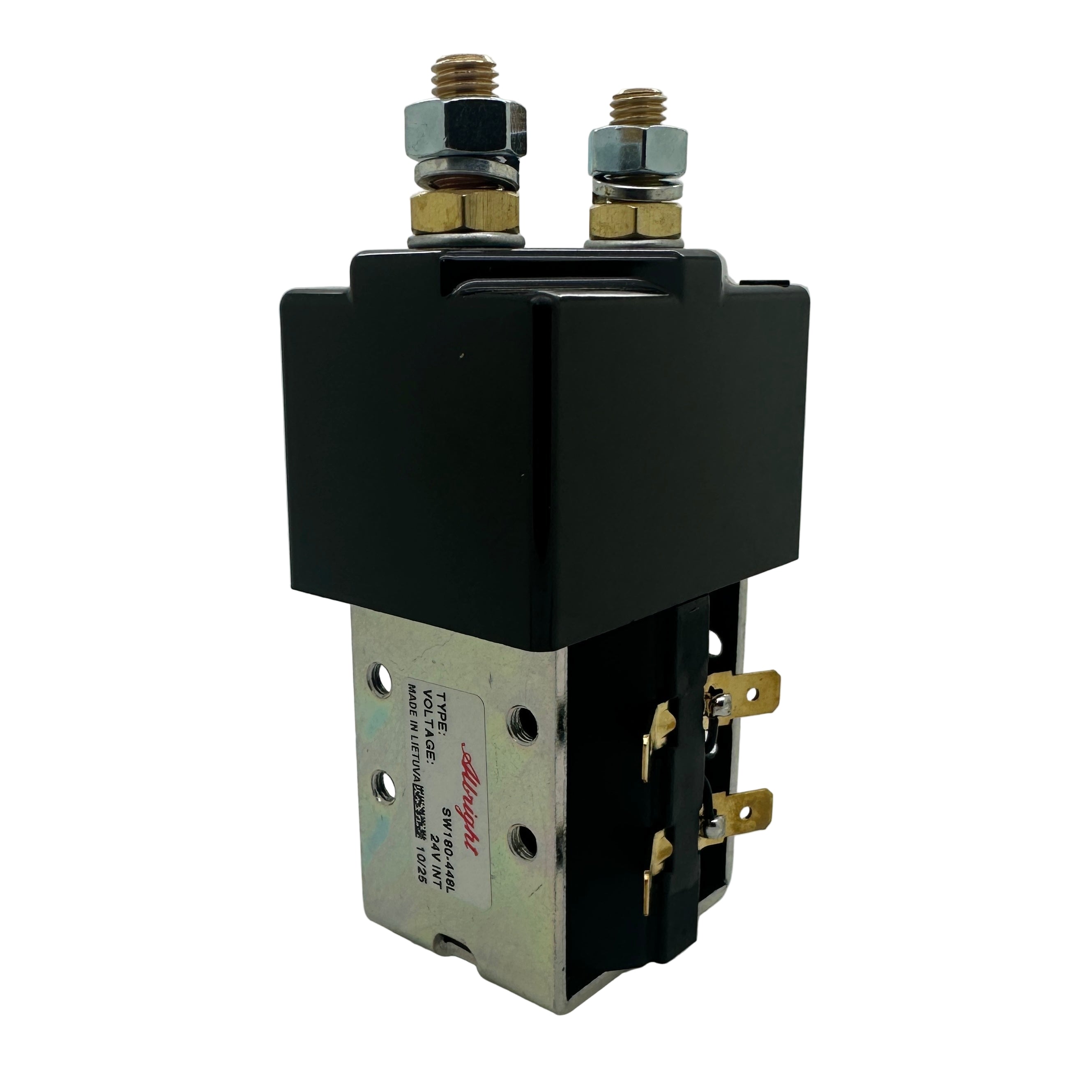

SW180-448L Albright 150A Single Acting Contactor 24V INT
Couldn't load pickup availability
This is a genuine Albright product. All items sold are brand new and delivered in the manufacturer’s original, unopened packaging.
Got questions? Need a Quotation?
Feel free to get in touch
Ask an expert!
SW180-448L 24V Intermittent, 150 Amp
Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.
The SW180 has been designed for direct current loads, including motors as used on electric vehicles such as industrial trucks. Developed for both interrupted and uninterrupted loads, the SW180 is suitable for switching Resistive, Capacitive, and Inductive loads.
The SW180 features single pole single throw, double breaking main contacts with silver alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The SW180 has M8 stud main terminals and 6.3mm spade coil connections. It can be mounted via M5 tapped holes or steel mounting brackets - supplied as separate items). Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards.
Documentation Availability
Full technical documentation including detailed product datasheets, 3D STEP files, dimensional drawings, declarations of conformity and other certificates is available upon request.
Please contact our technical sales department at sales@oemnordic.com.
Certain controlled documents are provided directly to customers and are not distributed publicly online.
