SMP Adjustable Service Charger 0–120V 0–10A 800W 230V IP21 924908-502 / OE23601U
Regular price
€1.879,00
Couldn't load pickup availability
Original Micropower product
This is a genuine Micropower product. All items sold are brand new and delivered in the manufacturer’s original, unopened packaging.
Free shipping available
100% secure payments
Industry leading quality
Got questions? Need a Quotation?
Feel free to get in touch
Ask an expert!

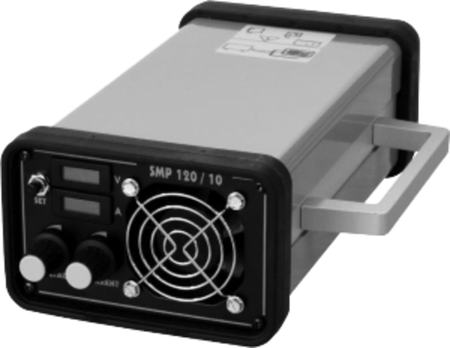

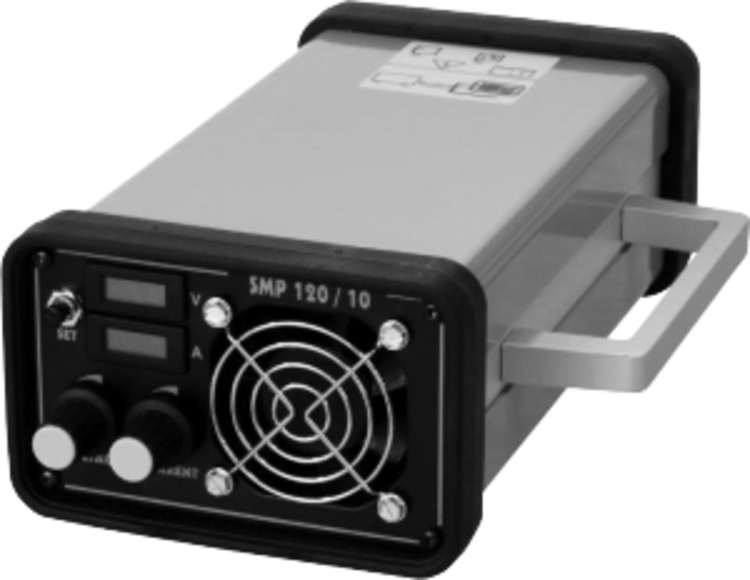

Micropower SMP 120/10 Adjustable Service Charger 0–120V 0–10A 800W 230V
with display, spark protection + wires
Adjustable output voltage and current: 0–120V DC, 0–10A
Manufacturer reference: 924908-502
Alternate reference: OE23601U
Input: 230V AC (220–240V, 45–65Hz)
The Micropower SMP 120/10 is a high-frequency microprocessor-controlled service charger and DC power supply developed for professional battery service and industrial maintenance applications.
Comes with:
1 x SMP Charger 120/10 800W
1 x Primary cable (input cable AC 230V), length 1,5m
1 x laboratory cables for DC = set of laboratory cables.
Designed for workshops and field technicians, the unit enables controlled charging, battery recovery and precise voltage and current regulation. It is particularly suitable for restoring deeply discharged batteries and assisting charger start-up when battery voltage is critically low.
The adjustable voltage and current limits allow safe adaptation to different battery types and service conditions. Separate digital displays provide clear real-time monitoring of voltage and current under load.

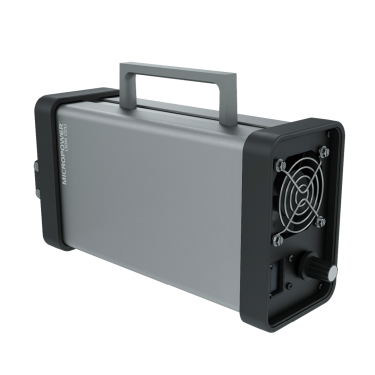

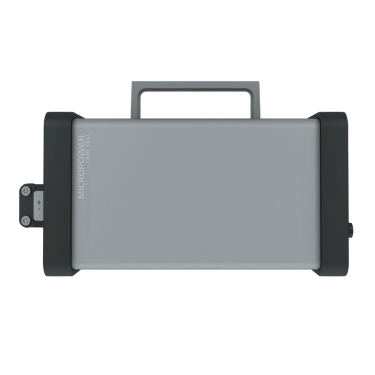

The robust rubber-protected housing improves durability and prevents slipping during operation. A temperature-controlled cooling fan ensures efficient thermal management while maintaining quiet performance.
Key features:
- Suitable for all types of industrial batteries
- Adjustable voltage limit (0–120V DC)
- Adjustable current limit (0–10A)
- Maximum output power: 800W
- Helps dissolve sulphation in deeply discharged batteries
- Can simulate a battery when fault-finding chargers
- Assists charger start-up when battery voltage is low

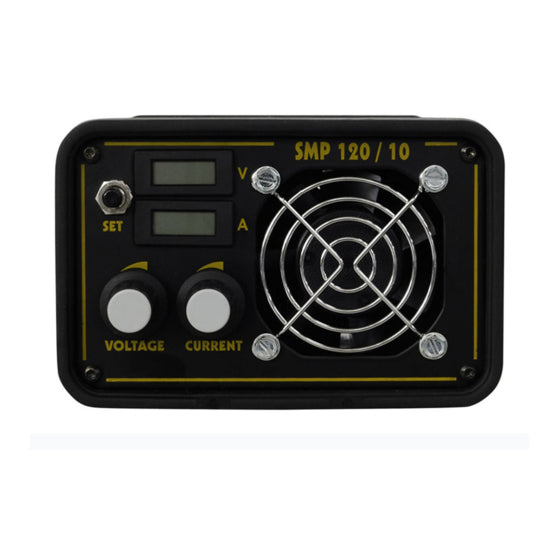

- Separate digital displays for voltage and current
- Protected against short circuit and reverse polarity
- Compact and lightweight design (1.6 kg)
Technical Summary
- Input voltage: 220–240V AC, 45–65Hz
- Power consumption: max 4.5A
- Power factor: ~1 (PFC)
- Output voltage range: 0–120V DC
- Nominal voltage: 84V (supplies 10A with this voltage)
- Max output current: 10A
- Max output power: 800W
- Max ripple: 30mV RMS
- Efficiency: >86%
- Switching frequency: >100 kHz
- Cooling: Temperature-controlled fan
- Protection class: IP20
- Dimensions: 258 x 136 x 89 mm
- Weight: 1.6 kg
A reliable professional solution for controlled charging, battery recovery and industrial service use.
Manufacturer extra data:
PSU 800W 84V 10A Adjust Display
SMP 120/10 Rev:02
Silver, PG: 2A011B, Peters coating + silicon
- Type Battery Charger - Industrial
- Datasheet
Documentation Availability
Full technical documentation including detailed product datasheets, 3D STEP files, dimensional drawings, declarations of conformity and other certificates is available upon request.
Please contact our technical sales department at sales@oemnordic.com.
Certain controlled documents are provided directly to customers and are not distributed publicly online.
