A 350 AMP FLAT BLADE CONTACT CONNECTOR SR350 SERIES
This series is 100% compatible with Anderson SB350 series connectors and housings and vice versa. REMA is the European version of this legendary connector series seen all over the EV machines such as scissor lifts. Also used in fixed installation, such as 48V UPS stations, telecommunication junction boxes and battery systems.

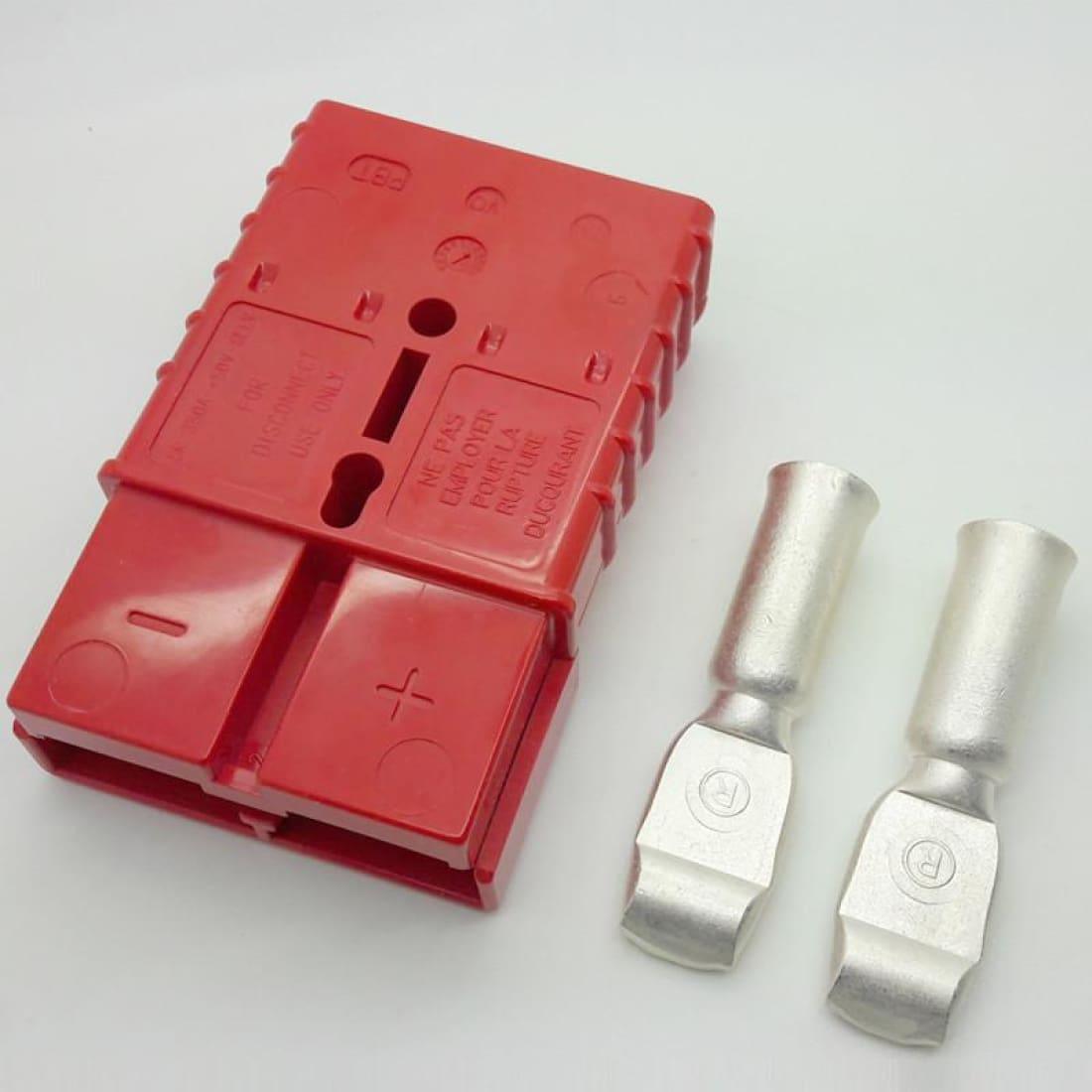

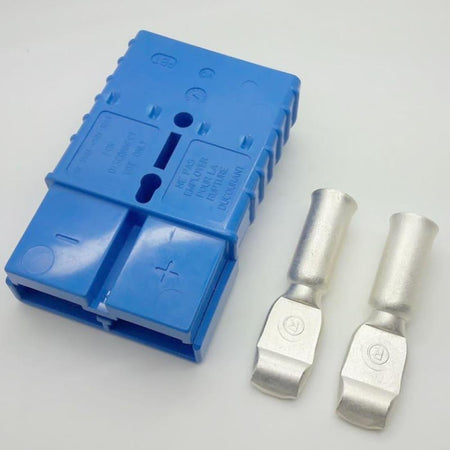

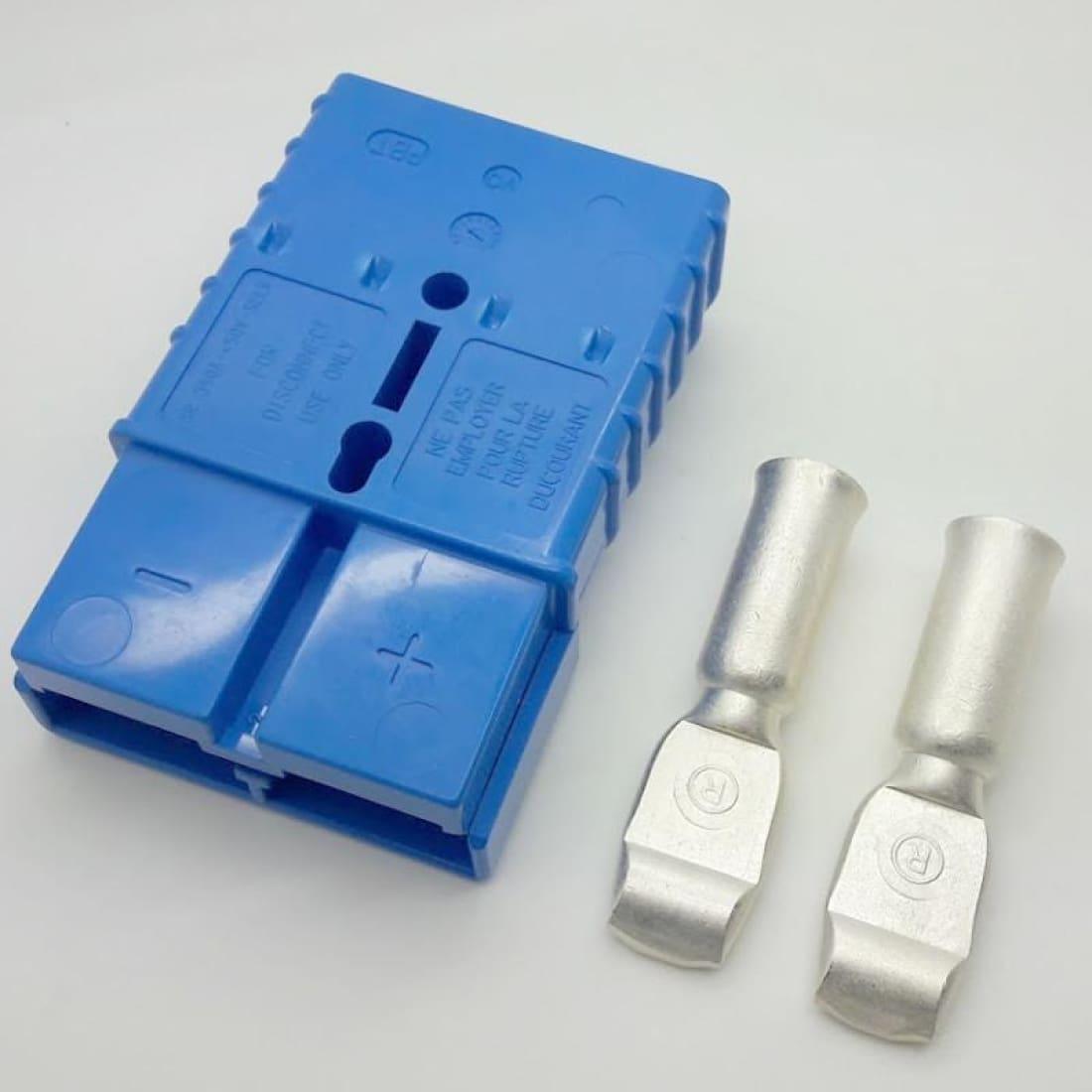

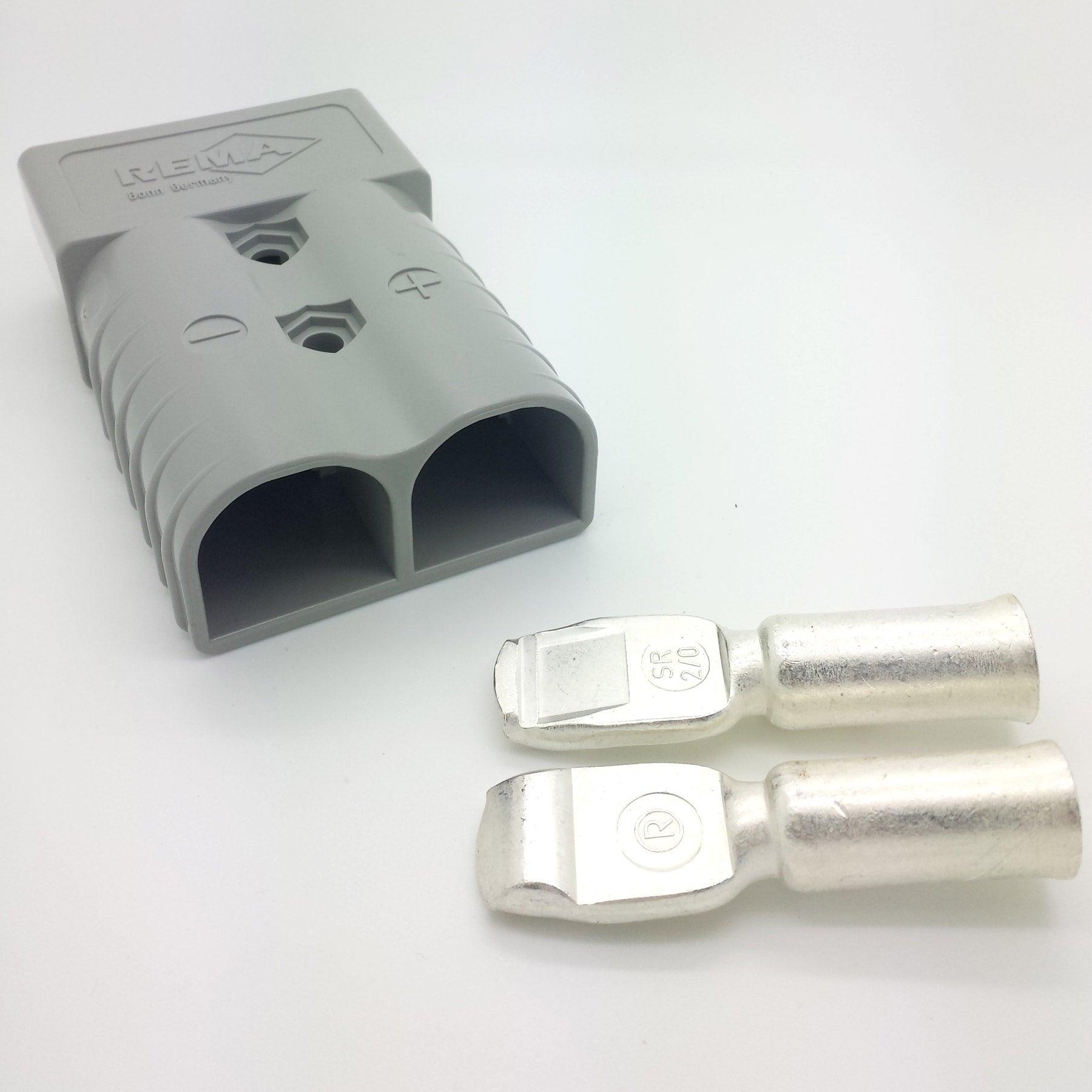

SR350 FLAT BLADE CONTACT BATTERY CONNECTOR
Product features and advantages
- Reliable power connection solution for
- Electric vehicle batteries
- Battery chargers
- Forklift trucks
- Other DC voltage applications
Operating voltage determined by housing colour simplifies mating of same voltages and protects from mating to unwanted voltages
Genderless design
- Plug and socket with identical housing design reduces the quantity of components
- Acid resistant housing material
- Handels and strain relieve available
- CE Marking & UL recognized

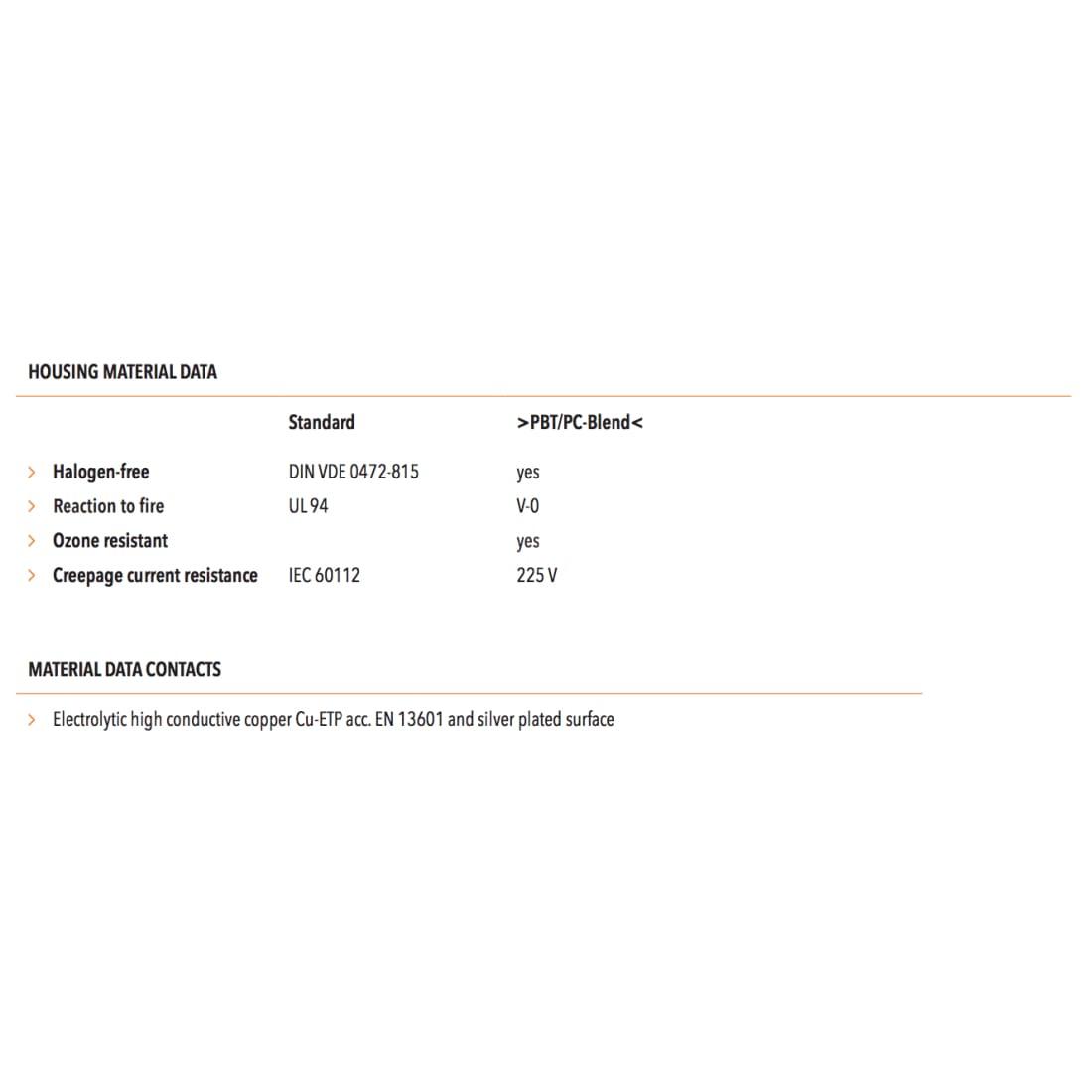

Contacts are sized for AWG (American Wire Gauge). REMA developed high-grade contacts made out of pure high conductive Cu-ETP copper with silver plated surface and an anti-friction and tarnish coating ensure power transition with minimal losses long life suitable for crimping

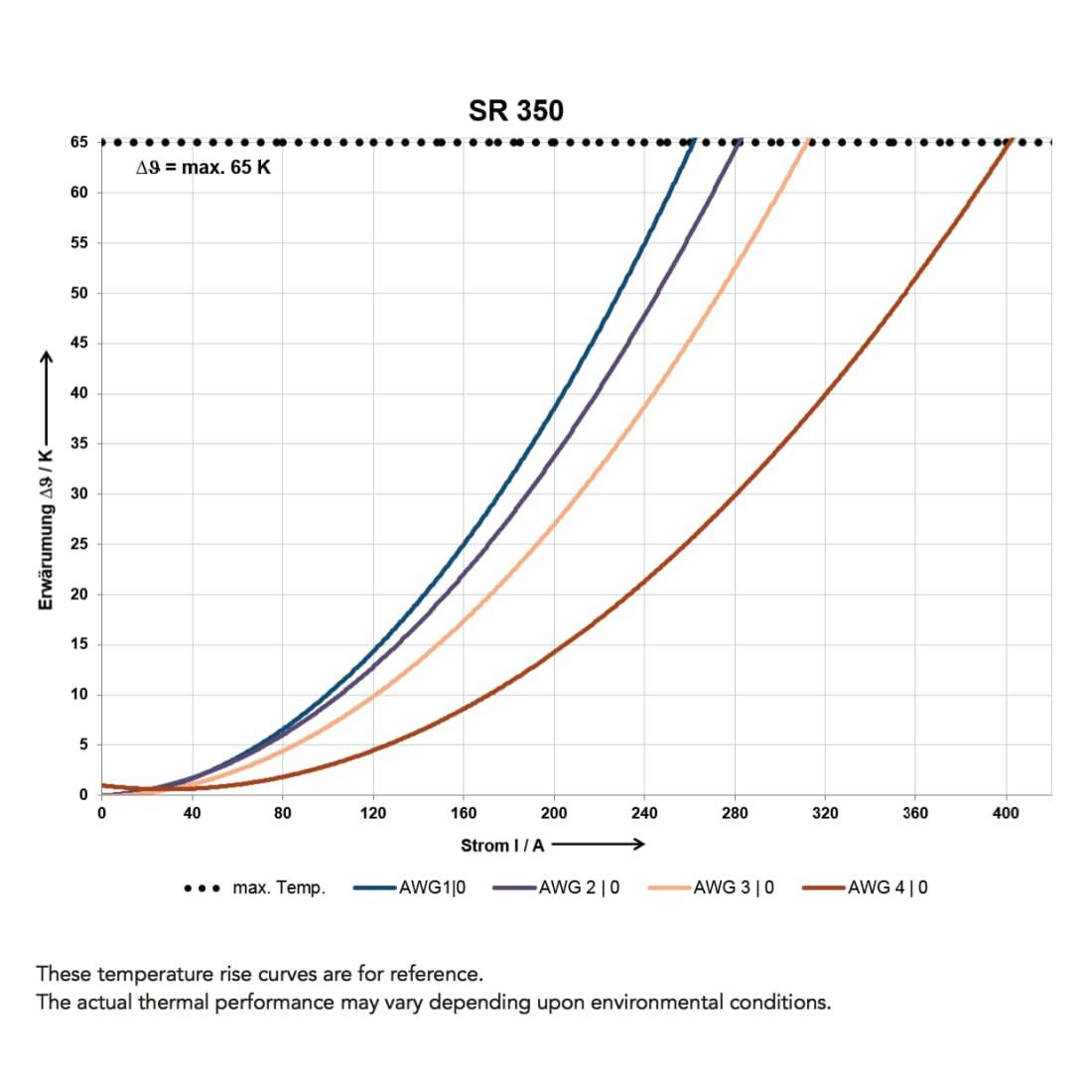

REMA® SR350 Connector system is designed for optimum performance when used with 4/0 AWG cross section cable. The rated operating current is 350 A. Depending on the cross section and the laying procedure, the current rating is changed. The REMA SR 350 Connector is 100% interchangeable and mates with Anderson SB 350 Connectors.
