ONE Light Constant Current LED Driver 8,4W@12V 16,8W@24V 22,4W@36V IP20 89028AM
Regular price
€25,95
Couldn't load pickup availability
Original ONE Light product
Genuine ONE Light product. All items sold are brand new and delivered in the manufacturer’s original, unopened packaging.
Free shipping
100% secure payments
Industry leading quality
Got questions?
Feel free to get in touch
Ask an expert!

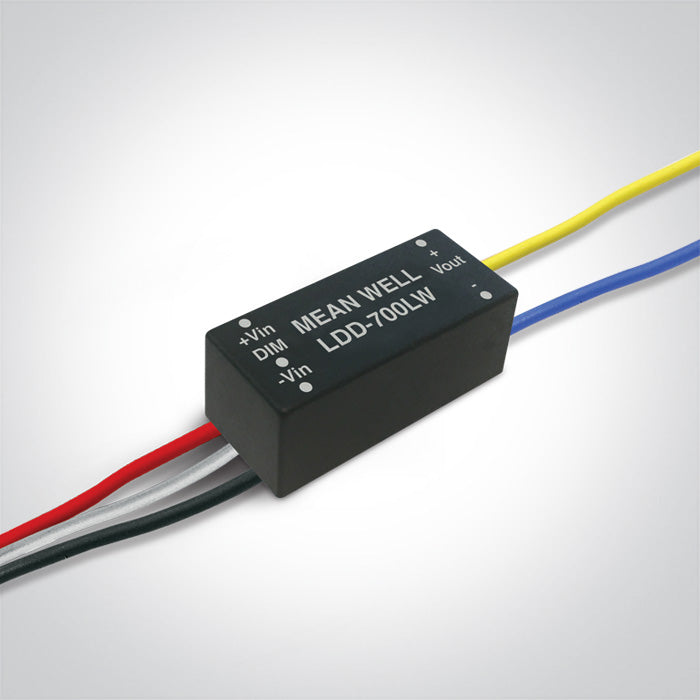

The ONE Light 89028AM is a constant current led driver and suitable for indoor applications. 9-36V 700mA constant current PWM dimmable driver ideal for marine applications. Requires 12-24V constant voltage driver. Complies with standard EN61347-1 and any other specific standards.
Key Features
- IP Rating: IP20
- Material: Plastic
- Warranty: 3 Years
Technical Specifications
| Brand | ONE Light |
|---|---|
| Manufacturer Part Number | 89028AM |
| Product Type | Constant Current LED Driver |
| Environment | Indoor |
| Power | 8,4W@12V 16,8W@24V 22,4W@36V |
| Input Voltage | 9-36V DC |
| IP Rating | IP20 |
| Material | Plastic |
| Dimensions | 32mm × 20mm × 12mm |
| Safety Class | III |
| Warranty | 3 Years |
| Barcode | 5291889062745 |
| Customs Tariff Code | 8504408390 |
Downloads & Technical Documents
Product Information
Technical values and document links are based on the manufacturer’s product data. Always verify installation requirements and applicable electrical standards before installation.
