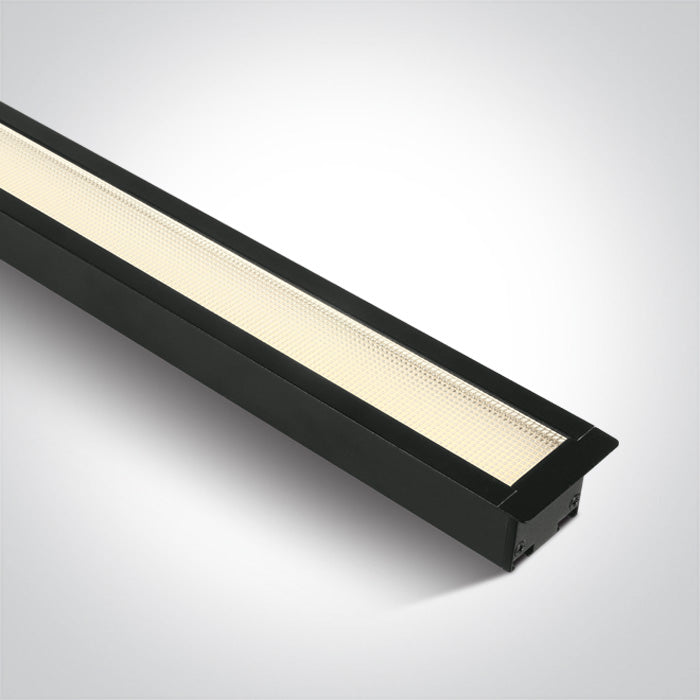

ONE Light LED Profile Diffuser Black 38145AR/B/W
Genuine ONE Light product. All items sold are brand new and delivered in the manufacturer’s original, unopened packaging.
Got questions? Need a Quotation?
Feel free to get in touch
Ask an expert!

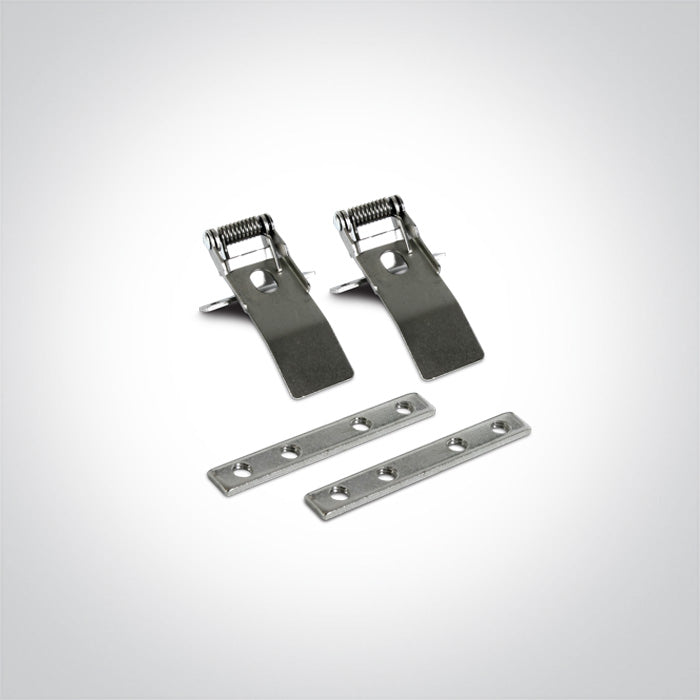

The ONE Light 38145AR/B/W is a recessed led profile designed for recessed ceiling installation and suitable for indoor applications. 40W UGR19 Recessed linear with diffuser, ideal for offices. Complete with 1000mA driver , 6pcs fixing clips, 4pcs connectors & 2pcs end cups. . Complies with standard EN60598-1 and any other specific standards.
Key Features
- Light Output: 3800lm
- Colour Temperature: 3000K
- CRI: 80
- IP Rating: IP20
- Material: Aluminium
- Warranty: 3 Years
Technical Specifications
| Brand | ONE Light |
|---|---|
| Manufacturer Part Number | 38145AR/B/W |
| Product Type | Recessed LED Profile |
| Mounting | Recessed Ceiling |
| Environment | Indoor |
| Power | 40W |
| Input Voltage | 220-240V |
| Light Output | 3800lm |
| Colour Temperature | 3000K |
| CRI | 80 |
| IP Rating | IP20 |
| Material | Aluminium |
| Diffuser Material | PC |
| Colour | Black |
| Dimensions | 1210mm × 50mm × 55mm |
| Cut-out | 1200mm × 37mm |
| Safety Class | I |
| Power Factor | 0,9 |
| Warranty | 3 Years |
| Barcode | 5291889067931 |
| Customs Tariff Code | 9405413990 |
Downloads & Technical Documents
- Product Datasheet
- Installation Manual
- Declaration / Certificate
- IES Photometric File
- Product Diagram
- Manufacturer Product Page
Product Information
Technical values and document links are based on the manufacturer’s product data. Always verify installation requirements and applicable electrical standards before installation.
- Type Lighting
Documentation Availability
Full technical documentation including detailed product datasheets, 3D STEP files, dimensional drawings, declarations of conformity and other certificates is available upon request.
