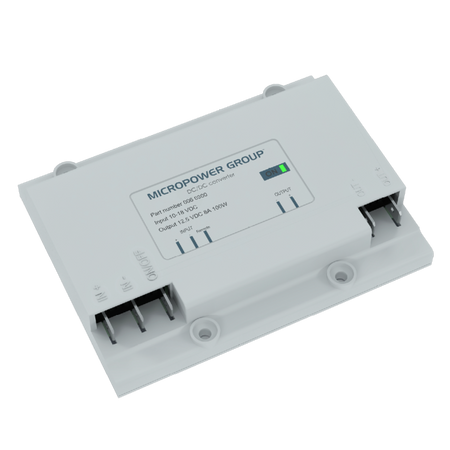

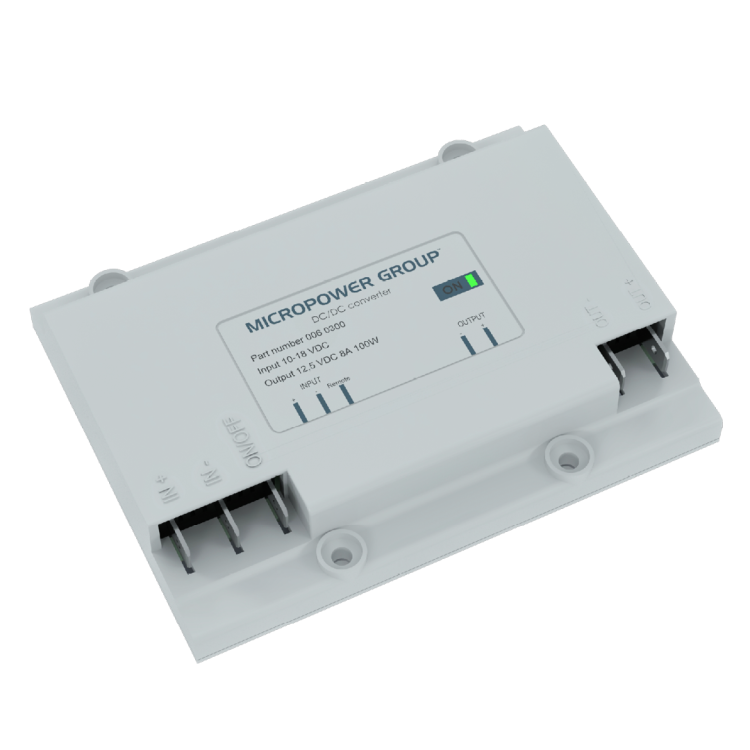

Micropower | DC/DC Converter Non Isolated 24-12 15A, MPN: 0060368

DC-DC Converter Non-Isolated 24 V to 12 V

This non-isolated DC-DC converter from Micropower Group is designed to convert a 24 V DC input into a stable 12 V DC output with high efficiency. It features modern switching technology for reliable, compact performance in industrial, automotive, and mobile applications.

Key Specifications

• Input Voltage: 18–36 V DC
• Output Voltage: 12.5 V nominal (≈13.7 V actual)
• Output Power: 200 W
• Efficiency: >96 %
• Ingress Protection: IP21 standard enclosure
• Connections: 6.3 mm Fast-on terminals
• Dimensions: 116 × 88 × 18 mm
• Weight: ~0.19 kg

Main Features

• High Efficiency: Designed with advanced switching technology for minimal power loss and cool operation.
• Non-Isolated Design: Direct step-down conversion where isolation is not required.
• Compact & Lightweight: Small form factor ideal for constrained spaces.
• Robust Protection: Internal safeguards including reverse polarity and short-circuit protection prevent damage from misuse.

Protection Functions

• Reverse Polarity Protection: Prevents damage from incorrect connection.
• Short-Circuit Protection: Enhances reliability under fault conditions.
• Overload Protection: Safeguards the converter during high load conditions.

Typical Applications

• Industrial automation power supplies
• Vehicle and mobile power systems
• Battery-powered equipment
• Telecommunications and remote power units
• Control panels and machine power conversion

Installation & Integration

• Fast-on terminal connections for straightforward installation.
• Compact size integrates easily into panels and mobile systems.
• Designed for reliable performance in industrial environments.

  Note: This non-isolated DC-DC converter provides efficient and dependable 12 V DC power from a 24 V DC source with high efficiency and built-in protections — suitable for a wide range of industrial and mobile applications.
