Micropower | DC/DC Converter Isolated, MPN: 0060317IP

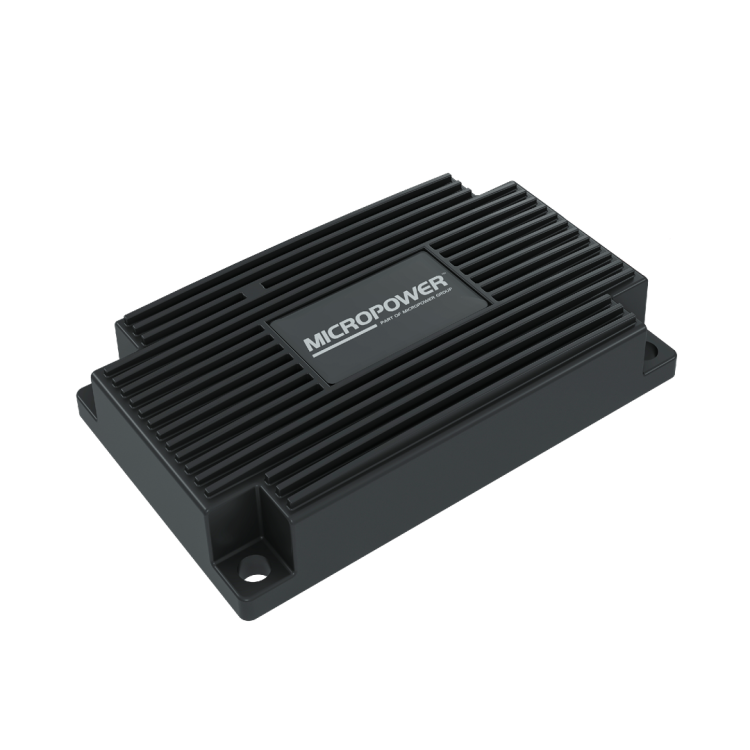

DC-DC Converter Isolated 9–36 V to 24 V (IP67)

This isolated DC-DC converter from Micropower Group is engineered to convert a wide 9–36 V DC input into a stable 24 V DC output with high efficiency and rugged protection. It features advanced switch-mode technology and a waterproof IP67 enclosure, delivering reliable performance in industrial, mobile, and outdoor environments.

Key Specifications

• Input Voltage: 9–36 V DC
• Output Voltage: 24 V DC nominal (≈24.5 V actual)
• Output Power: 200 W
• Efficiency: >96 %
• Isolation: Galvanically isolated between input and output
• Ingress Protection: IP67 waterproof enclosure
• Connections: Pre-wired cables (input & output)
• Dimensions: ~150 × 93 × 31 mm
• Weight: ~0.82 kg

Main Features

• Wide Input Range: Designed for flexible use with 9–36 V DC power sources.
• High Efficiency: Advanced switching design minimizes heat and energy loss.
• Galvanic Isolation: Electrical separation improves safety and noise immunity.
• Waterproof IP67 Housing: Fully sealed enclosure protects against dust and water ingress.
• Robust Construction: Rugged aluminum housing suited for harsh industrial environments.

Protection Functions

• Reverse Polarity Protection: Helps prevent damage from incorrect connection.
• Short-Circuit Protection: Enhances reliability under fault conditions.
• Overload Protection: Safeguards the converter under high load stress.

Typical Applications

• Industrial automation and control systems
• Mobile and vehicle power installations
• Battery-powered equipment and auxiliary systems
• Telecommunications power solutions
• Control panel and field device power conversion

Installation & Integration

• Pre-wired cable connections for fast and straightforward installation
• Suitable for panel, cabinet, and chassis mounting in rugged environments
• Reliable conversion for demanding industrial and mobile use
