PRODUCT DETAILS

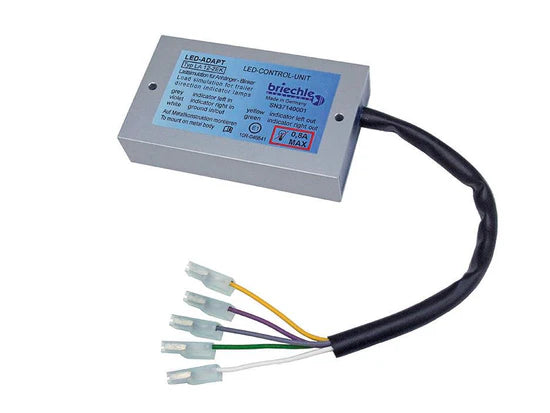

12 Volt resistor replacement load for the adaptation of light-emitting diode (LED) trailer lamps at vehicles with incandescent lamp monitoring. The failure of direction indicators is indicated.
***CAUTION***
LED-ADAPT must be mounted on a metal surface. The connection of any bulb on the direction indicator output is prohibited. The overcurrent protection may cut off not until after several minutes!
▪ Operating voltage: 12V nominal
▪ as ballast for LED direction indicators
▪ operates right and left turn signals
- Single cable version
- LED direction indicator monitoring
- Serves the direction indicators with replacement resistors
- Conditionally short circuit proof (about 100 cycles)
Operation voltage: | 12V nominal |
Output current: | max. 0.4A (direction) (Over current protection time delay 1...2000s!) |
Connection: | Hose line 5x1mm², ins. 6.3mm blade receptacle |
Load imitation: | 2x17W (direction) |
Cable length: | 0.25 m |
Temperature range: | -40...+75°C |
Electrical protection: | Overcurrent, overtemperature, reverse polarity |
Mechanical protection: | Entirely sealed (IP69K) |
Dimensions: | 120 x 70 x 25mm |
Mass: | app. 350g |
Failure monitor LEDs: | 20mA (direction) |
Mounting rule: | Cooling plate 8dm² (aluminum sheet 1.5mm thickness) or on chassis frame |
