Jaquet FTG 1088.00 Ex-KTV-B Speed Sensor (MPN: 343Z-05108) – ATEX Certified, 130 mm Wire, Terminal Block

Jaquet FTG 1088.00 Ex-KTV-B Speed Sensor (343Z-05108) – ATEX Approved

The DSD 1005.00 xTV (FTG 1088.xx) is designed with a dynamic behavior that ensures pulse generation even at a frequency as low as 5 Hz.

High-Precision Speed Detection in Hazardous Environments

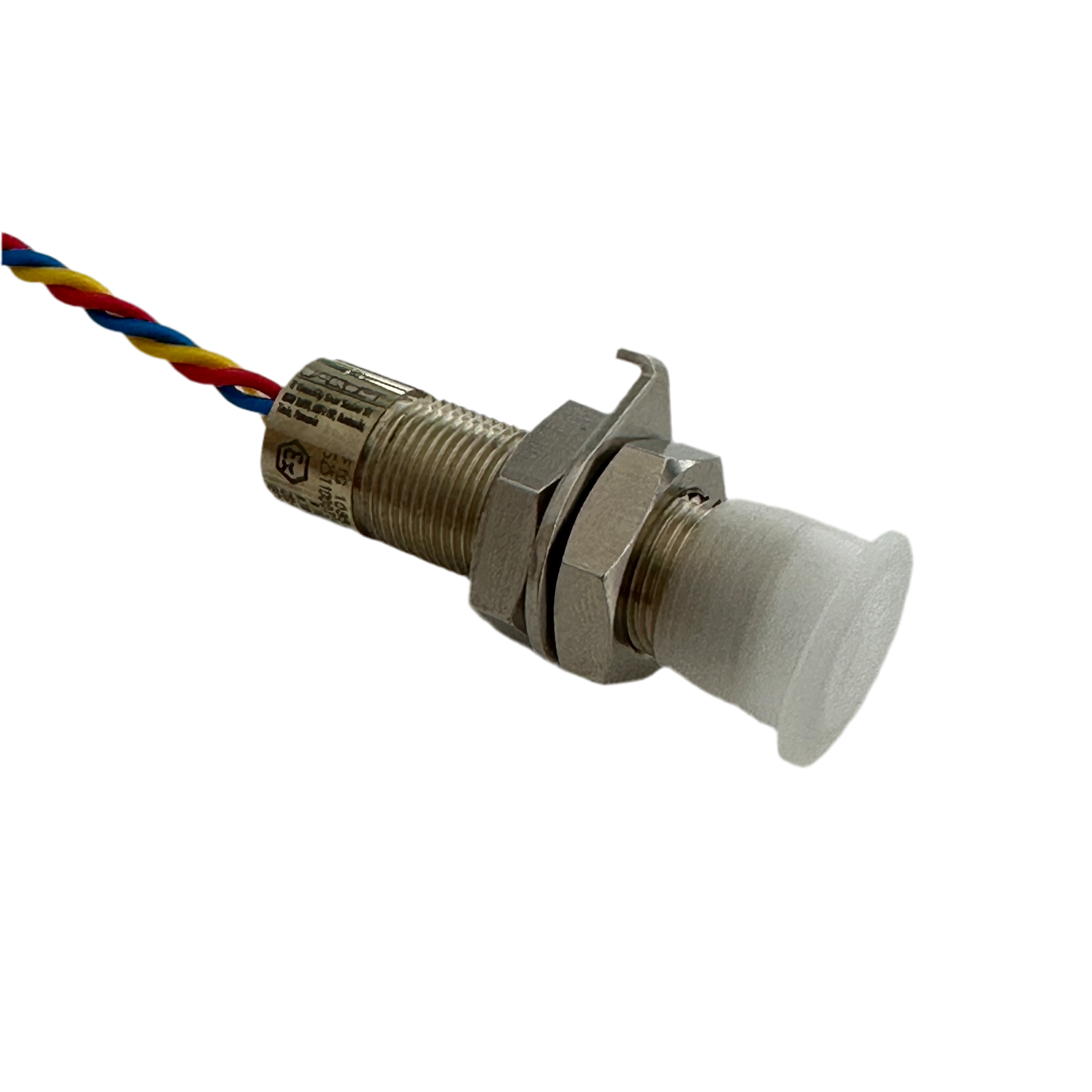

The Jaquet FTG 1088.00 Ex-KTV-B (MPN: 343Z-05108) is a ferrostat differential Hall-effect speed sensor engineered for reliable operation in explosive atmospheres (ATEX-certified). Designed for integration with ferromagnetic pole wheels, it delivers square wave outputs proportional to rotary speed—even down to 5 Hz.

Built with robust Argentan, also called German Silver (CuNi10Zn42Pb) housing and IP68/IP67 protection ratings, this sensor excels in demanding industrial conditions. It features:

• Explosion Protection: Certified for Zone 0/20 (II 1G / II 1D)

• Operating Range: 5 Hz to 20 kHz frequency detection

• Output Signal: Square wave with 1:1 mark-space ratio

• Power Supply: 5V ±10%, max 12V, reverse polarity protected

• Temperature Range: -40 to +125°C

• Vibration/Shock Resistance: 3g (4–100 Hz), 20g (11 ms)

The sensor includes a Teflon-insulated open wire connection and weighs just 20 grams. Ideal for industries requiring non-contact speed measurement in hazardous zones such as oil & gas, chemical, or heavy machinery sectors.

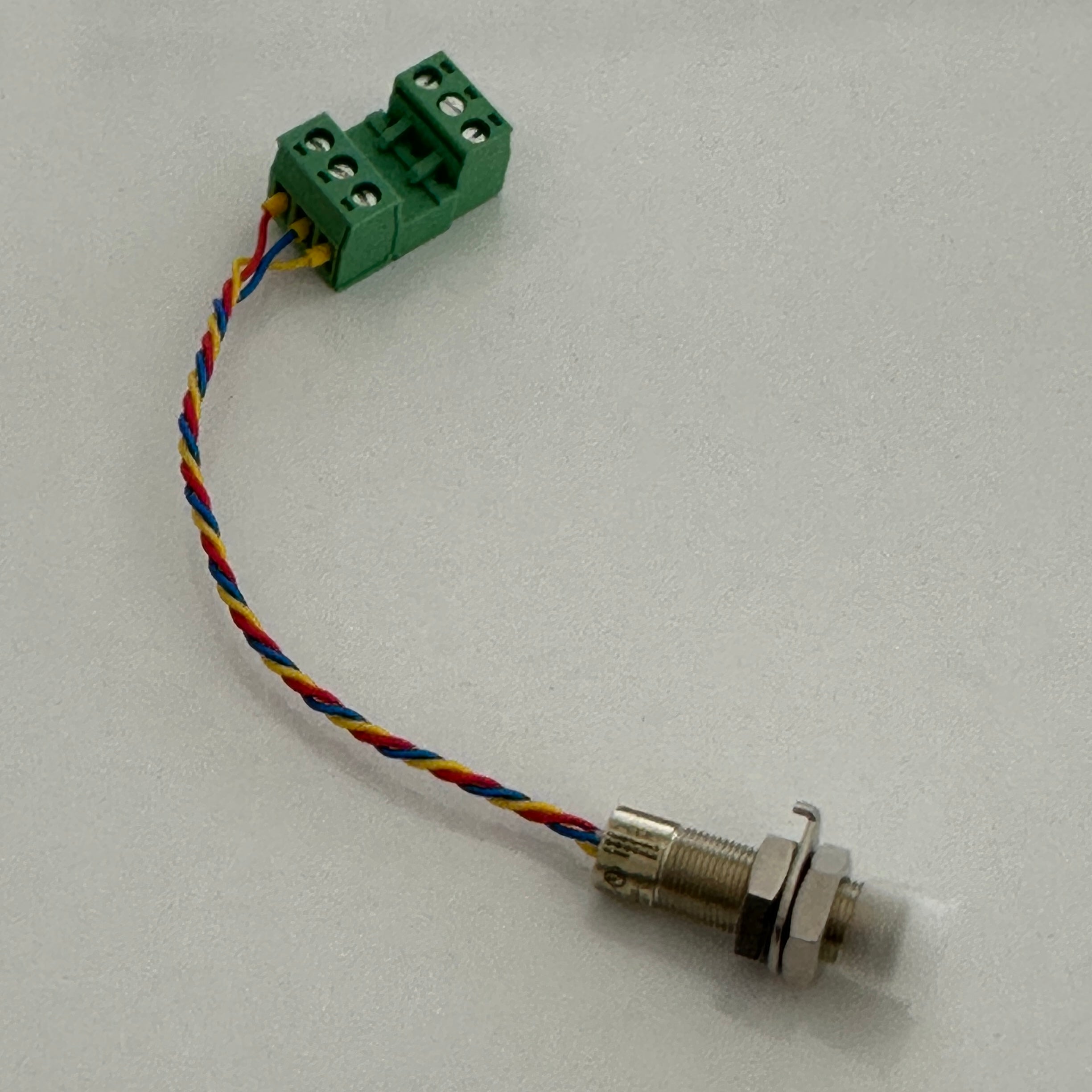

Cable/Lace Length: 0.130 m (130 mm)

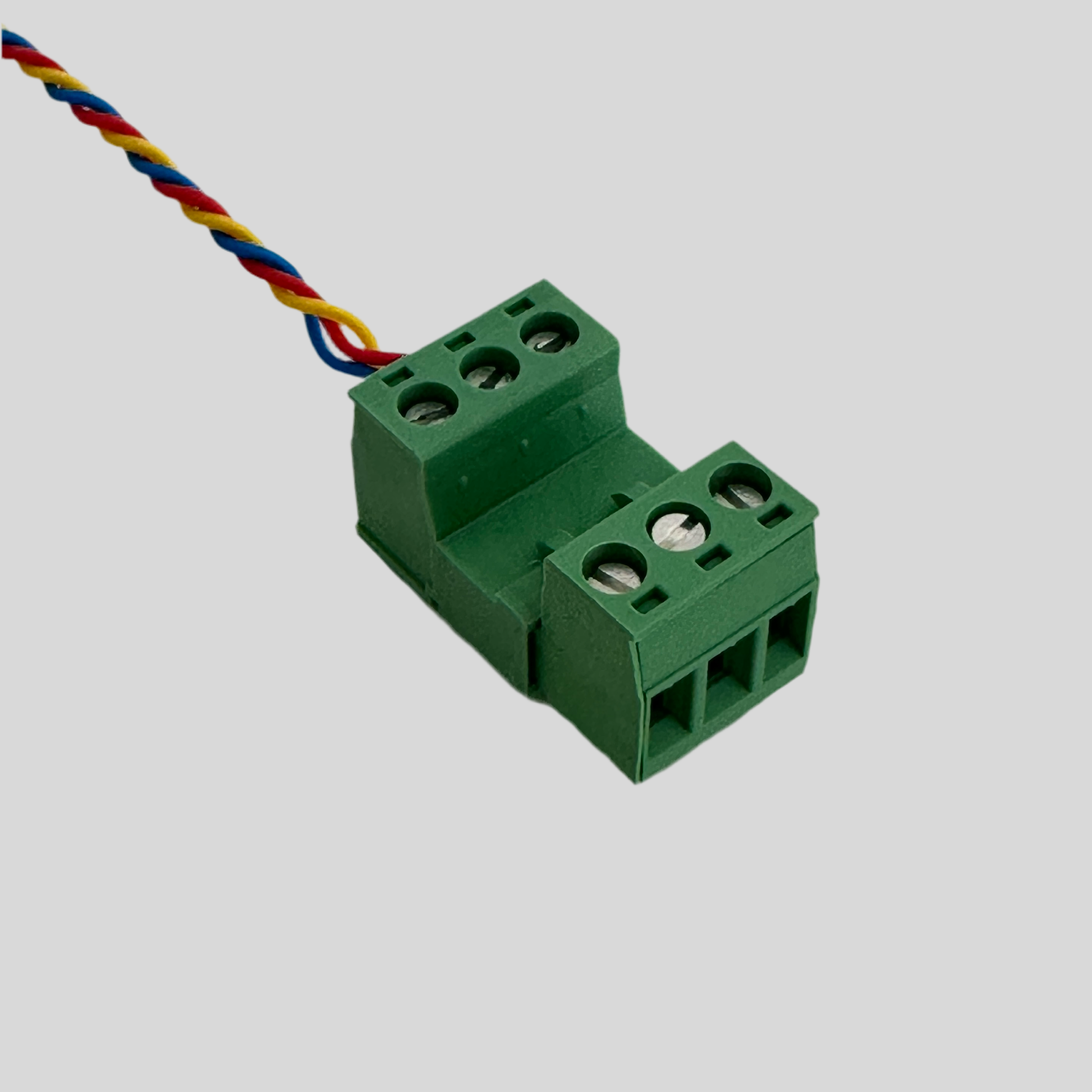

Connection: Terminal block
