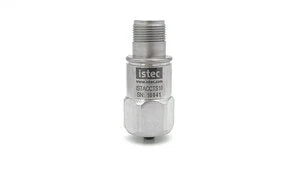

Istec ISTACCTS10 acceleration sensor

MPN: ISTACCTS10
(0)
€243,00
In stock
Ships within 2 hours
Original Istec product

This is a genuine Istec product. All items sold are brand new and delivered in the manufacturer’s original, unopened packaging.

Free shipping available
100% secure payments
Industry leading quality

Got questions? Need a Quotation?

Feel free to get in touch

Ask an expert!

Email +358 (0) 45 490 4545

ISTEC Industrial Accelerometer - ISTACCTS10

The ISTEC ISTACCTS10 is a high-reliability industrial accelerometer designed for precision vibration monitoring in demanding industrial applications. With an MTBF of 25 years, API 670 compliance, and ISO 9001 manufacturing, this top-exit sensor provides long-term dependable performance for critical machinery monitoring.

Technical Specifications

  • Sensitivity: 100 mV/g (±5% at 25°C)
  • Acceleration Range: 80 g peak (VDC > 25V)
  • Amplitude Nonlinearity: 1%
  • Frequency Response: 3 - 5,000 Hz (±5%) | 1 - 9,000 Hz (±10%) | 0.5 - 14,000 Hz (±3 dB)
  • Resonance Frequency: 30 kHz
  • Temperature Range: -55°C to +120°C
  • Transverse Sensitivity: Max 5% of axial
  • Weight: 90 grams
  • Case Material: 316L stainless steel

Electrical Characteristics

  • Power Requirement: 18-30 VDC voltage source or 2-10 mA current regulating diode
  • Output Impedance: Max 100 Ω
  • Bias Output Voltage: 12 VDC
  • Grounding: Case isolated, internally shielded
  • Electrical Noise (broadband 2.5 Hz to 25 kHz): 700 µg equivalent
  • Spectral Noise: 10 µg/√Hz @ 10 Hz | 5 µg/√Hz @ 100 Hz | 5 µg/√Hz @ 1,000 Hz

Connector & Mounting

  • Configuration: Top exit design
  • Mating Connector: MIL-C-5015 style 2-pin connector
  • Mounting: 1/4-28 UNF tapped hole
  • Recommended Cabling: J10 / J9T2A

Pin Configuration

  • Pin A: Power/Signal
  • Pin B: Common
  • Shell: Ground

Performance Features

  • MTBF: 25 years - exceptional long-term reliability
  • Vibration Limit: 500 g peak
  • Shock Limit: 5,000 g peak
  • Sealing: Hermetic
  • Sensing Element: PZT ceramic / shear design
  • Base Strain Sensitivity: Max 0.0002 g/μstrain
  • EMI Sensitivity: Max 70 µg/gauss equivalent

Applications

Ideal for continuous vibration monitoring in industrial environments including:

  • Power generation turbines and generators
  • Industrial pumps and compressors
  • Manufacturing equipment
  • HVAC systems
  • Motors and gearboxes
  • Process machinery
  • Predictive maintenance programs

What's Included

  • ISTACCTS10 Accelerometer
  • SF6 mounting stud
  • Level 2 calibration data certificate

Note: API 670 compliant. Manufactured in ISO 9001 certified facility. Specifications subject to change without notice due to continuous process improvement.
  • MPN ISTACCTS10

Documentation Availability
Full technical documentation including detailed product datasheets, 3D STEP files, dimensional drawings, declarations of conformity and other certificates is available upon request.

Please contact our technical sales department at sales@oemnordic.com.
Certain controlled documents are provided directly to customers and are not distributed publicly online.
