Istec ISTACCSS10 acceleration sensor

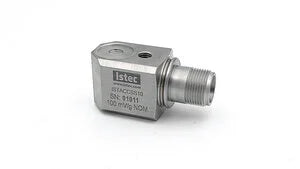

ISTEC Industrial Accelerometer - ISTACCSS10

The ISTEC ISTACCSS10 is a low-profile industrial accelerometer designed for precision vibration monitoring in demanding industrial applications. API 670 compliant and manufactured in an ISO 9001 facility, this side-exit sensor provides reliable performance for continuous machinery monitoring and predictive maintenance programs.

Technical Specifications

• Sensitivity: 100 mV/g (±5% at 25°C)
• Acceleration Range: 80 g peak (VDC > 25V)
• Amplitude Nonlinearity: 1%
• Frequency Response: 1 - 5,000 Hz (±10%) | 0.5 - 10,000 Hz (±3 dB)
• Resonance Frequency: 22 kHz
• Temperature Range: -55°C to +120°C
• Transverse Sensitivity: Max 5% of axial
• Weight: 145 grams
• Case Material: 316L stainless steel

Electrical Characteristics

• Power Requirement: 18-30 VDC voltage source or 2-10 mA current regulating diode
• Output Impedance: Max 100 Ω
• Bias Output Voltage: 12 VDC
• Grounding: Case isolated, internally shielded
• Electrical Noise (broadband 2.5 Hz to 25 kHz): 700 µg equivalent
• Spectral Noise: 10 µg/√Hz @ 10 Hz | 5 µg/√Hz @ 100 Hz | 5 µg/√Hz @ 1,000 Hz

Connector & Mounting

• Configuration: Side exit design
• Output Connector: 2-pin MIL-C-5015 style (MS connector)
• Mounting: 1/4-28 captive hex head screw with 0.046" diameter safety wire hole
• Recommended Cabling: J9T2A / J9F

Pin Configuration

• Pin A: Power/Signal
• Pin B: Common
• Shell: Ground

Performance Features

• Low Profile Design: Compact form factor for space-constrained installations
• Vibration Limit: 500 g peak
• Shock Limit: 5,000 g peak
• Sealing: Hermetic
• Sensing Element: PZT ceramic / shear design
• Base Strain Sensitivity: Max 0.002 g/μstrain
• EMI Sensitivity: Max 70 µg/gauss equivalent

Applications

Ideal for vibration monitoring in industrial environments including:

• Industrial pumps and compressors
• Motors and gearboxes
• Fans and blowers
• Manufacturing equipment
• Process machinery
• HVAC systems
• Predictive maintenance programs

What's Included

• ISTACCSS10 Accelerometer
• 1/4-28 captive hex head mounting screw
• Level 2 calibration data certificate
