Erich Jaeger 2P/24V NATO Plug (VG 96917) (35 mm2) (MPN: 251097)

MPN: 251097
(0)
€79,99
In stock
Ships within 2 hours
Original Erich Jaeger product

This is a genuine Erich Jaeger product. All items sold are brand new and delivered in the manufacturer’s original, unopened packaging.

Free shipping available
100% secure payments
Industry leading quality

Got questions? Need a Quotation?

Feel free to get in touch

Ask an expert!

Email +358 (0) 45 490 4545

251097 Erich Jaeger 2P/24V Plug (VG 96917) (35 mm2)

NATO PLUG 35mm2

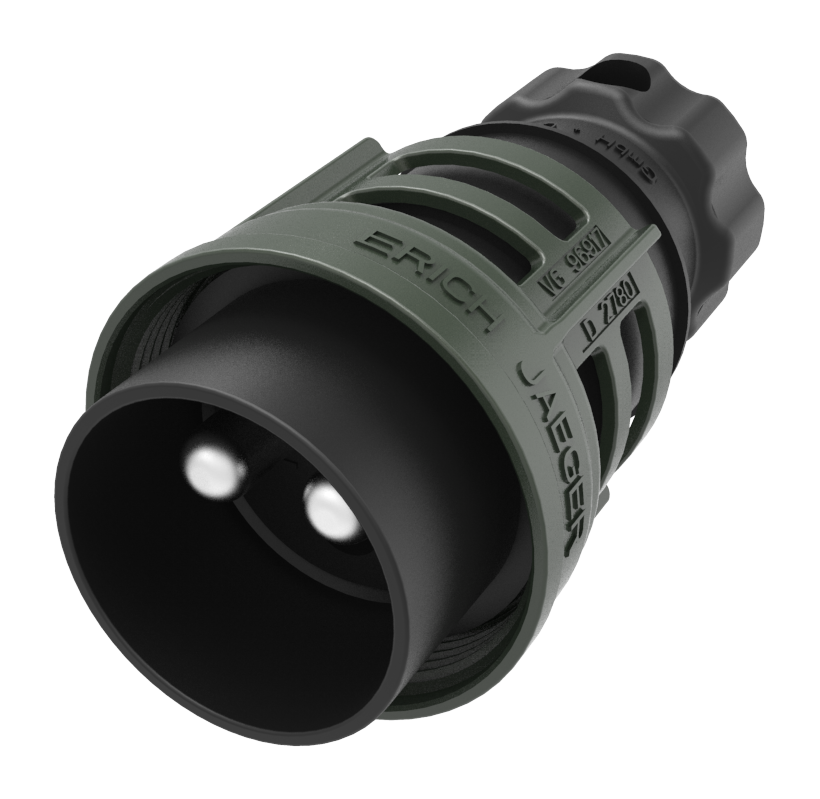

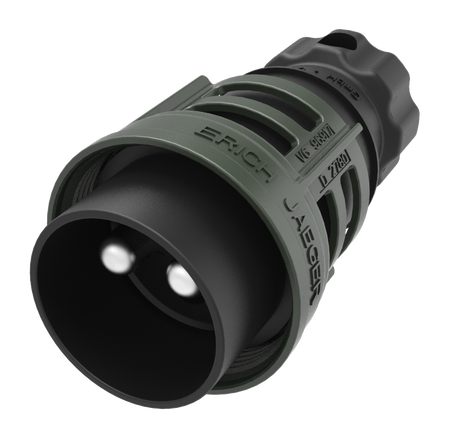

2P/24V(135A) Plug (VG 96917 E001A) by Erich Jaeger, designed for defense vehicles. It features a peak current of 245A, a rated current of 135A when operates at 24V. The plug is rubberized, includes a metal screw ring in bronze green, and uses silver contacts within a black, break-proof metal housing. It supports crimp or solder contact termination, is designed for a max wire cross-section of 35.00 mm², and offers IP 54, IP X4, and IP X7 protection standards

Find the 50mm2 version of this NATO PLUG -product here.

The 2P/24V(135A) Plug, while specifically designed for defense vehicles, is also frequently utilized in trucks and other heavy-duty vehicles, showcasing its versatility and durability in various demanding environments. This reflects the plug's ability to meet a wide range of operational needs across different vehicle types. For more details, it's best to consult the Erich Jaeger website directly.

Article Number: 251097
2P/24V(135A) Plug (VG 96917) "Nato Plug", Rubberized 35mm2

251097 Erich Jaeger technical data:

Product group: Plug
Industry: Defense vehicles
Voltage [in V]: 24
Rated current / permanent load [in A]: 135
Peak current / short-term load [in A]: 245
Standard: VG 96917
Special feature: with metal screw ring (bronze green)
Design/Version: rubberized
Housing material: break-proof metal
Housing color: black
Contact insert color: black
Cable outlet: cap nut
Contact version: contact pin
Contact surface: silver (Ag)
Contact termination: solder contact, crimp contact
Contact: for max. wire cross section [in mm²]: 35.00
Type of seal: sealing plug
No. of seal outlets: double
For cable diameter: 13, 0mm
Protection: IP X4, IP X7, IP 54
  • Type Defense Vehicle Connector
  • MPN 251097

Documentation Availability
Full technical documentation including detailed product datasheets, 3D STEP files, dimensional drawings, declarations of conformity and other certificates is available upon request.

Please contact our technical sales department at sales@oemnordic.com.
Certain controlled documents are provided directly to customers and are not distributed publicly online.
