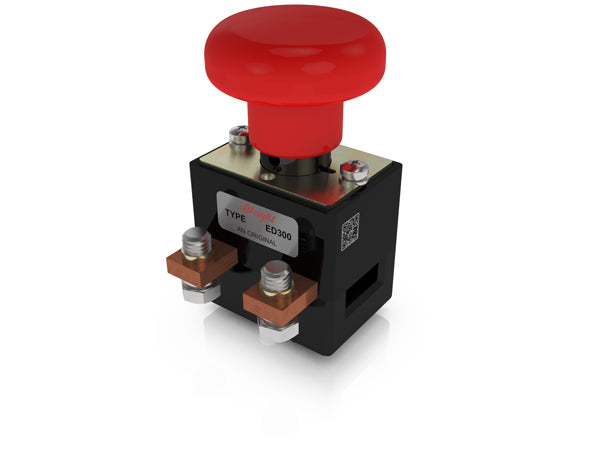

ED300B-5 Albright 300A Heavy Duty Emergency Stop Switch 96V Max.

MPN: ED300B-5
(0)
€79,30
Only 2 left
Low inventory - Prior to orders received. We also have incoming stock for this Albright part.
Original Albright product

This is a genuine Albright product. All items sold are brand new and delivered in the manufacturer’s original, unopened packaging.

Free shipping available
100% secure payments
Industry leading quality

Got questions? Need a Quotation?

Feel free to get in touch

Ask an expert!

Email +358 (0) 45 490 4545
The Albright ED300B range of switches has been designed to provide a rapid means of disconnecting batteries or other power supplies in the event of serious electrical faults. Whilst the switches are primarily intended for use with battery-powered vehicles they are also suitable for use with static power systems. All types are capable of safely rupturing full load battery currents in the event of an emergency.Rated: 300A, 12V, 24V, 48V, 72V and 96V DC Maximum.Single pole, single throw.Two M5 fixing screws at 48mm centers.Two M8 hex bolts for battery cable fixing.Suitable for voltages up to 96 volts dc, commonly used on 12 volts, 24 volts, 48 volts, and 72 volts dc electric vehicle systems.Weight: 500g

Magnetic Blowouts

This unit is fitted with magnetic blowouts, the polarity marked on the contact housing must be observed when connecting the main terminals.
  • MPN ED300B-5

Documentation Availability
Full technical documentation including detailed product datasheets, 3D STEP files, dimensional drawings, declarations of conformity and other certificates is available upon request.

Please contact our technical sales department at sales@oemnordic.com.
Certain controlled documents are provided directly to customers and are not distributed publicly online.
