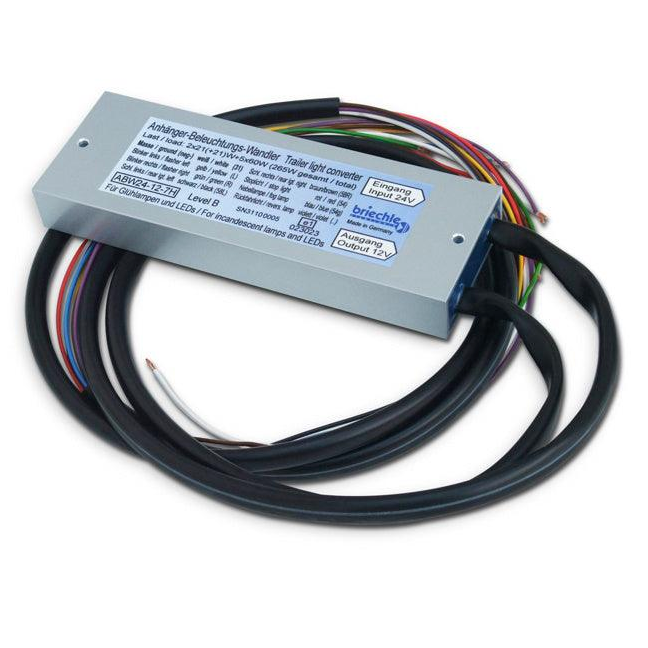

Trailer Light Converter ABW 24-12-7H

MPN: 10006
(0)
€244,00
In stock
Backorder (incoming stock)
Original product

This is a genuine Briechle Elektronik product. All items are brand new and delivered in the manufacturer’s original, unopened packaging.

Free shipping available
100% secure payments
Industry leading quality

Got questions? Need a Quotation?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +358 (0) 45 490 4545

Converter to supply the lights of 12V trailers at 24V car line, including reversing lamp. Incandescent lamps and suitable RMS compatible LEDs can be operated. Please ask the LED lamp manufacturer for RMS compatibility. For further details please see our handout “LED lamps in RMS operation”.

▪ IN: 24V / OUT: 12V
▪ Input: open cable end
▪ Output: open cable end
▪ with reversing lamp

Weight: 0.96 kg
  • quick and simple to connect:
    - at rear lamps of car-like equipment
    - parallel to 24V socket
    - instead of 24V socket
  • the function of the C2-indicator-lamps of all flasher units is guaranteed
  • works well with lamp-control-units
  • correct function of ABS-info-module is guaranteed
  • solid casting - waterproof and shockproof
  • internal short circuit and overload protection
  • power reserves in case of additional lamps at the trailer
Input voltage: 24V DC nominal (18 ... 33V)
Output voltage: RMS power equation for 12V (9 ... 15.5V)
Output power: 2 x 21W + 5 x 60W
Connection input: open cable end
Connection output: open cable end
Cable length input: app. 100cm
Cable length output: app. 120cm
Current without load: 0mA with open output (no current)
Efficiency: flasher unit c. 90%, other units c. 95%
Temperature range: -40 ... +75°C
Electrical protection: overload current (self-resetting) overtemperature (self-resetting)
Mechanical protection: entirely sealed
Dimensions: 200 x 65 x 25mm without cable outlet
Mass: app. 960g
Attention: for bulbs and RMS - LEDs only!
