TE / Jaquet Speed Sensor DSF 1410.00 SHV Ex-atex (5m) (MPN: 374Z-05254)
No se pudo cargar la disponibilidad para recoger
Current lead time is approximately weeks. We have incoming stock on the way for this item. You can reserve your quantity by placing a PRE-ORDER. We will contact you with the lead time after we receive your order and you have a chance to confirm or cancel order.

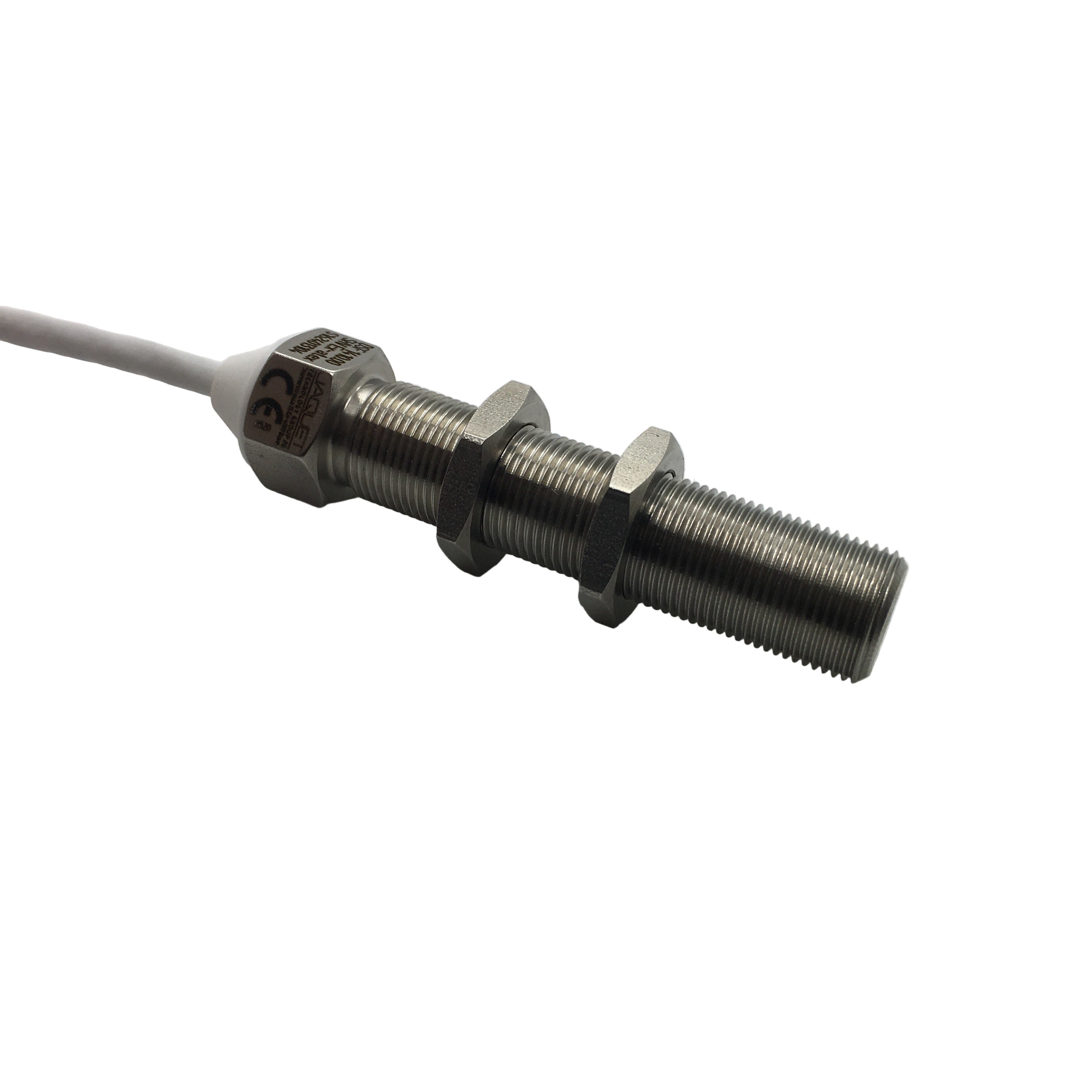

TE / Jaquet Speed Sensor — DSF 1410.00 SHV Ex-atex (5 m)
MPN: 374Z-05254
Manufacturer: TE Connectivity / Jaquet
Drawing number 111496F1
Hall-effect single-channel speed sensor for hazardous areas. Produces a square-wave frequency proportional to rotational speed when paired with a ferromagnetic pole wheel. Intrinsically safe, maintenance-free design for harsh environments (oil, grease, vibration).
- Hall-effect single channel, push-pull square-wave output
- Supply 8–28 VDC, max ripple 25 mVpp
- Frequency range: 0.05 Hz to 20 kHz
- Short-circuit and reverse-polarity protected
- Stainless steel housing (1.4305), hermetically sealed face
- Ingress protection: IP68 (head), IP67 (cable)
- Shock 20 g/20 ms; vibration 5 g (5–2000 Hz)
ATEX / IECEx
Gas: II 2 G Ex ia IIC T6 Gb
Dust: II 2 D Ex ia IIIC T155 °C Db (series also certified to T200 °C per supplement)
Compliance: EN 60079-0:2012, EN 60079-11:2012; EC Type Ex Certificate ZELM 03 ATEX 0124X (incl. supplements).
Notified body CE 2572 (PRIMARA).
Quick Specs
| Model | DSF 1410.00 SHV Ex-atex (5 m) |
| MPN | 374Z-05254 |
| Sensing | Hall-effect, single channel |
| Output | Push-pull square wave; DC-coupled; 25 mA max load; UHi ≥ US–4 V @ 25 mA; ULo < 2 V @ 25 mA |
| Supply | 8–28 VDC (25 mVpp ripple max) |
| Frequency | 0.05 Hz … 20 kHz |
| Thread | M14×1 |
| Torque (max) | 25 Nm for M14×1 |
| Cable | 5 m Teflon, 4×0.24 mm² (AWG24), screened; bend radius ≥60 mm |
| Ingress | IP68 (head) / IP67 (cable) |
| Housing | Stainless steel 1.4305; hermetically sealed face |
Pole Wheel & Air Gap Guidelines
Use a magnetically permeable toothed wheel (e.g., steel 1.0036). Min. tooth width 10 mm; side offset <0.2 mm; eccentricity <0.2 mm.
| Wheel Module | Allowed Air Gap |
|---|---|
| m = 1 | 0.2–1.0 mm |
| m = 2 | 0.2–2.5 mm |
| m = 3 | 0.2–3.5 mm |
| m ≥ 4 | 0.2–4.5 mm |
Electrical Characteristics
- Supply: 8–28 VDC; ripple ≤25 mVpp
- Current (no load): ≤15 mA
- Output: push-pull, DC-coupled to 0 V
- Load current: ≤25 mA
- UHi ≥ US–4 V @ 25 mA; ULo < 2 V @ 25 mA
- EMC: per 2014/30/EU, IEC 61000-6-2
Mechanical & Environmental
- Thread: M14×1; max tightening torque 25 Nm
- Housing: stainless steel 1.4305; hermetically sealed face
- Ingress: IP68 (head), IP67 (cable)
- Insulation: electronics/case/screen galvanically separated (500 V, 50 Hz, 1 min)
- Shock: 20 g (20 ms half-sine); vibration: 5 g (5–2000 Hz)
Cable & Wiring (SHV)
- 5 m Teflon cable, 4×0.24 mm² (AWG24), screened; Ø ≈ 4.0 mm; min. bend radius 60 mm
- Screen isolated from housing
- Brown conductor not used
Temperature Ranges (per certification)
- Ambient (Gas), Type 1 cable versions: −20 °C … limit per Table 1 for T-class (T1–T6)
- Ambient (Dust): −20 °C … +100 °C (T155 °C); series also certified to T200 °C per supplement
Observe EC Type Ex certificate ZELM 03 ATEX 0124X and supplements for power-limited barriers and ambient limits.
Typical Applications
Turbomachinery, rotating equipment in oil & gas, industrial drives, and process control systems in hazardous areas.
- Mount sensor face centered over pole wheel; keep ≥3 mm from wheel edge under all operating conditions.
- Route sensor cable away from high-power conductors and large machines to reduce EMI.
- Set the smallest practical air gap that prevents contact during operation.
Note: Product details summarized from TE Connectivity / Jaquet documentation for DSF xx10.xx xHV Ex-atex series (incl. specific listing for DSF 1410.00 SHV Ex-atex 5 m). Always verify suitability with the official datasheet and certificate for your application.
