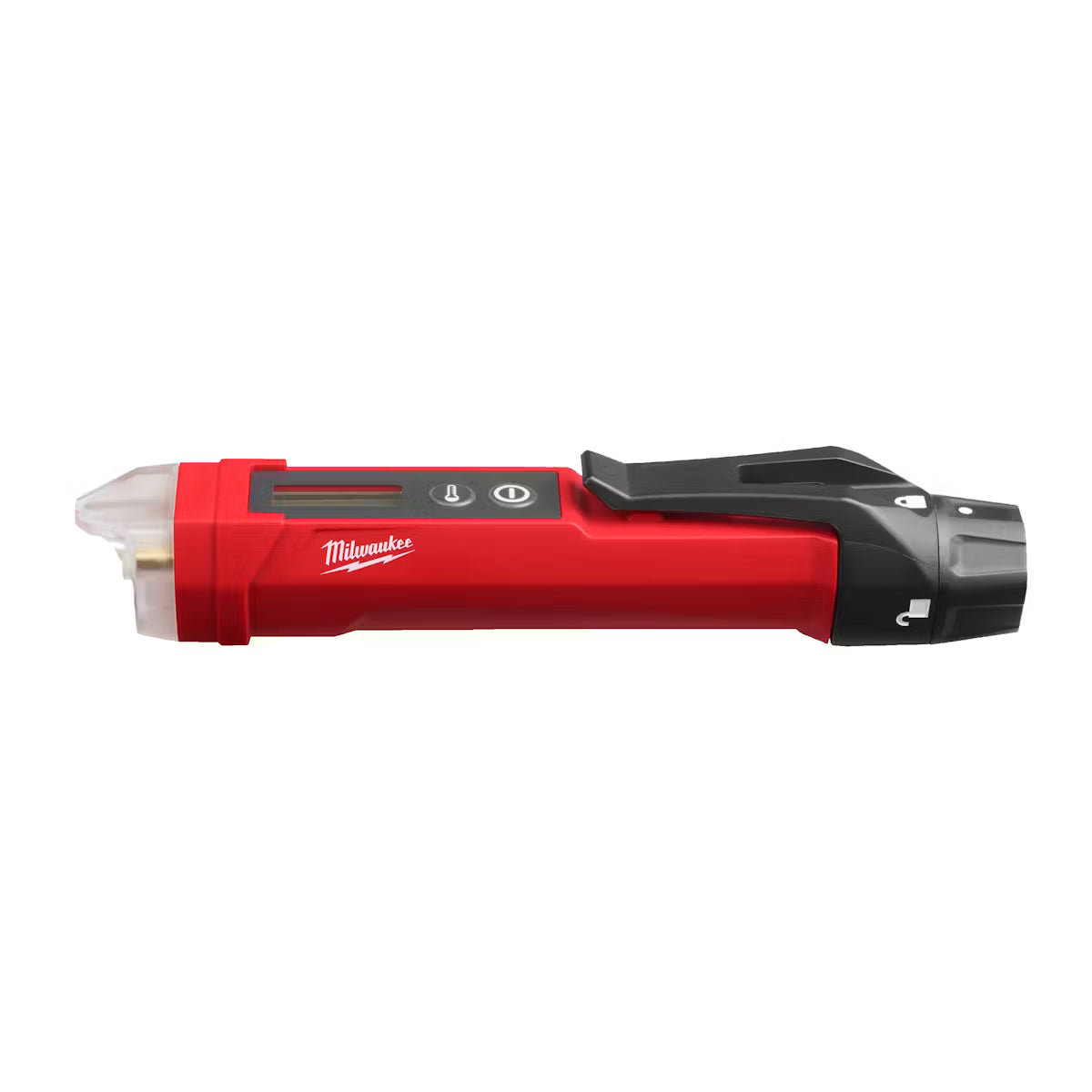

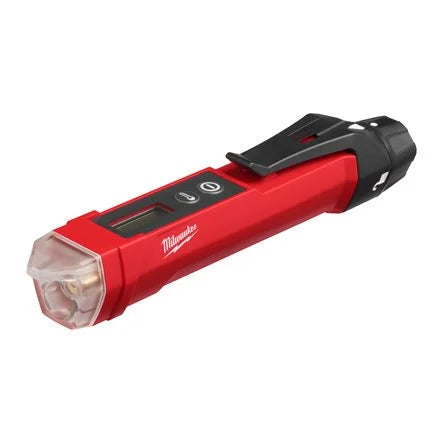

Milwaukee 2225-20 Non-Contact Voltage Detector with Laser Thermometer
Non-contact AC voltage detector / infrared laser thermometer / 12–1000V AC / −30°C to 250°C
Professional two-in-one testing instrument combining non-contact AC voltage detection with an infrared laser thermometer. Designed for fast electrical checks and contact-free surface temperature measurements.
Milwaukee 2225-20
Article number: 4932498859
Key features
- Wide 12–1000V AC voltage detection range
- CAT IV 1000V electrical safety rating
- Integrated infrared laser thermometer
- Temperature measurement range from −30°C to 250°C
- Bright backlit LCD temperature display
- Temperature display in °C or °F
- 0.1° display resolution
- IP54-rated construction
Voltage indication
- Highly visible red LED indicates the presence of voltage
- Audible beeping signal supports voltage detection
- Green indicator light confirms that the detector is switched on
- Non-contact detection allows quick preliminary electrical checks
- Integrated pocket clip for convenient storage
- Dedicated on/off button
Product details
| Specification | Details |
|---|---|
| Product | Non-contact voltage detector with laser thermometer |
| Model | 2225-20 |
| Milwaukee article number | 4932498859 |
| Voltage detection range | 12–1000V AC |
| Safety rating | CAT IV 1000V |
| Temperature measurement range | −30°C to 250°C |
| Temperature units | °C or °F |
| Display resolution | 0.1° |
| Display | Bright backlit LCD |
| Voltage indication | Red LED and audible beeping signal |
| Power indication | Green indicator light |
| Protection rating | IP54 |
| Storage | Integrated pocket clip |
| Brand | Milwaukee |
Description
The Milwaukee 2225-20 combines two commonly required inspection functions in one compact instrument. It detects AC voltage without requiring direct contact with an exposed conductor and provides both visual and audible indications when voltage is detected.
The integrated infrared laser thermometer measures surface temperatures from −30°C to 250°C. The measured temperature is shown on a bright backlit LCD display in either degrees Celsius or Fahrenheit, with a display resolution of 0.1°.
Its CAT IV 1000V safety rating, IP54 protection and integrated pocket clip make the detector suitable for electricians, HVAC technicians, maintenance professionals and industrial service applications.
Typical applications

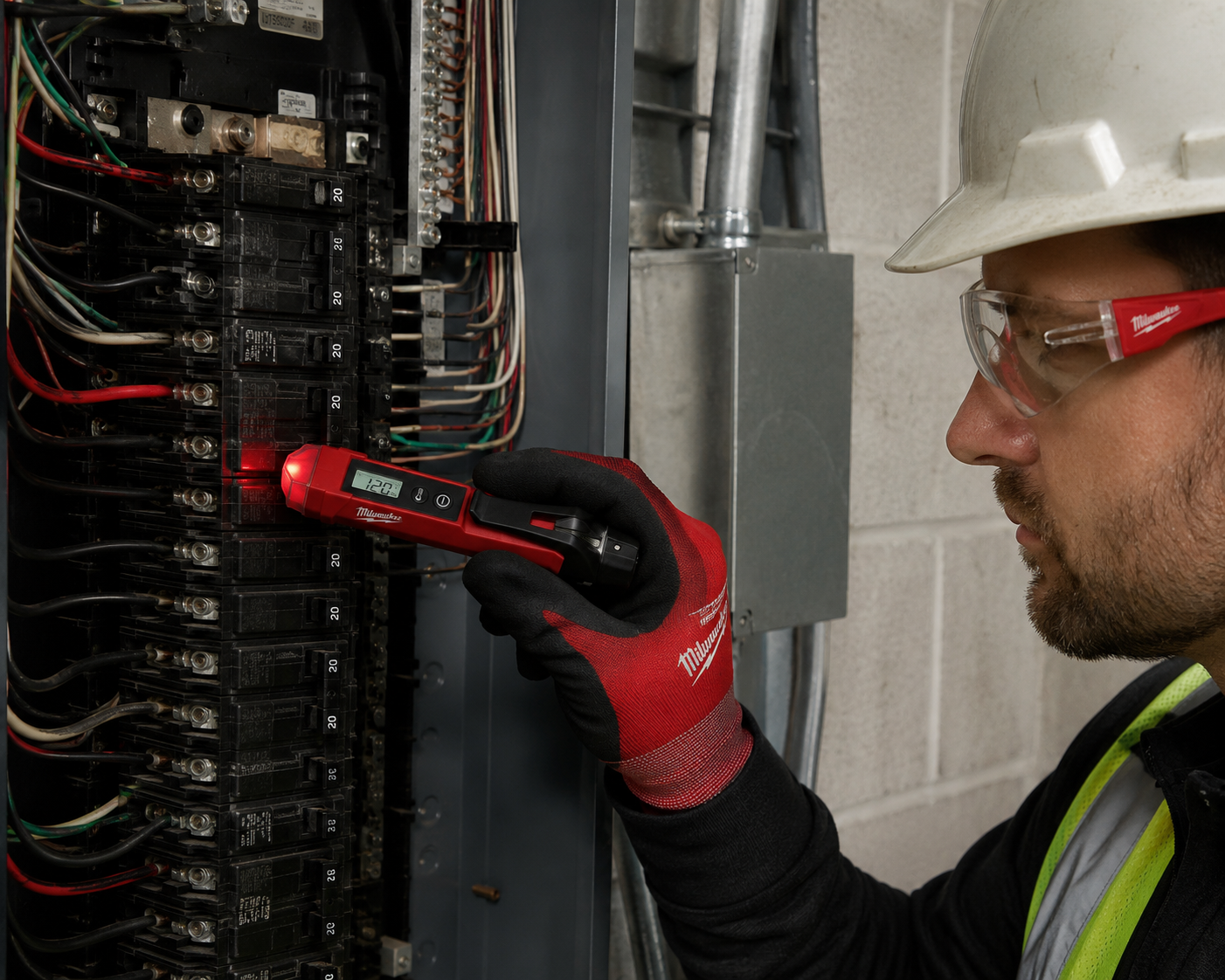

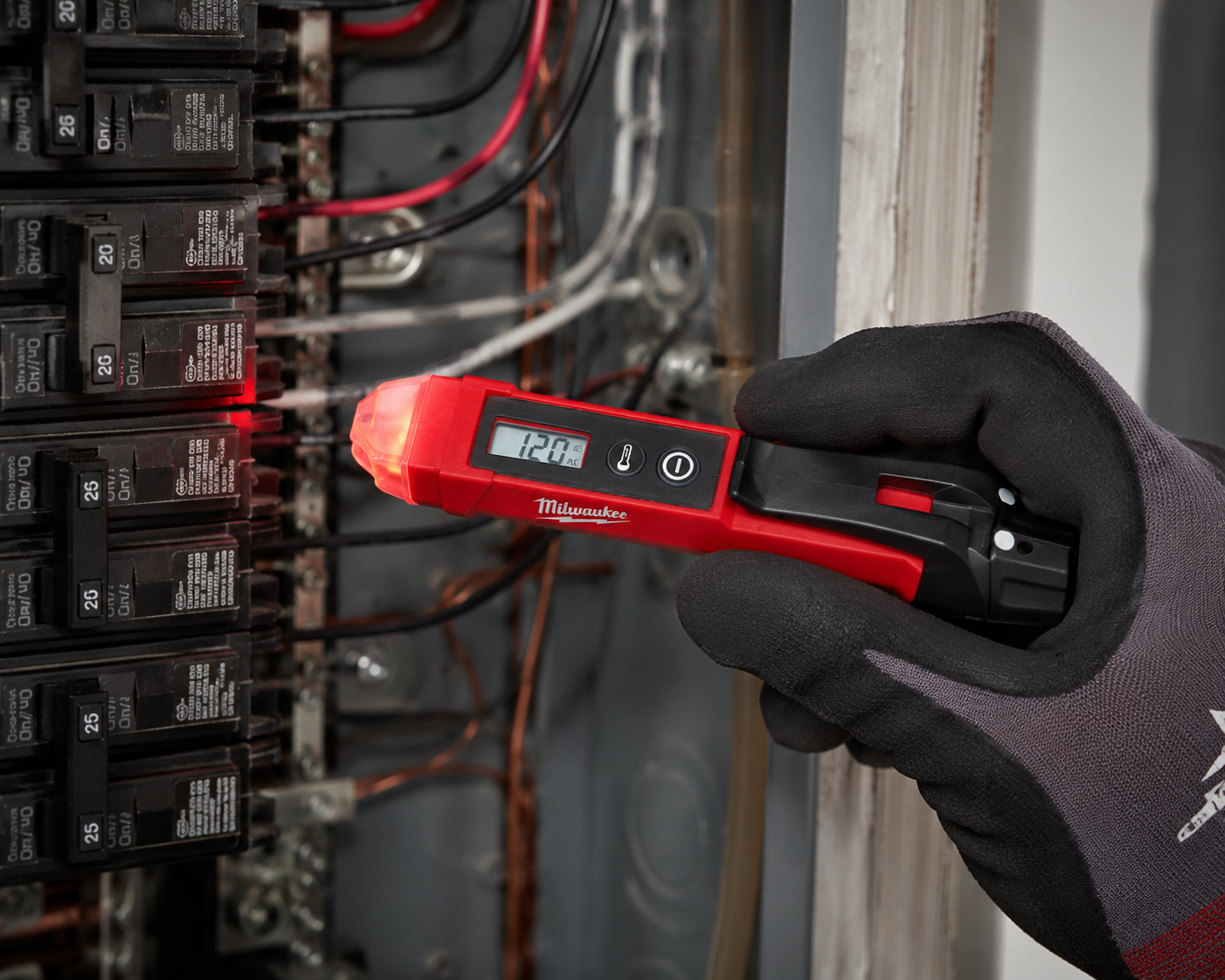

- Detection of live AC wiring and electrical components
- Electrical installation and maintenance work

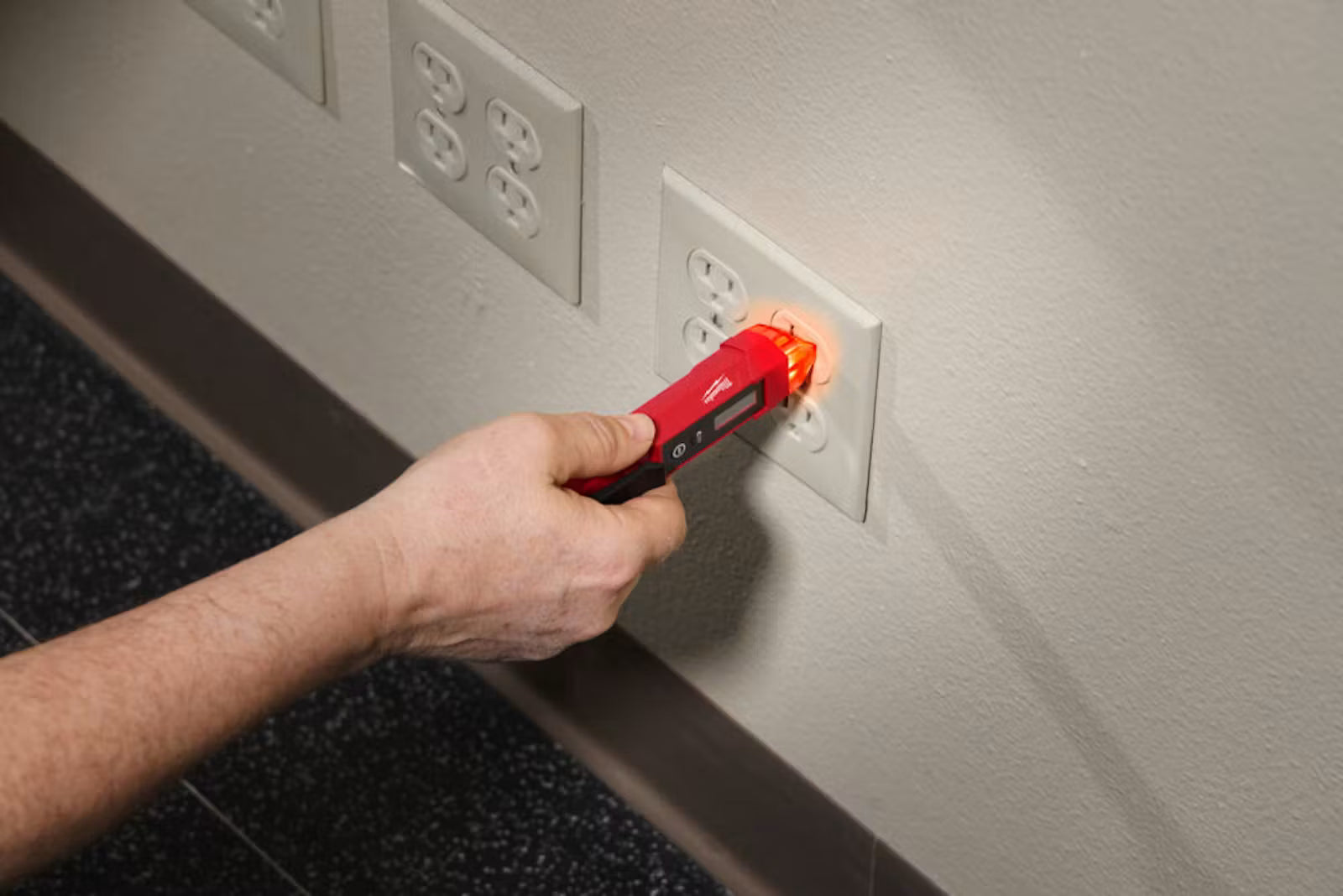

- Inspection of switches, sockets, cables and control panels
- Contact-free temperature checks

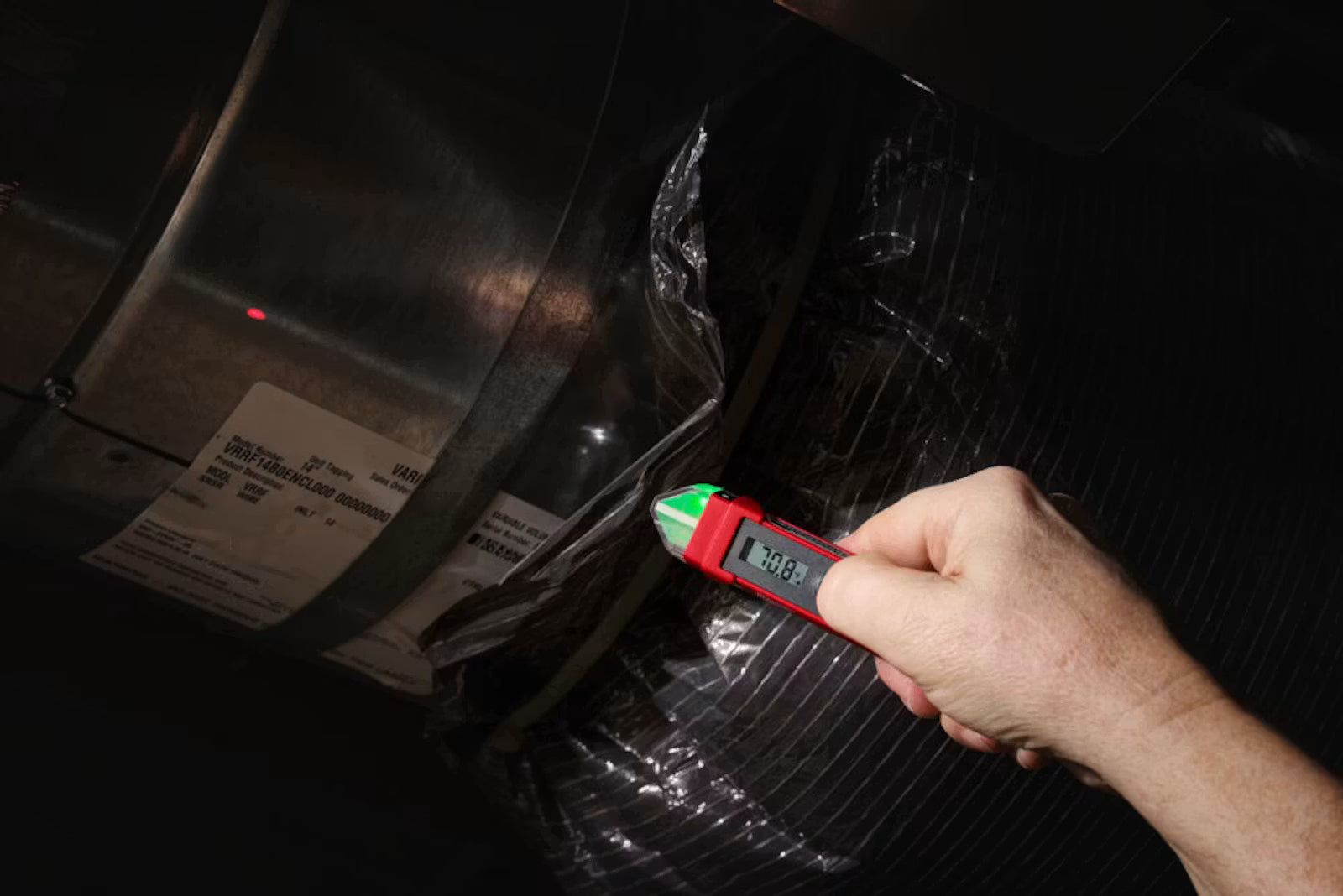

- HVAC system inspection and troubleshooting
- Checking motors, pumps, heating components and electrical equipment
Milwaukee professional testing equipment
The 2225-20 provides non-contact voltage detection and infrared temperature measurement in one compact, IP54-rated instrument.
