Selecting the best motor reversing solenoid for bow- or stern thrusters involves understanding the specific requirements of your marine application and the unique features that solenoids from reputable manufacturers like Albright offer. Albright is a well-known name in the industry, producing contactors that are used by many leading thruster manufacturers, including those for Side-Power systems.
Understanding Motor Reversing Solenoids
Motor reversing solenoids, like those produced by Albright, are critical for the operation of bow and stern thrusters. These devices allow for the directional control of the thruster, enabling the vessel to maneuver sideways, which is particularly useful during docking or navigating tight spaces.
Features of Albright Solenoids

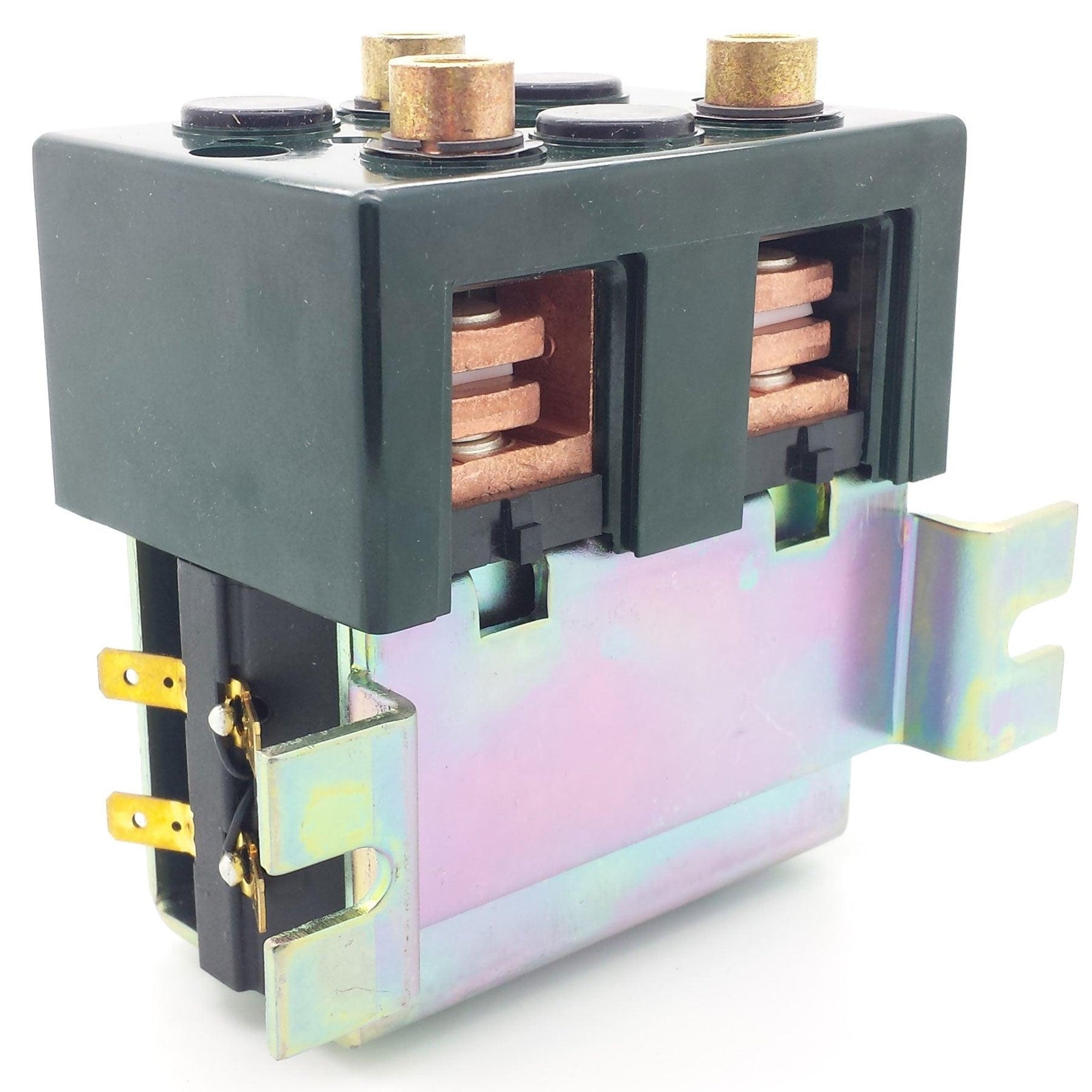

Albright's DC182 series is an example of a motor reversing contactor designed for direct current loads, specifically for motors used in applications such as electric vehicles and, by extension, marine thrusters. The DC182 model is noted for its double breaking main contacts with silver alloy contact tips, which are resistant to welding, hard-wearing, and offer excellent conductivity. A built-in failsafe ensures that if both coils are energized simultaneously, the contact arrangement remains open, preventing potential damage.
Technical Specifications of Motor Reversing
For bow or stern thruster applications, understanding the technical specifications of a solenoid is crucial. The DC182, for instance, supports a thermal current rating of 150A and offers various intermittent current ratings based on duty cycle, ranging from 275A at 30% duty to 180A at 70% duty. Its mechanical durability is over 5,000,000 cycles, and coil voltages are available from 6 to 240V, accommodating a wide range of marine applications.
Selection Criteria
When selecting a motor reversing solenoid for your thruster, consider the following criteria:
- Current Rating and Voltage Compatibility: Ensure the solenoid matches the electrical characteristics of your thruster system.
- Durability and Reliability: High-cycle durability is essential for marine applications where reliability is critical.
- Safety Features: Built-in failsafe mechanisms are vital for preventing damage in case of wiring or operational errors.
- Flexibility and Compatibility: Look for solenoids that offer various configurations and compatibility with modern electronic control systems, as seen in Albright's offerings.
The Role of Thrusters in Maneuverability
Bow and stern thrusters play a significant role in enhancing a vessel's maneuverability, especially during docking or navigating through tight spaces. These thrusters provide additional propulsion, allowing for lateral movement without the need to change the boat's orientation. They are especially useful in challenging conditions such as strong winds or currents, making docking and undocking smoother and safer.
Final Words
Choosing the right motor reversing solenoid involves considering the technical requirements of your thruster system and the operational conditions it will face. Albright's solenoids, with their robust design, reliability, and compatibility with various electrical systems, make them an excellent choice for marine applications. Ensuring that the solenoid you select matches the specifications of your thruster will contribute significantly to your vessel's performance and maneuverability.
For more detailed technical information on Albright's solenoids and their application in marine thruster systems, visiting Albright International's website or consulting with a marine electrical systems expert can provide valuable insights.
